Denon AVR-X1200W Service Manual

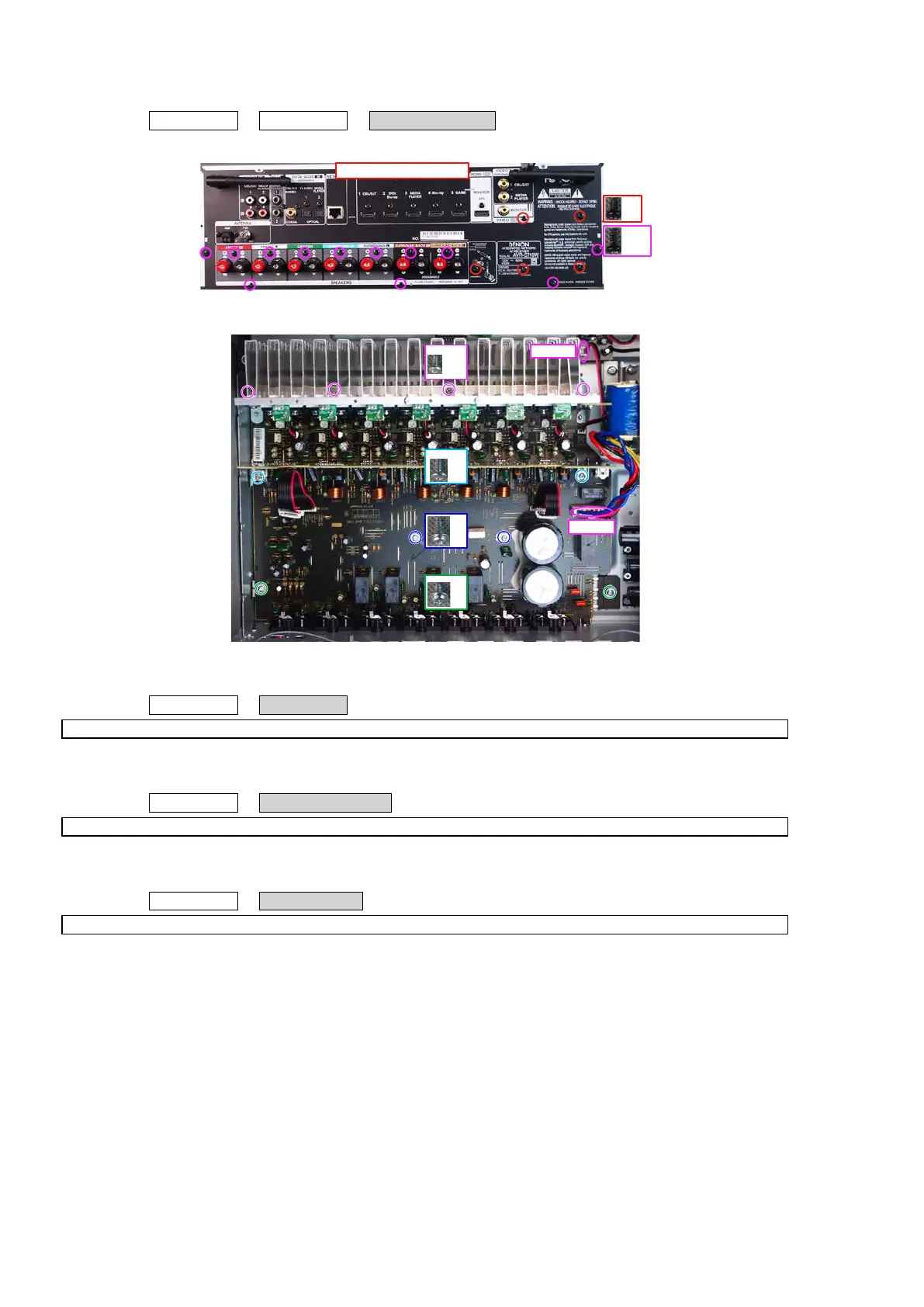

3. RADIATOR ASSY
Proceeding : TOP COVER
→
DIGITAL PCB
→
RADIATOR ASSY
(1) Remove the screws.
(2) Remove the screws.
4. POWER PCB
Proceeding : TOP COVER
→
POWER PCB
See "EXPLODED VIEW" for instructions on removing the POWER PCB.
5. REGULATOR PCB
Proceeding : TOP COVER
→
REGULATOR PCB
See "EXPLODED VIEW" for instructions on removing the REGULATOR PCB.
6. TRANS POWER
Proceeding : TOP COVER
→
TRANS POWER
See "EXPLODED VIEW" for instructions on removing the transformer (TRANS).
Shooting direction: A
x5
x12
x2
x2
x2
x4
CN502
CN104
18

Denon AVR-X1200W Specifications

General

HDMI in	6
AC (power) in	Yes
Composite video in	2
USB ports quantity	1
Digital audio coaxial in	0
Receiver type	-
Audio output channels	7.2 channels
Total Harmonic Distortion (THD)	1 %
Power output per channel (20-20KHz@8 Ohm)	145 W
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Internet radio services supported	Spotify
Product color	Black
Audio decoders	DTS-HD Master Audio
Apple docking compatibility	iPhone, iPod
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	430 W
Connectivity technology	Wired
Optical drive included	No
Audio formats supported	AIFF, ALAC, FLAC

Weight and Dimensions

Depth	339 mm
Width	434 mm
Height	151 mm
Weight	8500 g
