Denon AVR-X1200W Service Manual

SPECIAL MODE

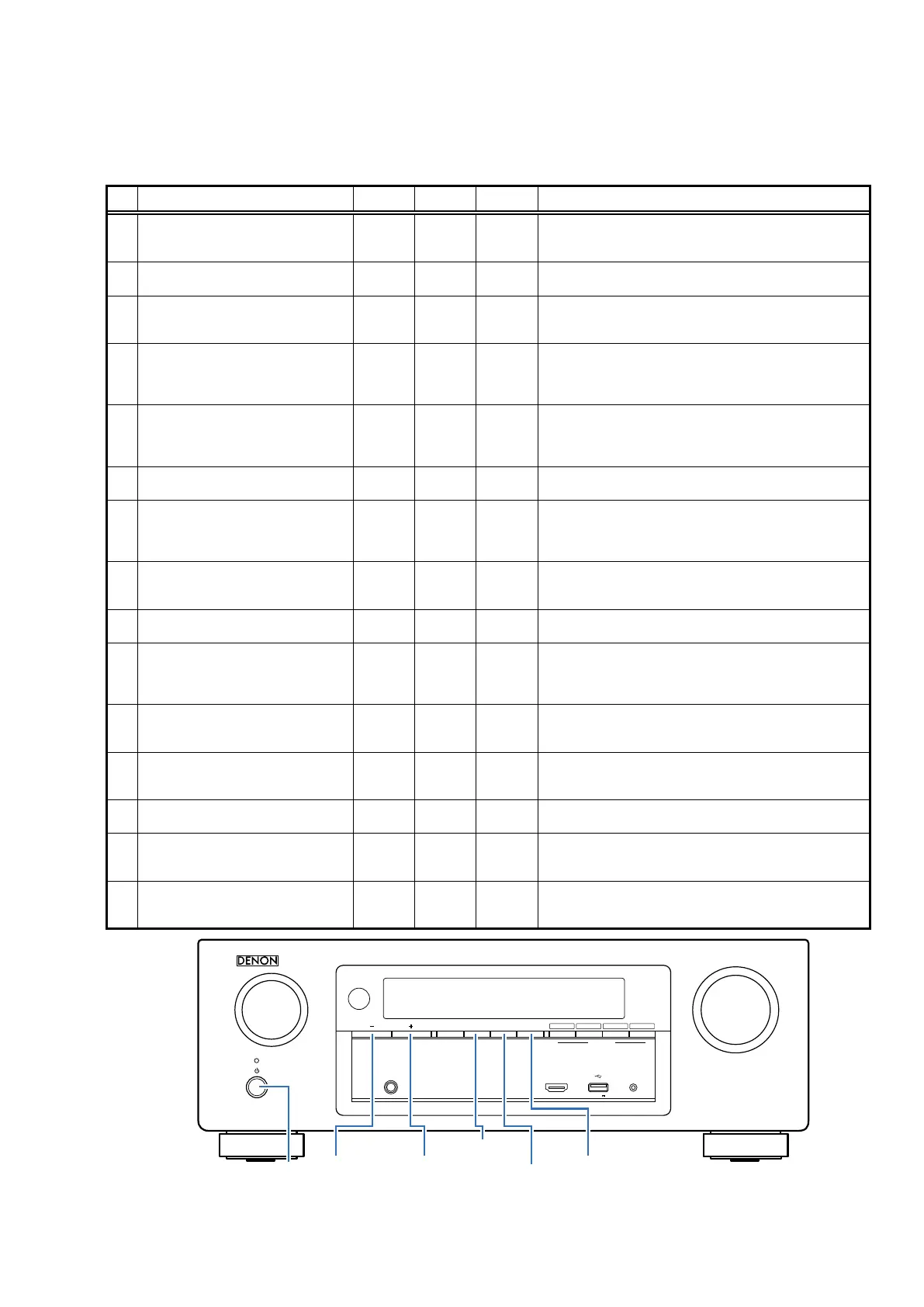

Special mode setting button (for AVR-X1200W)
b
No. 1 - 6, 9 : While holding down buttons "
A
", "
B
" and "
C
" simultaneously, press the power button to turn on the power.
b
No. 7, 8 : While the power is on, hold down buttons "
A
" and "
B
" for at least 3 seconds .
b
No. 10 : While holding down buttons "
A
" and "
B
" simultaneously, insert the AC plug into the wall outlet to turn on the power.
No. Mode Button A Button B Button C Descriptions
1
Version Display
(u-COM / DSP Error Display)
DIMMER STATUS -
Displays the version of rmware such as the main rmware or DSP.
Errors that have occurred are displayed.
(See page 21)
2
Selecting the Mode for Service-related
ZONE2
SOURCE
DIMMER STATUS
This is a display for turning on each service-related mode.
Service-related modes: No. 2-1 - No. 2-5
2-1
Protection history display mode
TUNER
PRESET CH
+
- -
Displays the protection occurrence history.
(See page 44)
2-2
Check the Video/Audio path Mode ↑ - -
This is a special mode for service conrmation used during repair
work to simplify the conrmation work for the Audio channel /
video channel.
(See page 27)
2-3
Remote ID Setup Mode ↑ - -
If there are multiple DENON AV receivers in the same area, this
mode prevents other AV receivers from being operated concur-
rently with this device.
(See page 48)
2-4
TUNER STEP Mode
(E3 and E2 model only)
↑ - -
Enables reception STEP of the ANALOG TUNER to be changed.
(See page 47)
2-5
Operation Info Mode ↑ - -
Displays the accumulated operating time of the unit, the number
of times the power was switched on, and the number of occur-
rences of each protection.
(See page 46)
3
User Initialization Mode
TUNER
PRESET CH
-
TUNER
PRESET CH
+
-
Initializes backup data.
(Settings for the Installer Setup are not initialized.)
4
Factory Initialization Mode
ZONE2
SOURCE
DIMMER -
Initializes backup data.
(The settings for the Installer Setup is also initialized.)
5
PANEL / REMOTE LOCK Selection Mode
TUNER
PRESET CH
+
ZONE2
SOURCE
-
Start this unit in the PANEL/REMOTE LOCK selection mode so that
PANEL LOCK and Remote Lock can be switched between ON and
OFF.
(See page 25)
6
Protection Pass Mode
TUNER
PRESET CH
+
ZONE2
SOURCE
STATUS
Enables the power to be turned on when protection detection is
disabled.
(See page 49)
7
CY920 Reboot Mode
TUNER
PRESET CH
-
TUNER
PRESET CH
+
- The CY920 is restarted after CY920 hang up.
8
CY920 Initialization Mode
ZONE2
SOURCE
DIMMER -
Enter this mode only after replacing Flash for CX870 / CY920 and
rewriting the rmware.
9
USB Update Mode
ZONE2
SOURCE
TUNER
PRESET CH
-
- Switches this unit to USB Update mode.
10
Forced USB All Device Write Mode
TUNER
PRESET CH
+
STATUS -
Mode used when this unit cannot be recovered.
Forcibly switches this unit to USB update mode.
(See page 56)
QUICK SELECT
MASTER VOLUME
SOURCE SELECT
ZONE2
ON/OFF
ZONE2
SOURCE
DIMMER STATUS
TUNER
PRESET CH
DVD/Blu-ray ONLINE
MEDIA
PLAYER
CBL/SAT
321 4
PHONES
SETUP MICAUX - HDMI
5V/1A
DIMMER
STATUSTUNER
PRESET CH -
TUNER
PRESET CH +
X
ZONE2
SOURCE
19

Denon AVR-X1200W Specifications

General

HDMI in	6
AC (power) in	Yes
Composite video in	2
USB ports quantity	1
Digital audio coaxial in	0
Receiver type	-
Audio output channels	7.2 channels
Total Harmonic Distortion (THD)	1 %
Power output per channel (20-20KHz@8 Ohm)	145 W
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Internet radio services supported	Spotify
Product color	Black
Audio decoders	DTS-HD Master Audio
Apple docking compatibility	iPhone, iPod
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	430 W
Connectivity technology	Wired
Optical drive included	No
Audio formats supported	AIFF, ALAC, FLAC

Weight and Dimensions

Depth	339 mm
Width	434 mm
Height	151 mm
Weight	8500 g
