119
S-302

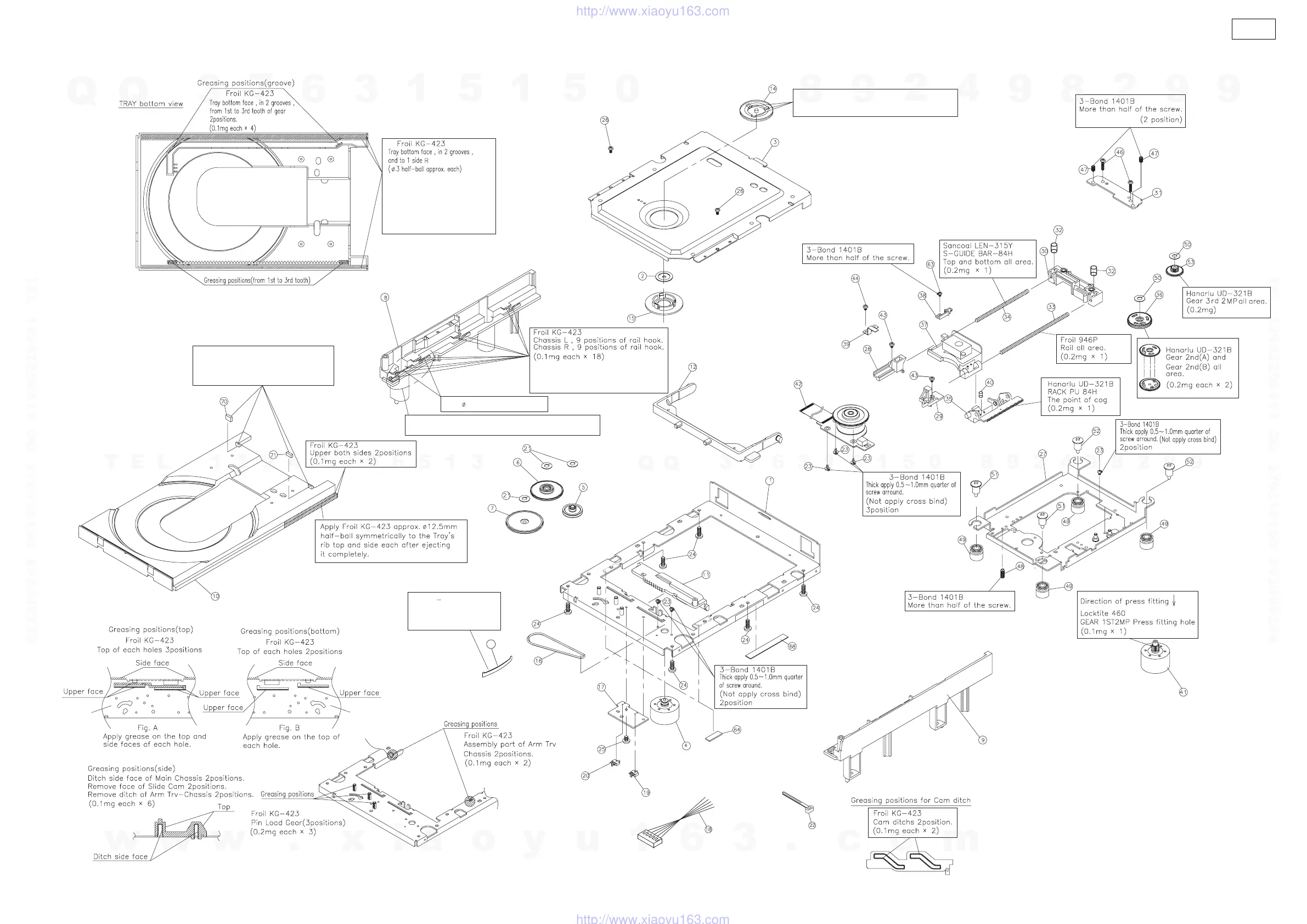

POINTS OF GREASING
54
Apply 12.5mm half-ball approx.
Main
Chassis
Main Chassis
*As for greasing to the R rail
groove and groove's side edge,
apply grease to the outer face
"intentionally".
(Not only running a brush into
the groove, use it with pressing
to the outer face consciously.)
After attaching cushions, apply Cemedine
575 to the joint parts of the cushions and
tabs (both sides, left and right) from the tab's
back side. (0.1mg each x 4)
After applying , check especially for the front 3 ribs outer side
in order not to be insufficient greasing.
When greasing each rib, apply to
the rib's left, right, and top faces
properly with running a brush on both sides
of the rib.
With Cemedine 575, glue 3 joint parts of Clamper-L
and H hooks. (0.05mg each x 3)
Froil KG 423
After attaching plate spring,
apply to the TRAY side of
the plate spring.
