Denon S-302 Service Manual

AUDIO SIGNAL LINE
PROGRESSIVE VIDEO SIGNAL LINE
INTERLACE VIDEO SIGNAL LINE
87654321
A
B
C
D
E
F

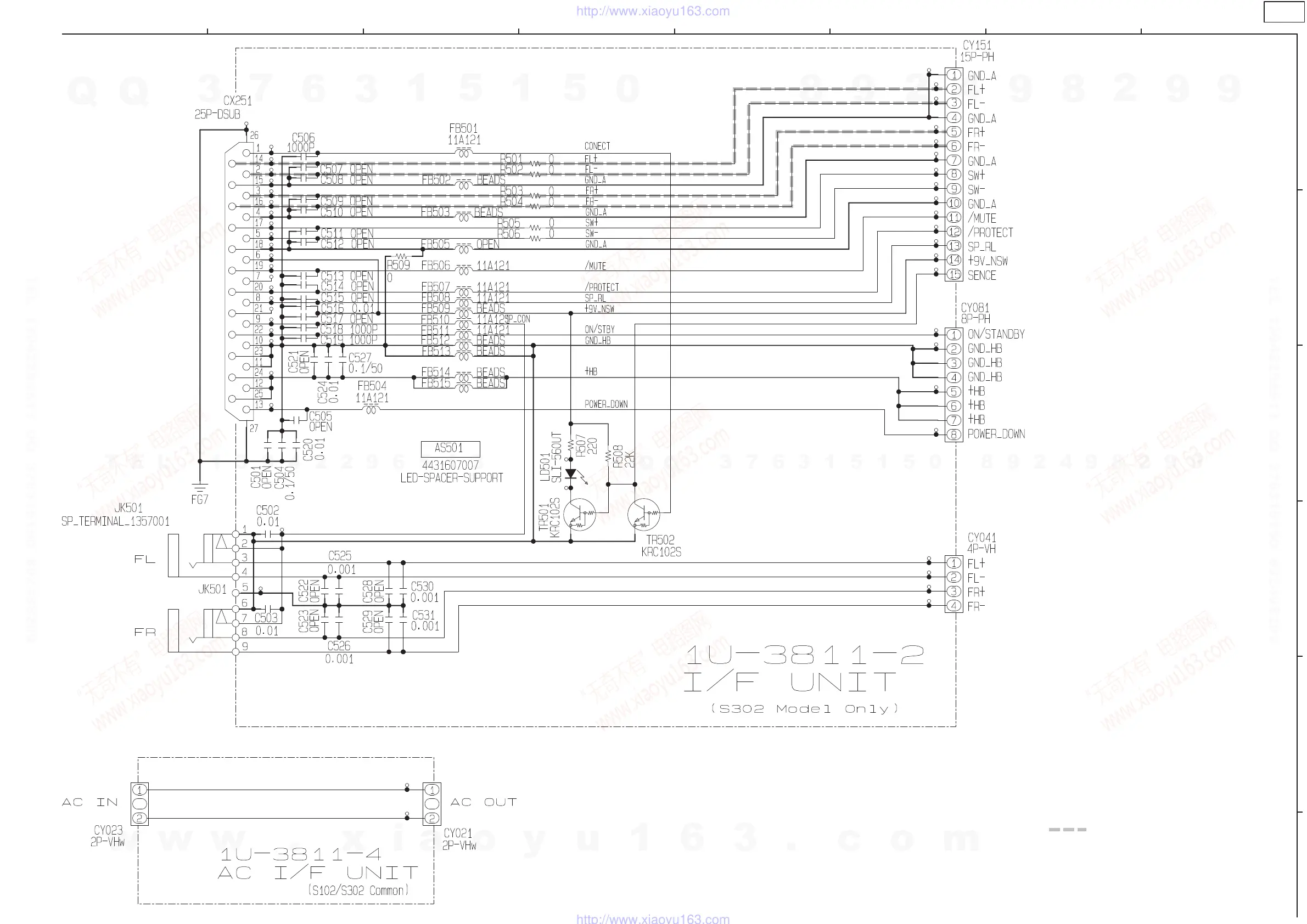

SCHEMATIC DIAGRAMS (20/25)
SIGNAL LINE
SCHEMATIC DIAGRAMS (20/25)
1U-3811-2 I/F UNIT
1U-3811-4 AC I/F UNIT
S-302
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

Denon S-302 Specifications

General

Audio decoders	-
RMS rated power	100 W
Audio output channels	5.1 channels
Audio formats supported	AAC, MP3, WAV, WMA
Signal-to-Noise Ratio (SNR)	92 dB
Satellite speaker frequency range	80 - 90000 Hz
Subwoofer type	Active subwoofer
Wireless subwoofer	No
FM radio	Yes
AM band range	52 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
Disc loading type	Tray
Disc types supported	CD-R, CD-RW, DVD+R, DVD+RW, DVD-R, DVD-RW
Playback disc formats	CD audio, CD video, VCD
Number of optical discs	1 discs
Optical disc player type	DVD player
HDMI in	0
USB version	2.0
Audio (L/R) in	3
Composite video in	2
Digital audio coaxial in	1
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	78 W
Product color	Black
Apple docking compatibility	iPod
Video formats supported	DIVX

Weight and Dimensions

Subwoofer weight	11200 g
Subwoofer dimensions (WxDxH)	212 x 406 x 378 mm
Front speaker dimensions (WxDxH)	131 x 76 x 335 mm
