Denon S-302 Service Manual

126
S-302
ADV-S302

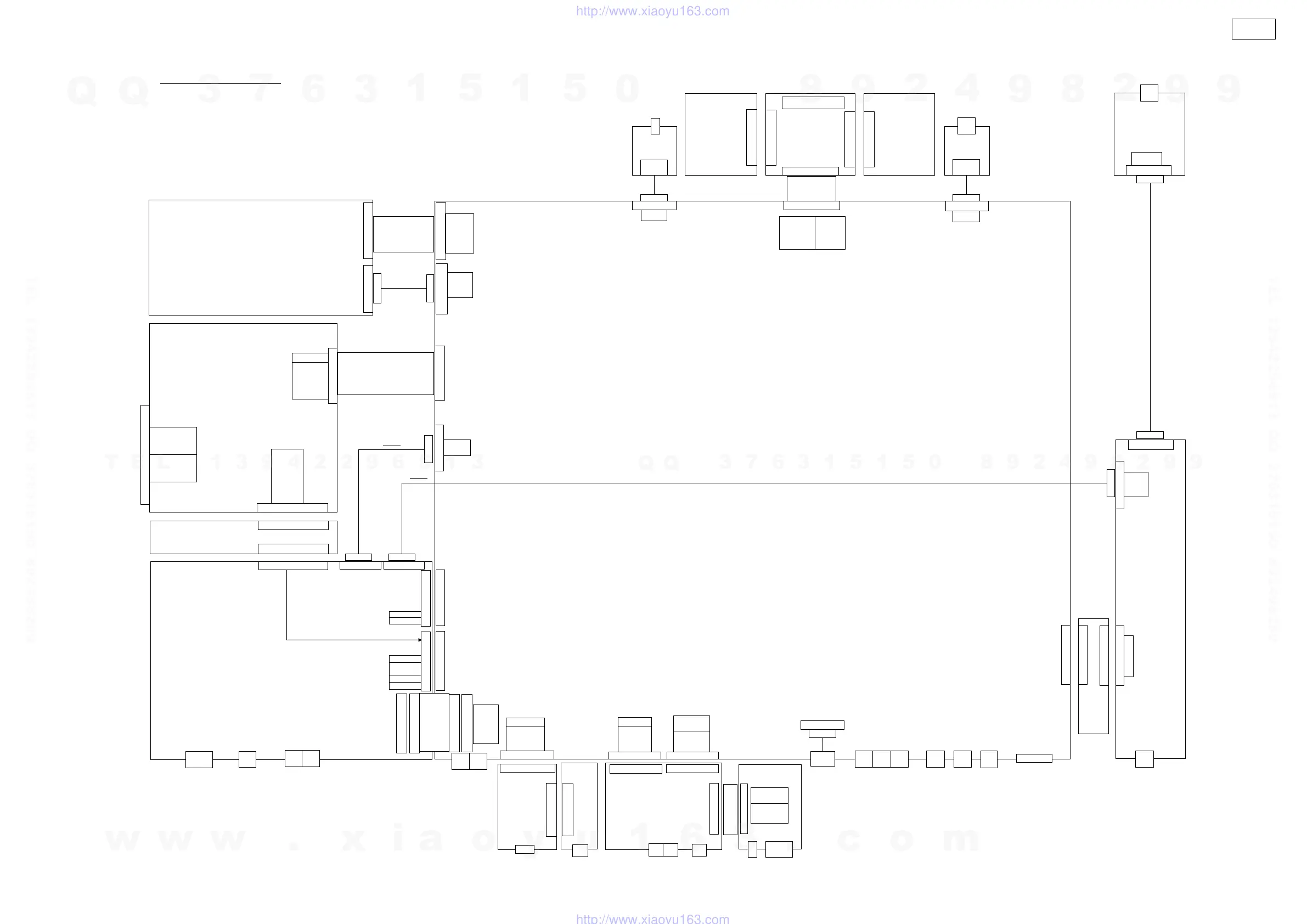

ADV-S302 Wiring Diagram
USB connect Jack
Portable IN JACK H/P JACK
shield
shield
ETHER
1U-3810-12
AUX IN UNIT
1U-3810-13
H/P UNIT
FM/AM TUNER
15P FFC
15P FFC Cable
+12V_A
GND_A
TUNER cotrol
RST/MUTE
FMAM L/R OUT
21P FFC Cable
CY211(21P FFC)
CW052
5P SAN
CW051
5P SAN
CX124
(
12P 9120
)
CX052(5P ZH)
TUNER/RDS
±12V_A1
GND_A1
+5V_D1
GND_D1
CX051(5P PH)
FL Display
CX054(5P PH)
CY301(30P FFC)
PARAREL
ATA
USB cotrol
+3.3V_D1
+3.3V_DNS
+9V_DNS
GND_D1
+HB/GND_HB
FL control
LED contol
KEY/VOL
DIMMER
REMOTE
CX033(3P ZH)
CX153 (15P TUC-P)
CX151(15P 9120)
CY501(50P B to B)CY801(80P B to B)
CY054(5P PH)
CX211(21P FFC)
CX171(17P FFC)
CX301(30P FFC)
CY062(6P PH)
CY141(14P 9220)
CX141(14P 9162)
CX501(50P B to B)CX801(80P B to B)
CY033(3P ZH)
17P FFC Cable
1U-3777-1
ETHERNET/USB
/XM/WiFi UNIT
1U-3810-4
USB TERMINAL
UNIT
1U-3810-3
DISPLAY LEFT
UNIT
1U-3810-1
DISPLAY CENTER
UNIT
1U-3810-2
DISPLAY RIGHT
UNIT
1U-3807-1
FE DRIVE UNIT
30P FFC Cable
25P SYSTEM CABLE to DSW
1U-3809
DIGITAL VIDEO UNIT
(
GUI/HDMI
)
1U-3808-1
MAIN UNIT
(BE/AUDIO-PLD/SYSuCOM/AVuCOM/AUDIO-DSP)
iPod
Y/C IN
FL/FR+
FL/FR-
C/SW+
C/SW-
SL/SR+
SL/SR-
DSW control.
CX062(6P PH)
+5V_D2
GND_D2
+12V_M2
(GND_M1)
+HB
GND_HB
+9V_DNS
L/R/SW signal
ON_STANDBY
PROT/RELAY
PDOWN/PREMUTE
CY171(17P FFC)
CX303 (30P 9111S)
1U-3810-5
LOCAL POWER UNIT
±12V_A
GND_A
+9V_V
±5V_V
GND_V
+27V_D
GND_D
GND_M
+9V_DNS
USB
PLAYER IN
AUDIO
DATA/CLK
DVD VIDEO
I2C
HDMI
Y/C , CVBS
OUT
CY122 (12P TUC-P)
OSD
VIDEO
CY303 (30P 9111B)
CY401 (40P 9828S)
CX401 (40P 9828S)
CX121(12P TUC-P)
CX091(9P TUC-P)
RS232C/SW
+5V_NSW
+3.3V_D1
GND_D1
1U-3810-7
SW UNIT
CY091(9P TUC-P)
CX055(5P TUC-P) CY055(5P TUC-P)
1U-3810-6
RS232C UNIT
AUX1_Y
AUX1_C
AUX1_V
AUX2_Y
AUX2_C
AUX2_V
1U-3810-9
IF-1 UNIT
1U-
3810-10
IF-2
UNIT
CX122 (12P TUC-P)
CY121 (12P TUC-P)
1U-
3810-11
IF-3
UNIT
CY153 (15P TUC-P)
CY151 (15P 9120)
CY124(12P 9120)
1U-3810-8
TUNER/RtoR
/iPod UNIT
CX072
(
7P PH
)
CY072(7P ZH)
JPEG_Y
JPEG_C
JPEG_V
CX142(14P 9162) CY142(14P 9220)
CX123
(
12P 9120
)
iPod control
TUNER contol
+5V_DNS
GND_D1
CY123(12P 9120)
FAN
CX031(3P PH)
CX154 (15P FFC)
shield
shield
shield
SW
(VIDEO)
RS-232C
RtoR
IN/OUT
iPod Dock
CONT.
HDMI
OUT
COMPONENT
IN/OUT
Y/C , CVBS
IN x 2
ANALOG IN x 3
AUX1,2,3
OPT
OUT
OPT
IN
COAX.
IN
iPod
Connector
H/P OUT
P.IN
WIRING DIAGRAMS
