129

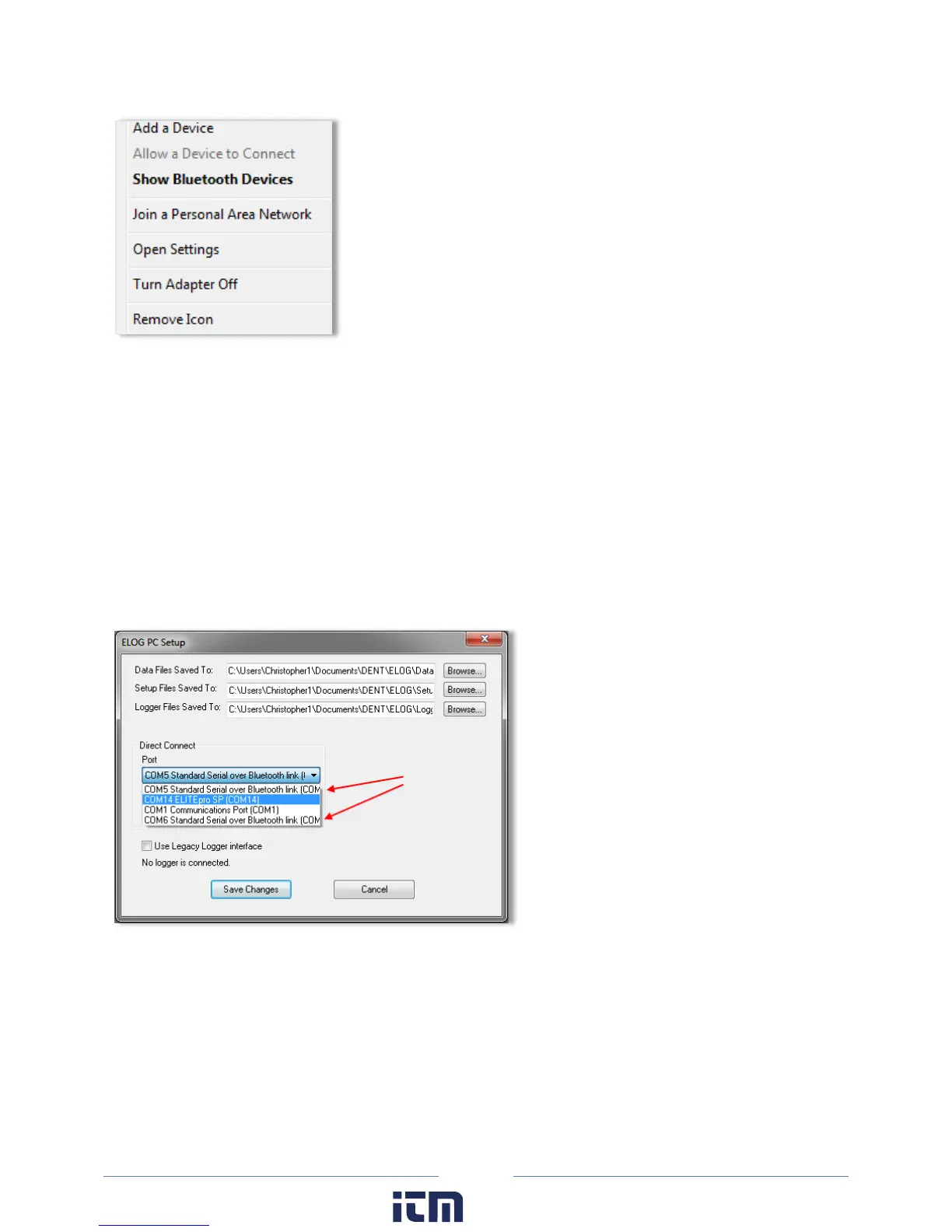

1) Click Add a Device. You should then see a list of Bluetooth devices external to the PC including the
ELITEpro XC identified by its serial number. (The logger may be the only device the PC sees.)
2) Select the desired ELITEpro XC and click Next.
3) In Windows 7 or Windows 8, the next screen shows you a pairing code. When asked whether the
code matches your device, click Yes. Windows will then connect to the device and provide a serial
port for communication.
4) Next determine which com port Windows assigned to the Bluetooth link. In ELOG, click on the PC
Setup speed button. Windows may have assigned two com ports to the Bluetooth link but only one
will work for communication. The correct port to use is found through trial and error.
5) Click on the first “…Standard Serial over Bluetooth link…” found in the Direct Connect Port drop-
down list, click Save Changes, and attempt to communicate using Direct Serial or Bluetooth
Connection speed button or use Logger > Communication > Connect via USB or Bluetooth. The
connection may take up to 10 seconds to complete.
If the first port attempted fails, try again using the other Bluetooth port found in PC Setup. Repeat, if
necessary, until a connection is established and the correct Bluetooth port is known.
