85
8514-300-001 REV PR

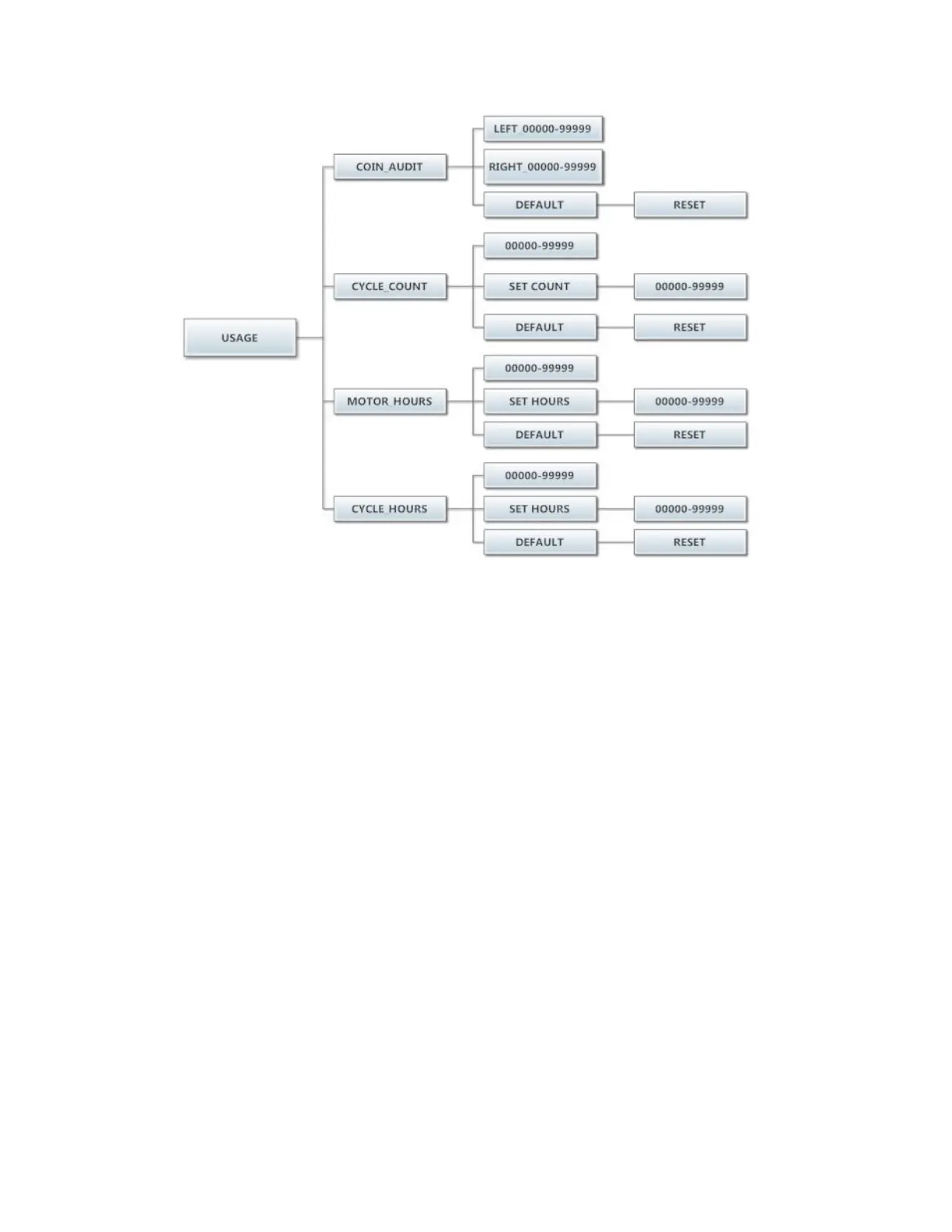

Figure 7-50 Top Level Usage Menu
7.4.10 Control
The Control menu allows for the user to observe important technical information for the control.
No changes can be made at this menu. See below for detailed information on each sub menu.
1. “Serial Number”: This is the control serial number.
2. “MAC Address”: The MAC Address is a unique identifier designated to the control by the
manufacturer. It allows the control to be recognized by network routers.
3. “IP Address”: The IP Address is the identifier given to the control by a network system.
4. “M Firmware”: The M Firmware is the Main Firmware currently loaded onto the control.
5. “S Firmware”: The S Firmware is the Secondary Firmware currently loaded onto the
control.
6. “C Firmware”: The C Firmware is the Communications Firmware currently loaded onto
the control.
