Dexter Laundry T-350 User Manual

21
8514-300-001 REV PR
If an elevated concrete pedestal is desired, it should be embedded and tied into the existing
floor. DO NOT install a pad on top of the existing floor. Cut through existing floor as shown
below. See Machine Mounting Detail Figures for floor thickness and bolt sizes.
WARNING
EXPANSION ANCHORS ARE NOT
RECOMMENDED FOR USE IN CONCRETE
PEDESTALS, BECAUSE THE ANCHORS
ARE TOO CLOSE TO AN EDGE, CAUSING
IT TO BREAK OUT.
7.1.3 Foundaon and Pad Opons
All installations require reinforced concrete floors. Refer to appropriate model Machine Mounting
Detail Figures 1-1, 1-2 and 1-3 for minimum floor thickness and minimum pad sizes. See
mounting diagram for overall washer dimensions.
Refer to appropriate model Figure 1-4 for side-by-side mounting dimensions in Machine
Mounting Details.

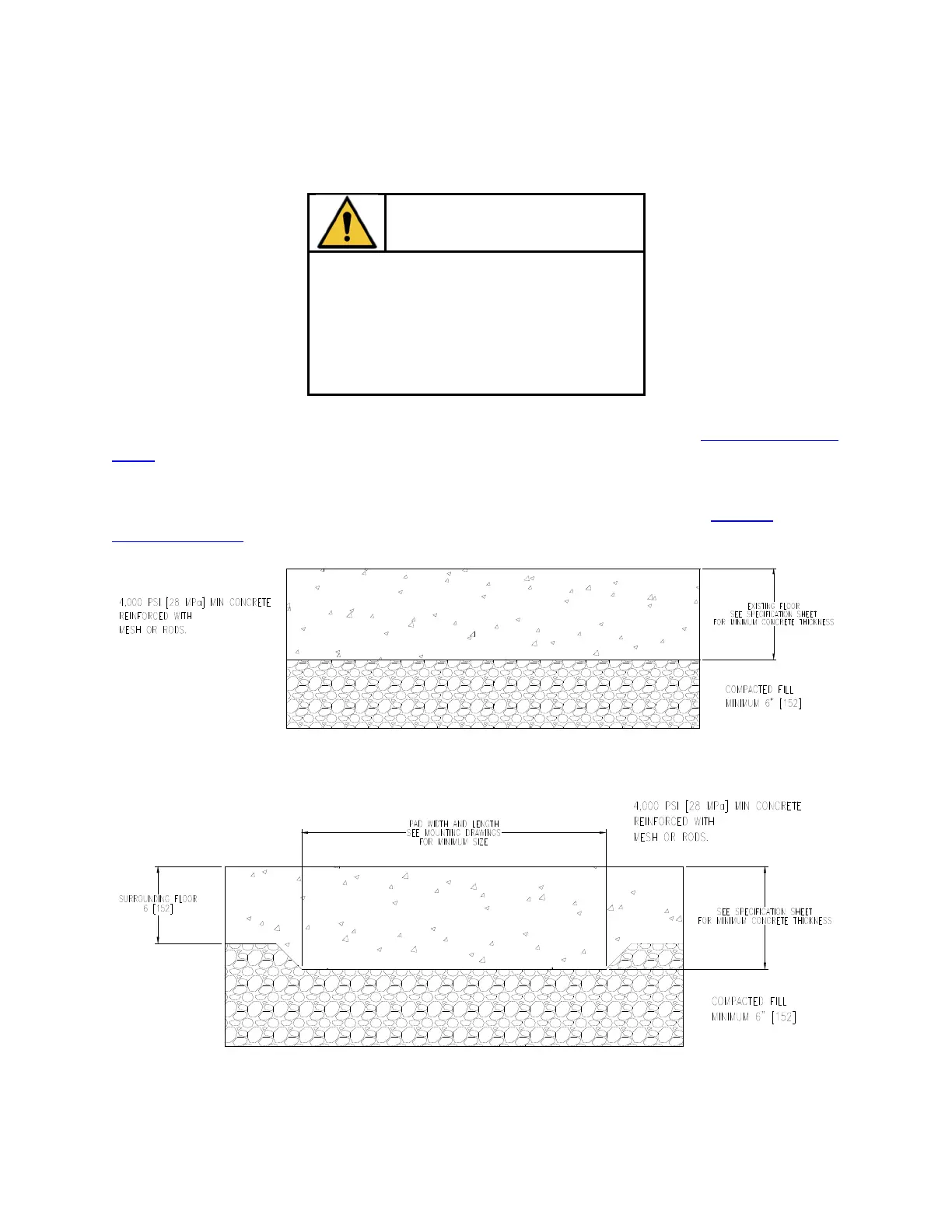

Figure 7-1 Washer Installaon on Exisng Floor
Figure 7-2 Washer Installaon on New Floor
