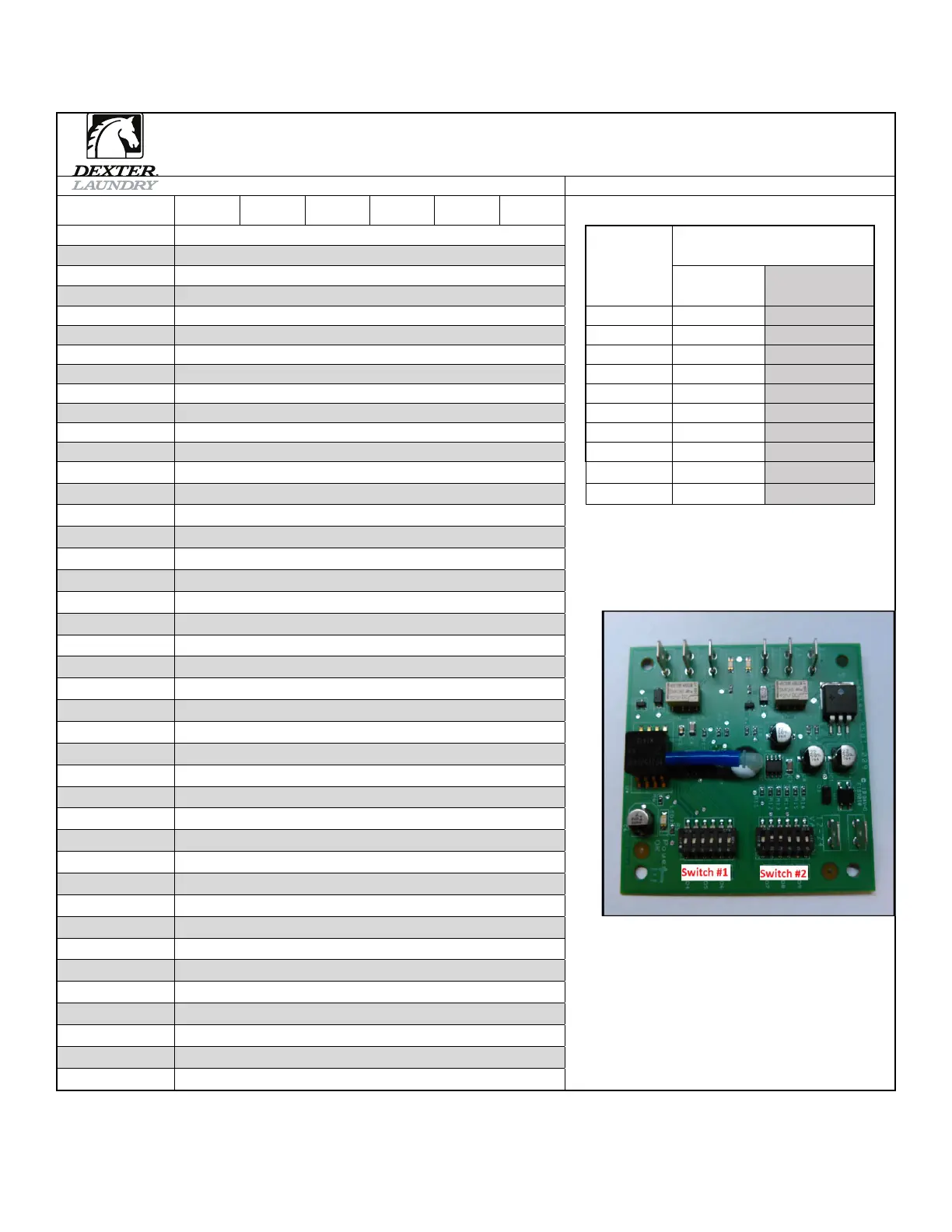

Water Level Chart
Switch Positions: Factory Settings:
Depth inches
(mm): Pos 1 Pos 2 Pos 3 Pos 4 Pos 5 Pos 6
5.00 (127) off off off off off off
Model
Vended
5.25 (133) on off off off off off
5.50 (140) off on off off off off Switch #1 Switch #2
5.75 (146) on on off off off off Efficient Classic
6.00 (152) off off on off off off
T-300 5.25
7
6.25 (159) on off on off off off
T-350 5.25
6.25
6.50 (165) off on on off off off
T-400 7
9
6.75 (171) on on on off off off
T-450 6
6.25
7.00 (178) off off off on off off
T-600 7.25
9.25
7.25 (184) on off off on off off
T-650 6.5
8.25
7.50 (191) off on off on off off
T-750 6
7.5
7.75 (197) on on off on off off
T-900 6
7.5
8.00 (203) off off on on off off
T-350 SWD 5.25 6.25
8.25 (210) on off on on off off
T-450 SWD 5 7
8.50 (216) off on on on off off
8.75 (222) on on on on off off
9.00 (229) off off off off on off
9.25 (235) on off off off on off
9.50 (241) off on off off on off
9.75 (248) on on off off on off
10.00 (254) off off on off on off
10.25 (260) on off on off on off
10.50 (267) off on on off on off
10.75 (273) on on on off on off
11.00 (279) off off off on on off
11.25 (286) on off off on on off
11.50 (292) off on off on on off
11.75 (298) on on off on on off
12.00 (305) off off on on on off
12.25 (311) on off on on on off
12.50 (318) off on on on on off
12.75 (324) on on on on on off
13.00 (330) off off off off off on
13.25 (337) on off off off off on
13.50 (343) off on off off off on
13.75 (349) on on off off off on
14.00 (356) off off on off off on
14.25 (362) on off on off off on
14.50 (368) off on on off off on
14.75 (375) on on on off off on
15.00 (381) off off off on off on
Table 7-6 Water Level Chart
