Digi XBee interface

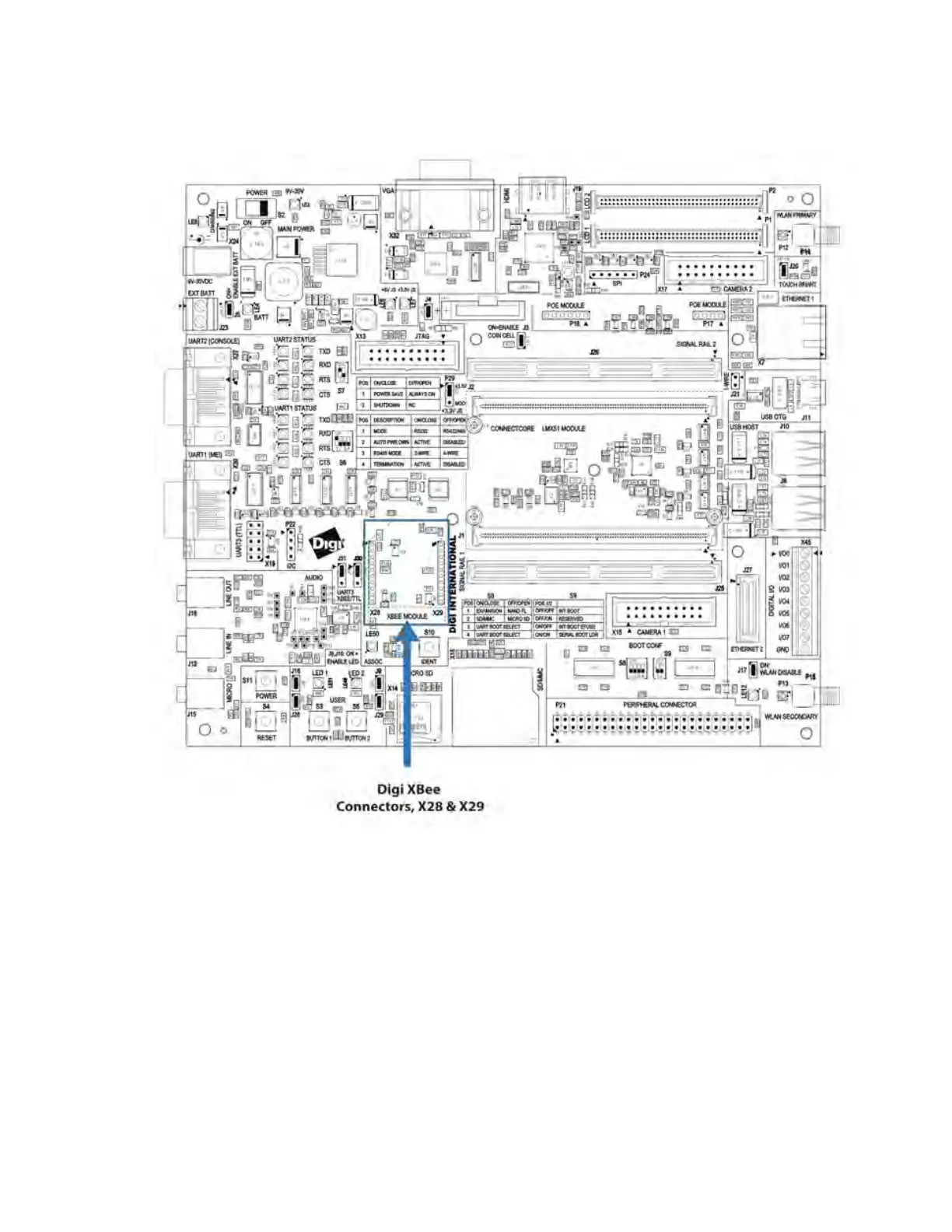

Digi XBee module connectors, X28 and X29
The development board provides two 10-pin, 2.0mm connectors, X28 and X29, supporting a Digi XBee
module.
The XBee serial port is shared with UART port 3 on the development board. Two jumpers (J30 and J31)
are used in the development board to select the connector where serial port 3 will be available. Refer
to Jumpers for more information.
The table below shows the pinout of the XBee module connectors.
