Dingo K9-4 Operation & Maintenance Manual
11
To turn, decrease pressure on the drive control
lever closest to the direction you want to turn.
The farther you move the drive control levers
in either direction, the faster the machine will
move in that direction.
To slow or stop, move or release the drive control
levers into neutral. (If released the control levers
will automatically return to neutral).
Attachment Tilt Lever
To tilt/crowd attachment forward, slowly push
the tilt lever forward.
To tilt attachment backward, slowly pull the tilt
lever backward.
Loader Arms Lever
To lower Dingo arms, slowly push arm lever
forward.
To raise Dingo arms, slowly pull arms lever
backward.

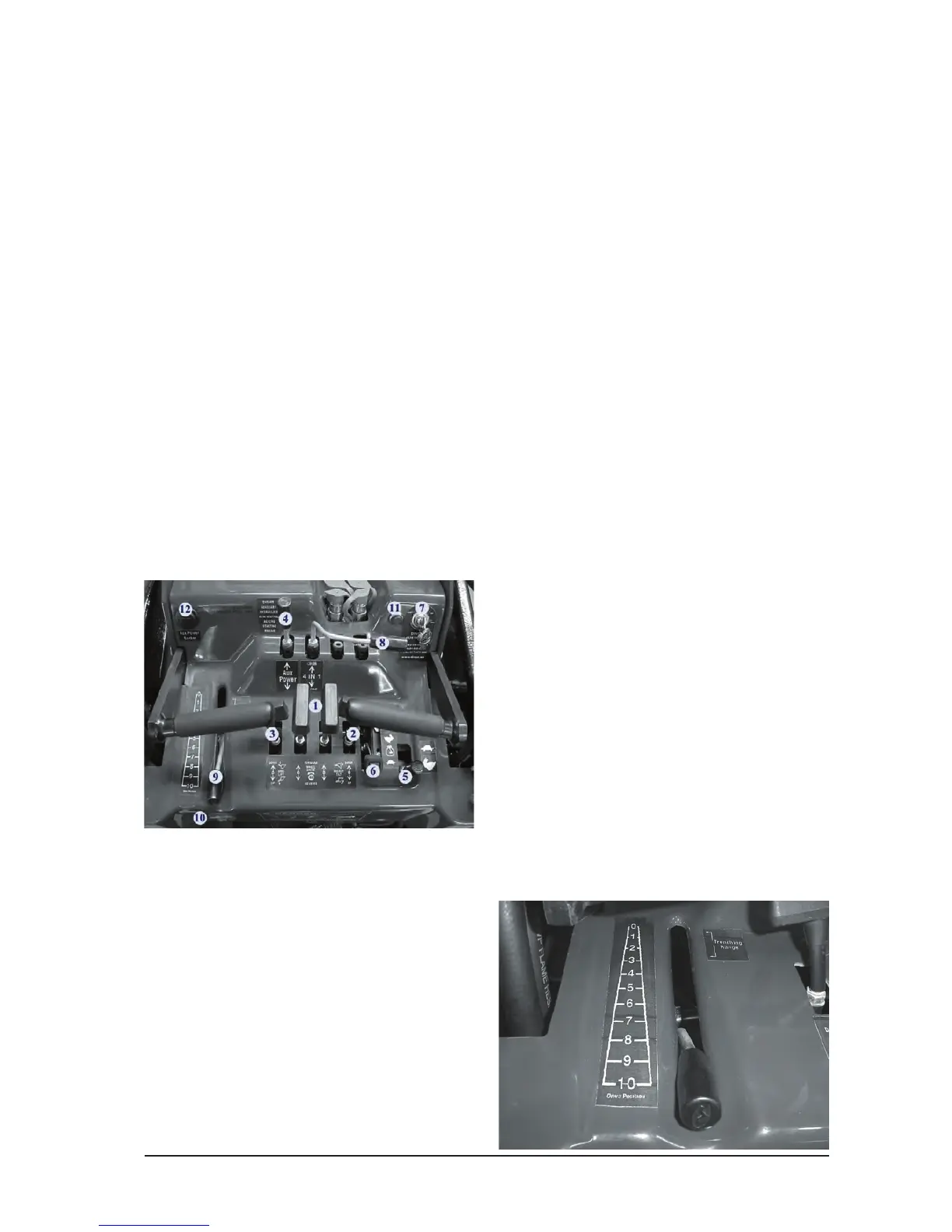

Control Panel Diagram
1 Drive control levers
2 Attachment tilt lever
3 Loader arms lever
4 Auxiliary hydraulic lever
5 Pump selector valve
6 Throttle
7 Ignition
8 4 in 1 Bucket Lever
9 Flow Divider
10 Hydraulic Immobiliser
11 Warning Light
12 Auxiliary Power Socket
Auxiliary Hydraulic lever
The auxiliary hydraulics lever allows you to alter
the direction of rotation of hydraulically driven
attachments or stop them completely.
ATTENTION: Ensure auxiliary hydraulic lever
is in neutral position before starting engine.
Aside from starting difculties the attachment
may move during starting.
To operate attachment in forward direction,
slowly pull auxiliary lever rearward. To operate
attachment in reverse direction, slowly push
auxiliary lever forward.
Pump Selector Lever
When faster ground speed and lifting speed is
required (bucket work) more than attachment
speed and power, push the pump selector lever
to the rearward position (Hare).
When faster attachment speed and power is re-
quired (trenching, post hole digging etc) more
than ground speed and lifting power, push the
pump selector lever to the forward position
(Turtle).
Flow Divider Control
In its normal operating position no ow division
is taking place. Moving the lever forward diverts
oil ow to the attachment and less is available
to the Dingo wheels and arms. This allows
for greater concentration of power where it is
needed most.
The ow divider is mainly used for trenching,
rotary hoeing and stump grinding where it is
important for the attachment to have as much
power as possible and ground speed is not
important.
