DINGO K9-4 Service Manual

Dingo K9-4 Operation & Maintenance Manual
8
Dingo K9-4 Operation & Maintenance Manual
9

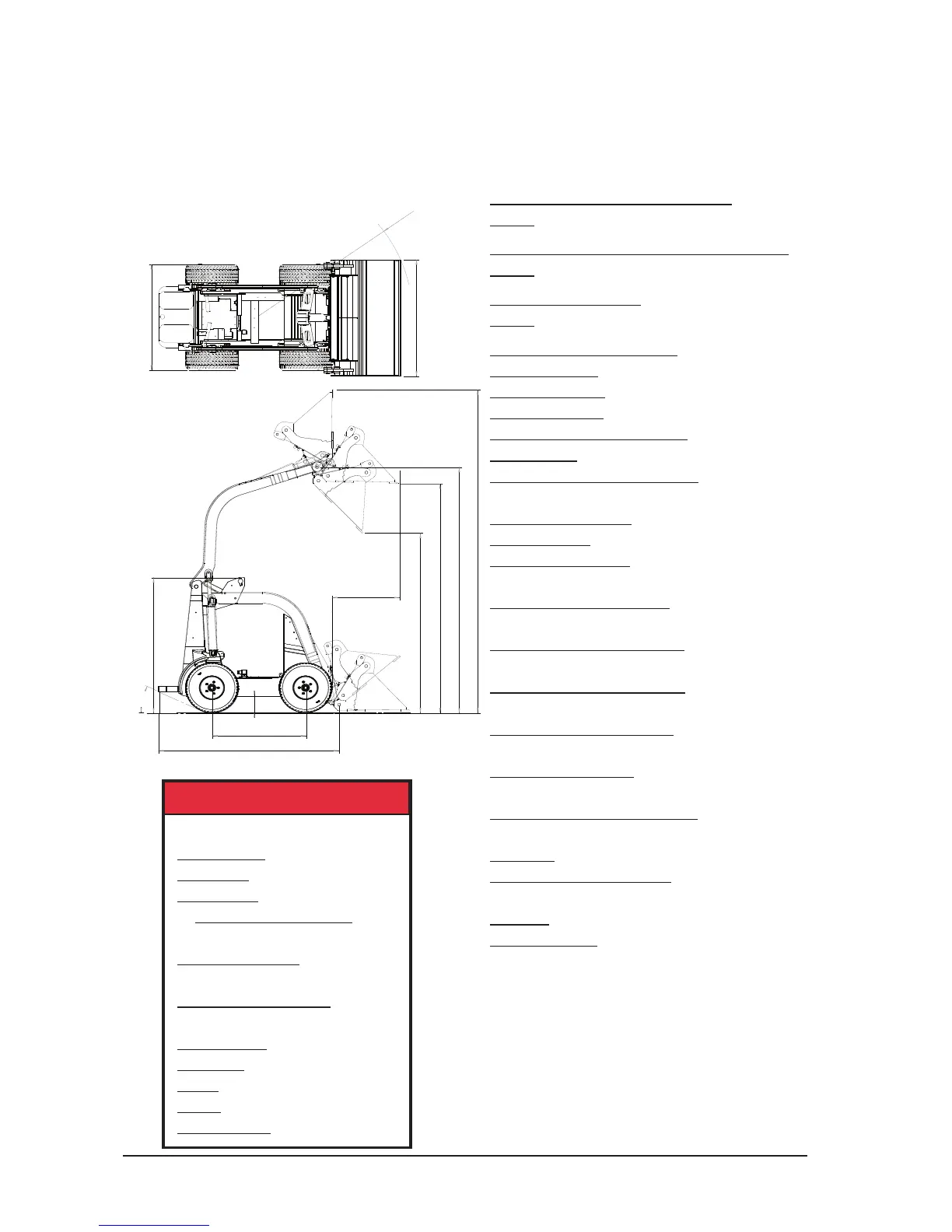

Specications
N
M
C
G
D
K
I
A
J L
E
F
H
B
FACTS AT A GLANCE
K9-4
Performance
Hydraulics: 2 pumps
Pump Sizes: 9 & 4 cc
Pump Sizes:(Pro Series) 11.2
& 4cc
Hydraulic Pressure
234 Bar (3400psi)
Hydraulic Pump Output:
47 l/min 12.6gal/min
Travel Speed: 6 KmH (3.7mph)
Overdrive: 7.4 KmH (4.6mph)
SWL*: 325kg (716.5lb)
MWL*: 650kg (1433lb)
Wheel Motors: 29 cu in
Engine - Yanmar Diesel Series I & II
Power: 19.1 kW (25.6hp) 3600 RPM
Engine - Yanmar Diesel/Perkins PRO Series
Power: 27 kW (27hp) 3100 RPM
Engine - Kohler Petrol
Power: 18.6 kW (25hp) 3600 RPM
Dimensional Specications
A. Overall Width: 970mm (38”)
B. Overall Length: 1550mm (61”)
C. Overall Height: 1200mm (47”)
D. Maximum Operating Height
4 in 1 Bucket: 2650mm (104”)
E. Turning Radius with 4 in 1 Bkt: 1300mm
(51”)
F. Angle of Departure: 25°
G. Wheel Base: 800mm (31”)
H. Ground Clearance:
135mm (5.3”)
I. Dump Height with Std Bkt:
1450mm (57”)
J. Reach Fully Raised Std Bkt:
800mm (31”)
K. Dump Height with 4 in 1 Bkt:
1835mm (72”)
L. Reach Fully Raised 4 in 1:
800mm (31”)
M. Height to Hinge Pin
1940mm (76”)
N. Machine width with 4 in 1 Bkt:
1045mm (41”)
Tyre Size: 18 x 8.5 x 8 (6 Ply) std
Hydraulic Reserve Capacity:
90Litres (24US.gal)
Filtration: 10 Micron
Machine Weight:920kg (2028lbm)
