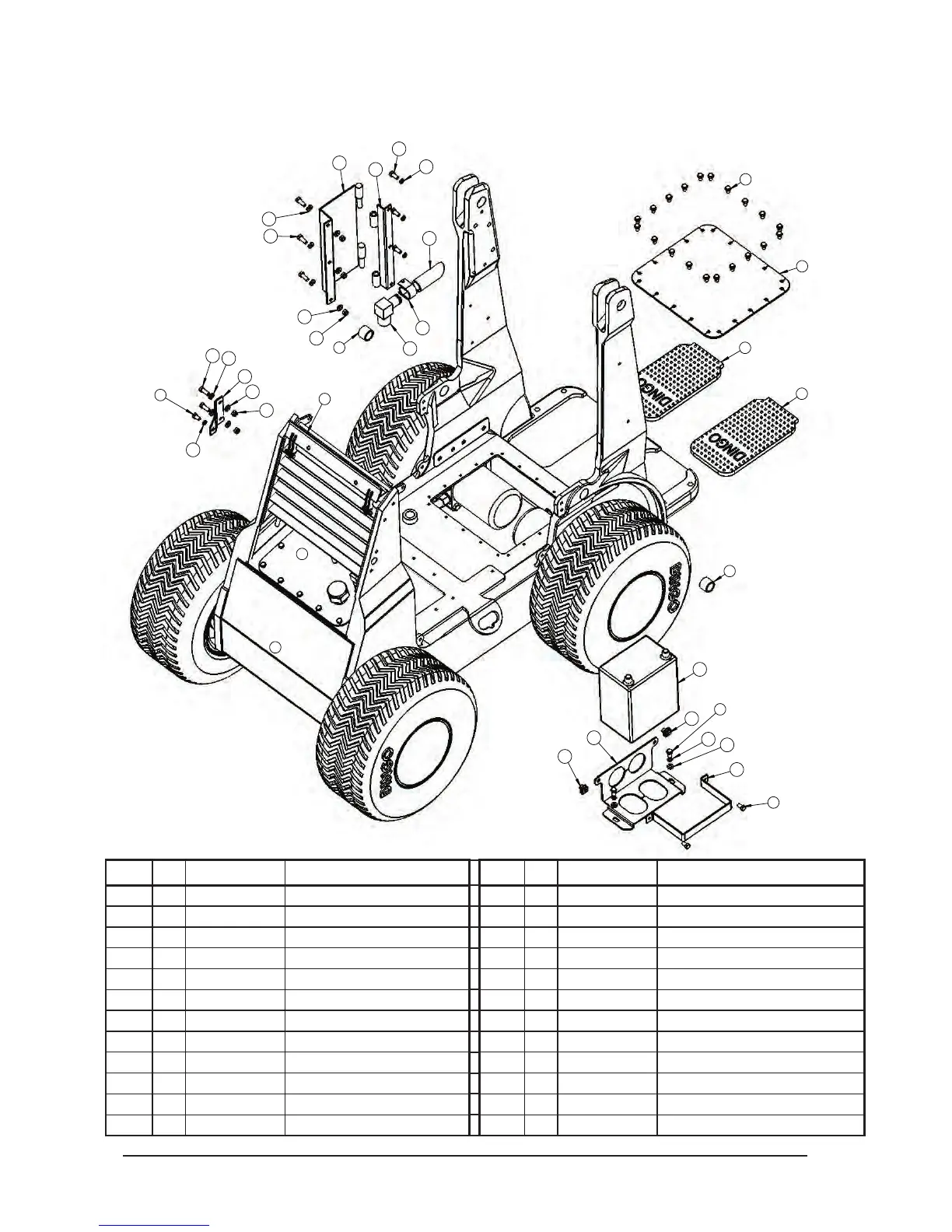

Chassis Assembly
Item Dingo Part Description Item Dingo Part Description
1 1 K94001 Welded Chassis Assembly 13 1 K94022 Raised Battery Bracket
2 1 K94006 Rear Tank Lid 14 1 D95320 Battery Bracket
3 1 K94040 Front Tank (See Page 28) 15 2 120-132-000 M8 Speed Nut
4 32 111-311-012 Hex Bolt M8 x 12 16 1 410-000-013 Battery
5 3 111-311-016 Hex Bolt M8 x 16 17 12 131-131-000 M8 Flat Washer
6 1 K94085 Full Grille Assembly 18 6 132-131-000 M8 Spring Washer
7 2 043-000-045 Rubber 19 3 111-311-020 Hex Bolt M8 x 20
8 4 043-300-020 Foot Plate Plastic Blank 20 5 111-311-025 Hex Bolt M8 x 25
9 2 043-000-056 1” Bush 21 5 122-131-000 Nyloc Nut M8
10 1 300-000-006 Hose Clamp 34mm 22 1 K94050 Front Fuel Tank Catch
11 1 319-381-800 Hydraulic Fitting (CB601616) 23 1 K94056 Fuel Tank Rear Tank Bracket
12 1 345-800-000 Hydraulic Suction Hose 24 1 K94057 Fuel Tank Rear Chassis Bracket
