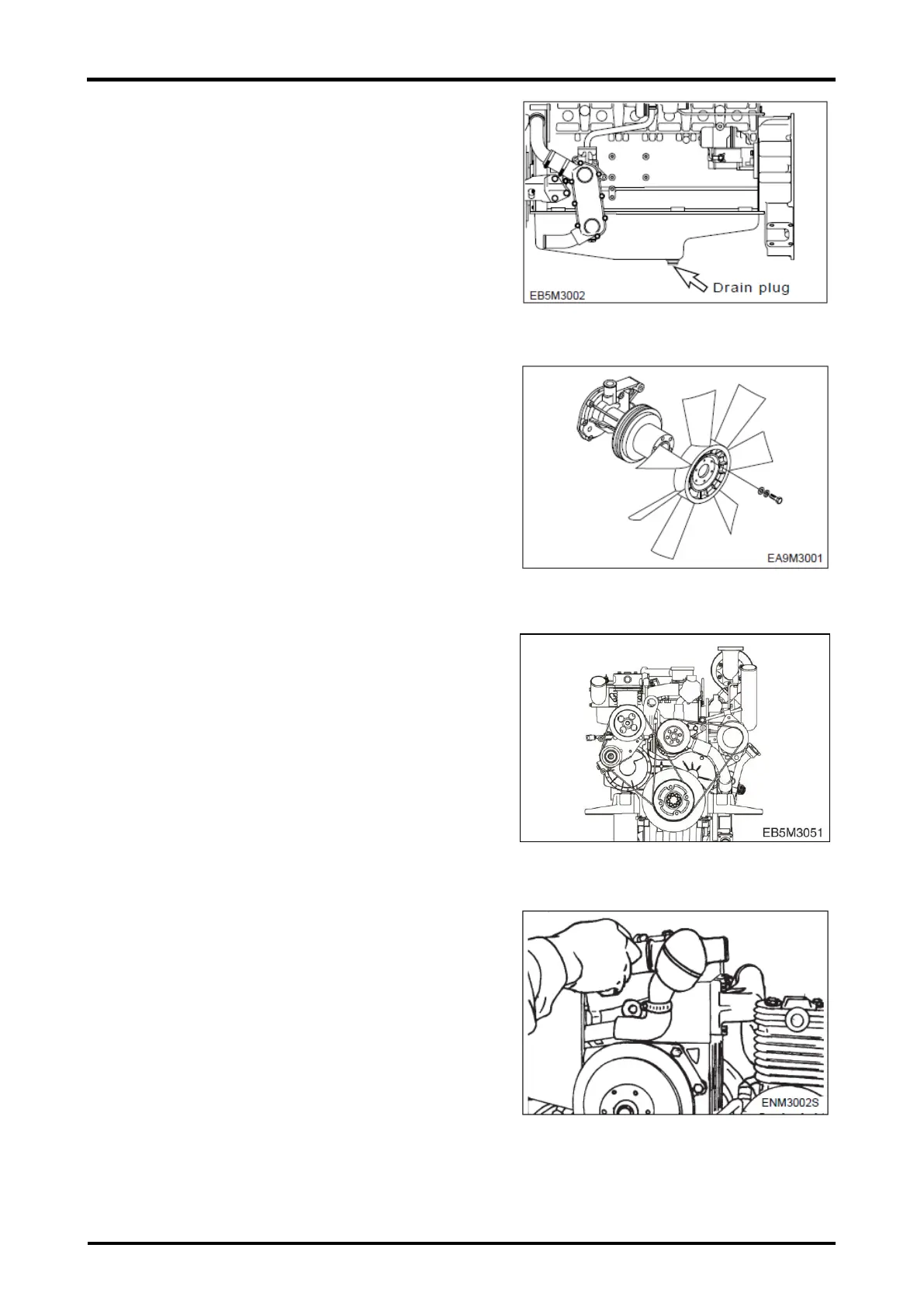

3.1.4 Engine oil
·Remove the oil drain plug of oil pan and pour the engine
oil into the prepared vessel.
3.1.5 Cooling fan
·Remove the flange fixing bolts, then take off the flange
and cooling fan.
3.1.6 Belt
·Loosen the tension adjusting bolts of the alternator and
the idle pulley, and take off the belts.
3.1.7 Thermostat
·Loosen the rubber hose connected to the cooling water
pipe and remove the thermostat.
·Remove the rubber hose of the bypass line.
