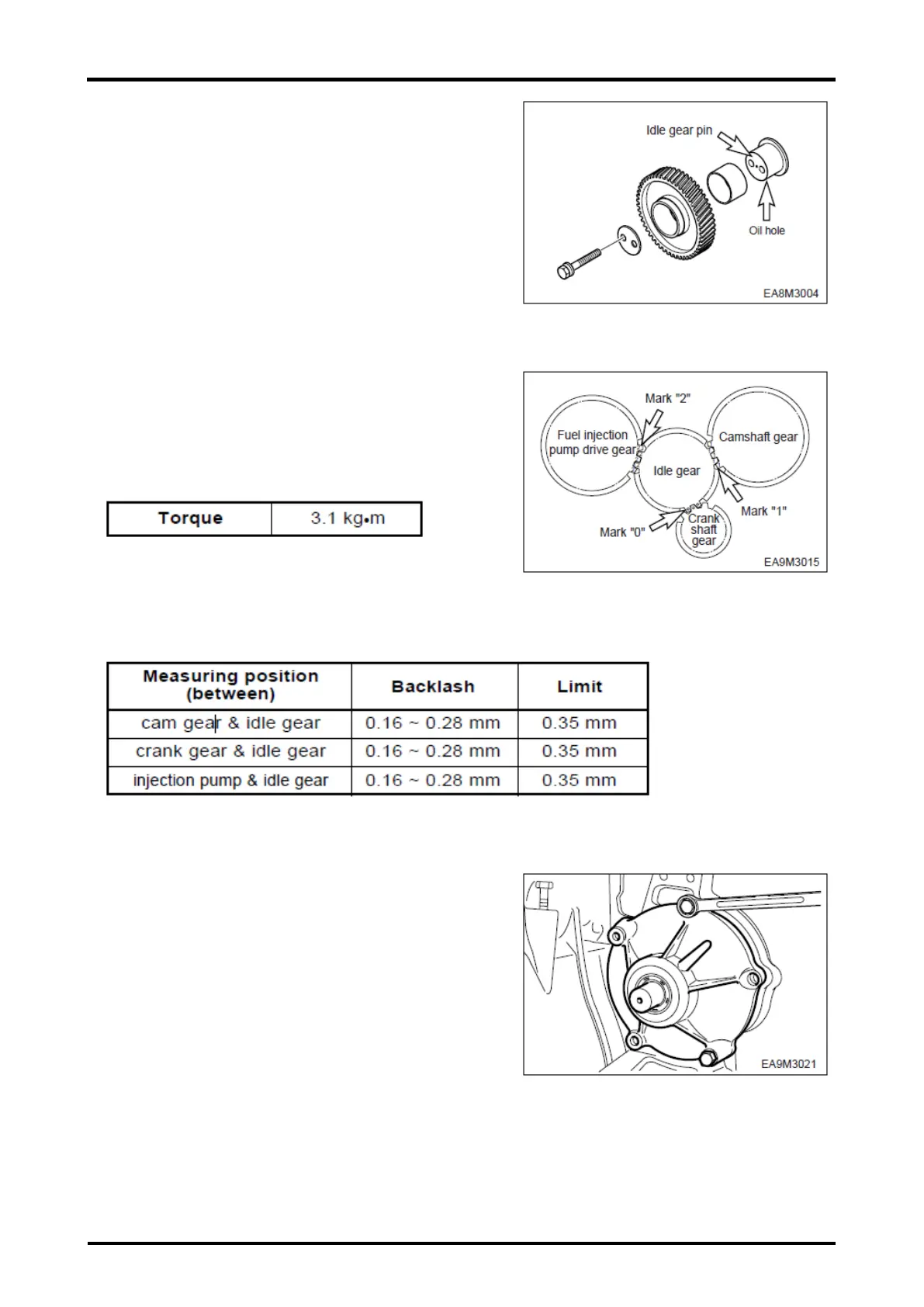

·With the oil port on the idle gear pin facing the cylinder
block, install the idle gear pin.
· Idler gear pin with oil hole is assembled toward
cylinder block.
·Install the idle gear by coinciding the marks impressed
on the crank gear, cam gear, fuel injection pump drive
gear, and idle gear.
·Install a thrust washer on the idle gear and tighten to
specified torque.
·Check and adjust the amount of backlash between
gears using a feeler gauge.
3.3.15 Injection pump flange
·After assembling the fuel injection pump gear to the
idle gear, tighten the assembling bolts of the injection
pump flange.
·Mount gasket by aligning the bolt holes with the pin
holes on the bearing housing.
·Turning the flywheel, adjust the pointer to the position
of the engraved scale.
·After adjusting the injection timing of fuel injection
pump drive gear, tighten the fixing bolts in the
direction of fuel injection pump.
