3.3 Engine Reassembly
3.3.1 General precautions
·Clean all the disassembled parts, particularly oil and water ports, using compressed air, then check that
they are free from restrictions.
·Arrange the general and special tools in order for engine assembly operation.
·To wet each sliding part, prepare the clean engine oil.
·Prepare service materials such as sealant, gaskets, etc.
·Discard used gaskets, seal rings, and consumable parts, and replace with new ones.
·Apply only the specified torque for bolts in the specified tightening order and avoid overtightening.
·Be sure to check that all the engine parts operate smoothly after being reassembled.
·Check the bolts for looseness after reassembly.
·After completing the engine reassembly operation, check if there is missing parts or shortage of parts.
·Keep your hands clean during the working.
3.3.2 Cylinder block
Cover the floor of the workshop with wood plate or thick paper to prevent damage to the cylinder head and
place the cylinder block with the head fitting surface facing downward.

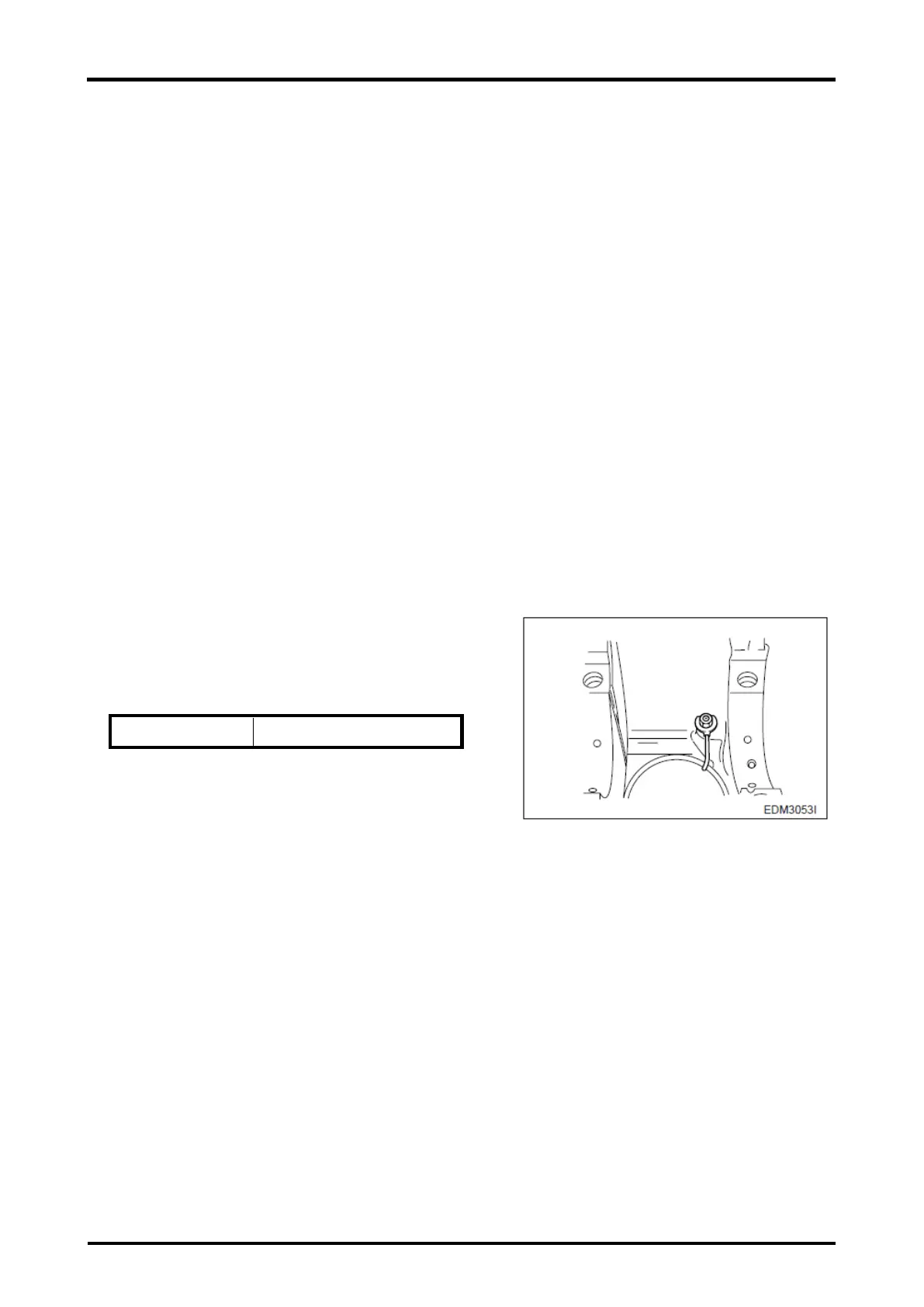

3.3.3 Oil spray nozzle (D1146TI, DE08TIS)
Tighten and assemble the oil spray nozzle flange with
fixing bolts using the spray nozzle jig.
3.3.4 Tappet and cam shaft
·Undercool a new bush with dry ice for about 2 hours
and press it into position in the cylinder block using a
bench press. After the pressing operation, measure
the inside diameter of the cam bush to check if it is not
deformed.
