DL06K Interim Tire-4 Diesel Engine Disassembly and Reassembly of Major Components

126

3.5. Electrical System

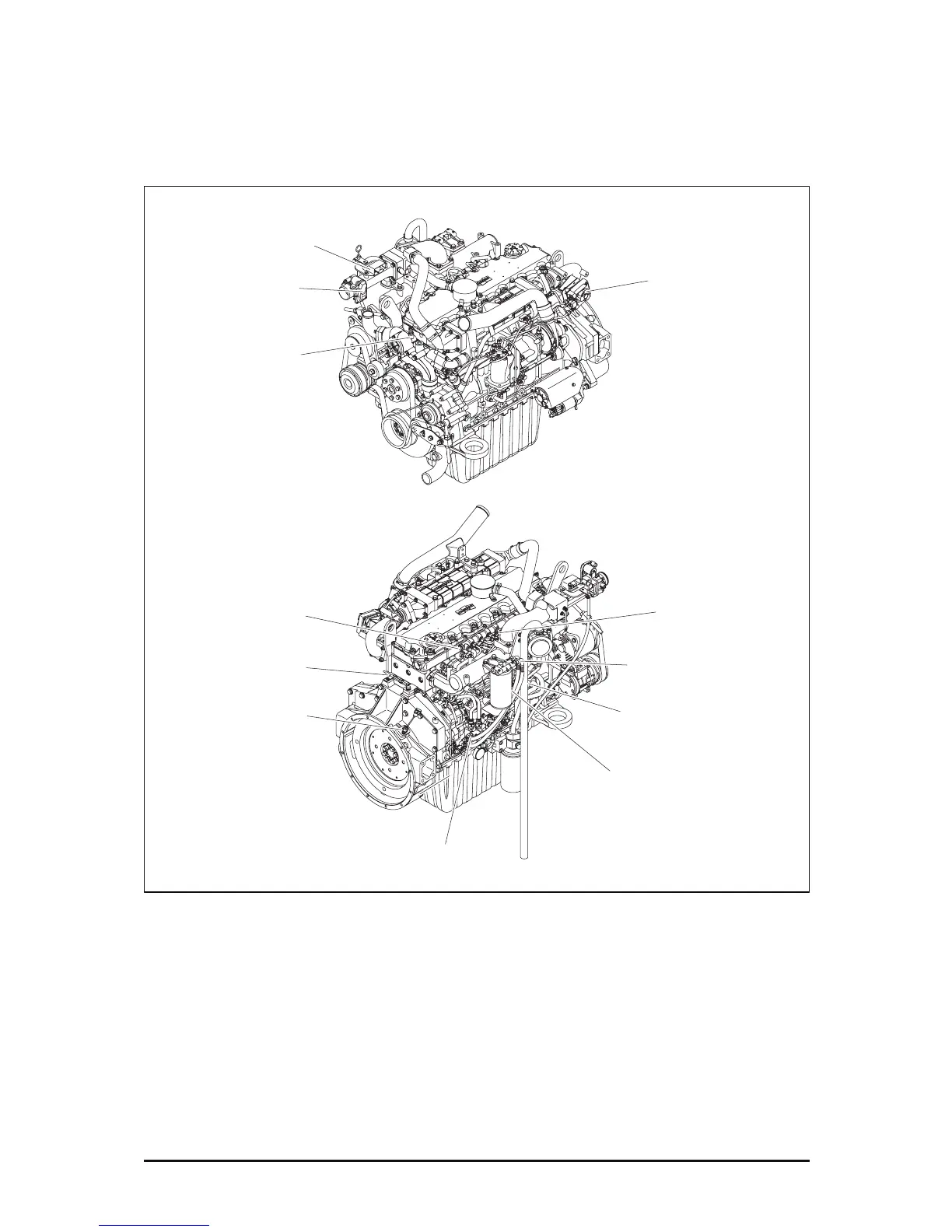

3.5.1. Electrical parts

EL4OM014

5. FMU

11. CAM

10. CRS

6. INJ

9. RPS

12. Fuel Temperature Sensor

7. OPTS

8. Resistance

2. BPTS

3. TVA

4. CTS

1. EGR

1. Exhaust gas recirculation actuator sensor (EGR) 7. Oil pressure temperature sensor (OPTS)

2. Boost pressure temperature sensor (BPTS) 8. Resistance connector (Resistance)

3. Throttle valve actuator/position sensor (TVA) 9. Commonrail pressure sensor (RPS)

4. Cooling water temperature sensor (CTS) 10. Crankshaft speed sensor (CRS)

5. Fuel pressure sensor (FMU) 11. Camshaft speed sensor (CAM)

6. Injector sensor (INJ) 12. Fuel temperature sensor (FTS

)
