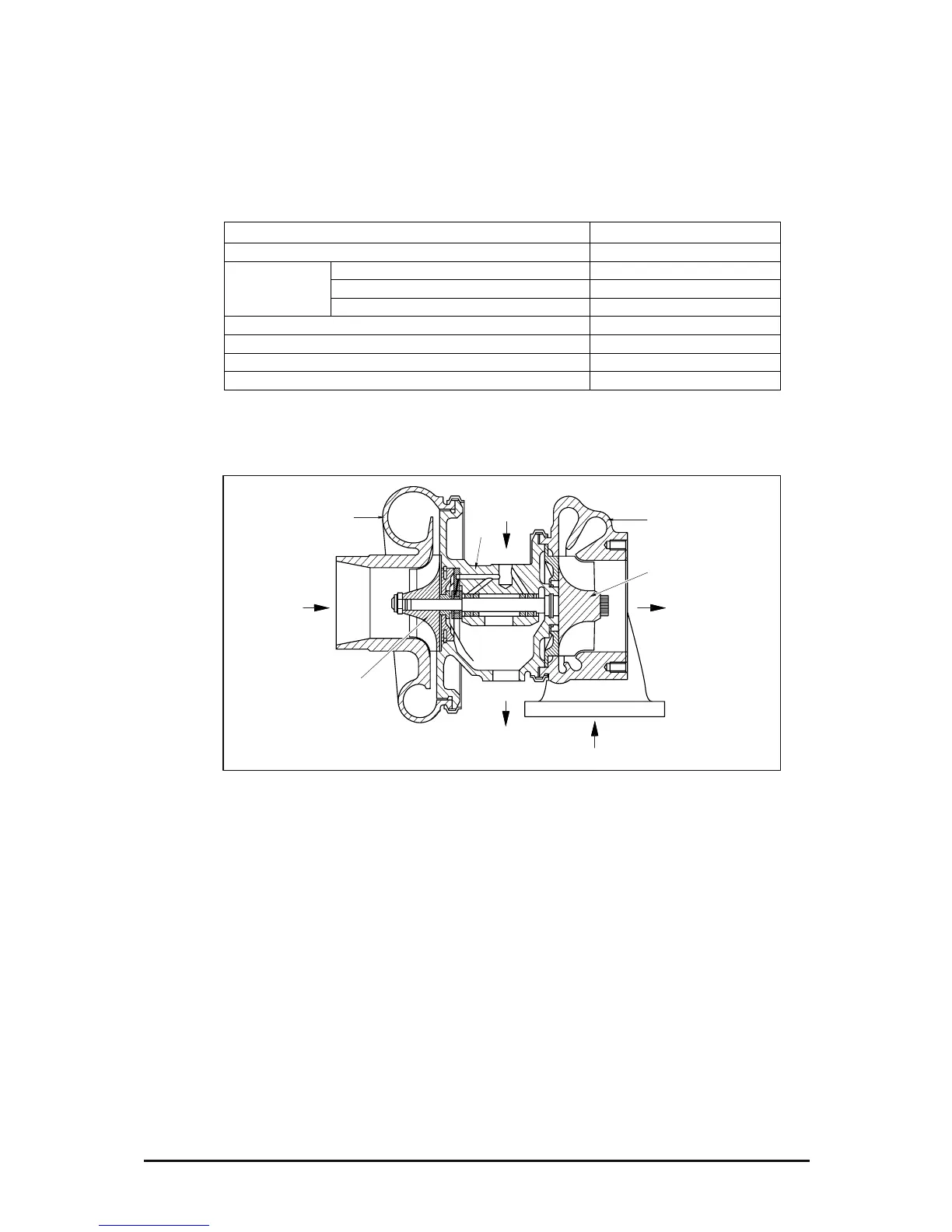

DL06K Interim Tire-4 Diesel Engine Maintenance of Major Components
181
5.3. Turbo Charger
5.3.1. Specification and construction
1) Main data and specification
Specification DL06K
Model BorgWarner WGT
At maximum
output
Air pressure at compressor outlet 2.86 kgr/cm
2
Air suction of turbine revolution 180 g/s
Speed of turbine revolution 148 krpm
Maximum allowable speed 183 krpm
Maximum allowable temperature of exhaust gas at turbine inlet 700 °C
Lubricating system Outside oiling
Weight Approx 9.0 kg
2) Construction
1 Impeller casing A Air inlet
2 Turbine casing B Gas outlet
3 Bearing casing C Gas inlet
4 Impeller D Oil supply
5 Turbine E Oil return
EAO5008I
C
5
3
2
B
E
4
1
A
D
