Duplo DF-520 User Manual

40

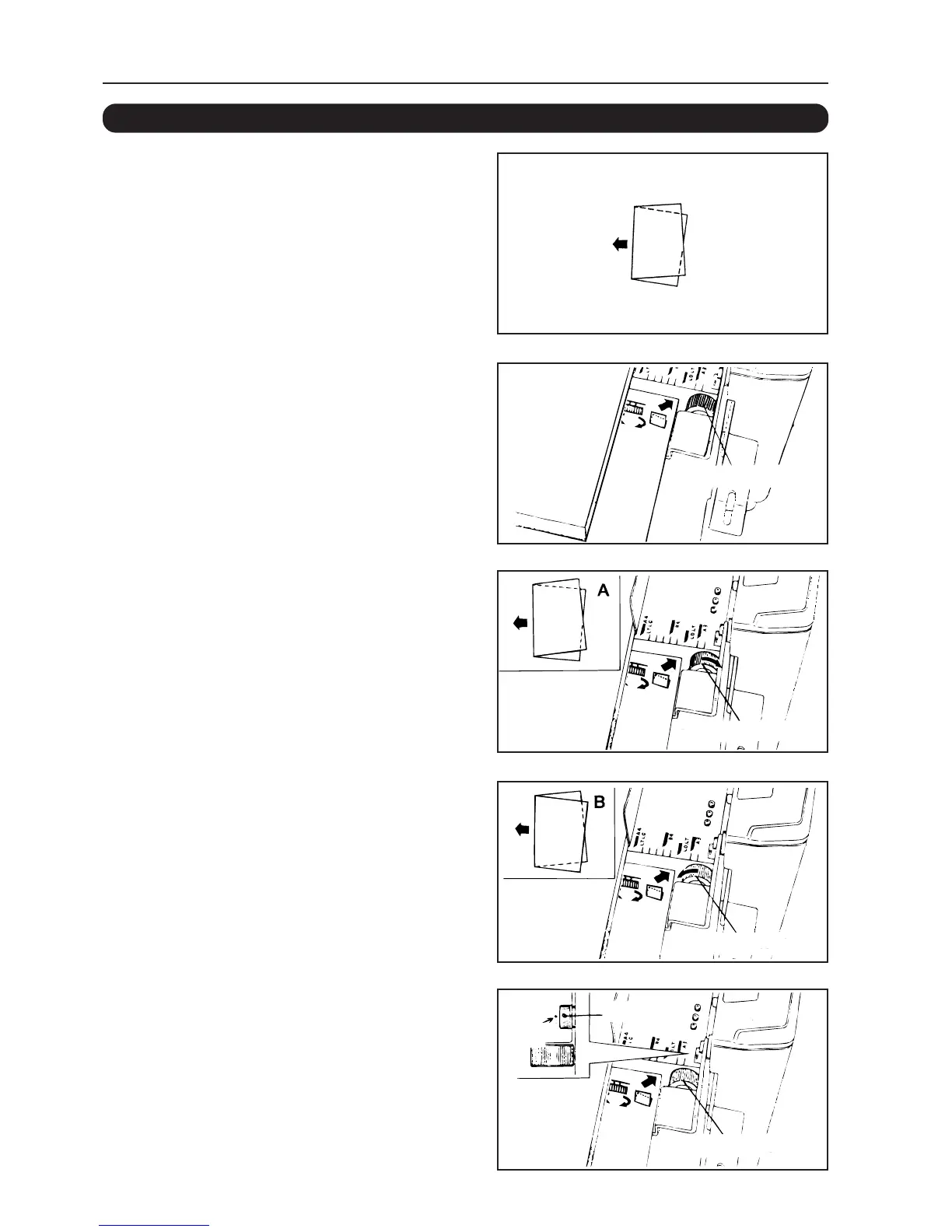

8-3. ADJUSTING THE FOLDING SLIPPAGE IN THE HORIZONTAL DIRECTION
8. FOLDING ADJUSTMENTS AND REGISTERING CORRECTIONS
• If folding slips as shown in the figure because the
paper is not cut straight, rotate the “slant
correction” knob to adjust the folding slippage.
1 Rotate the “slant correction” knob to
adjust the folding slippage.
• If folding slippage is as shown in Fig. A, rotate the
knob in the direction of the arrow.
• If folding slippage is as shown in Fig. B, rotate the
knob in the direction of the arrow.
2 After using, be sure to rotate the
“slant correction” knob to adjust the
round holes of the paper feed table to
the pin.
• The position at which the round hole meets the pin
is the standard position.
Slant correction knob
Slant correction knob
Slant correction knob
Slant correction knob
Round
hple
Pin
