3-1. REMOVING THE PRESS RELEASE LEVER
This press release level is attached to the unit at shipment to prevent the rubber roll from
becoming distorted.
Be sure to remove it when installing the unit.
Take note that the unit will be damaged if it is used without removing the lever.
Remember to remove it in the following order when installing the unit.

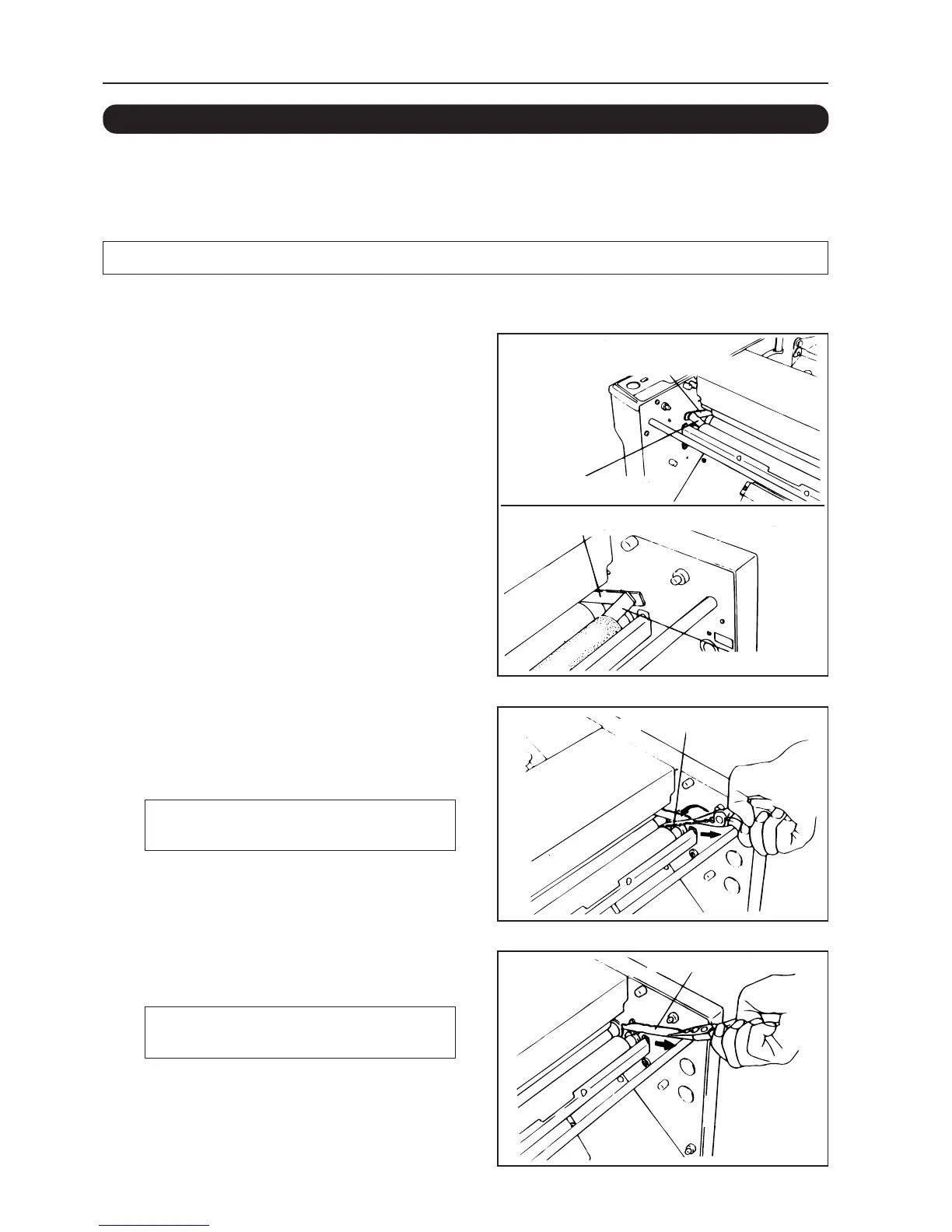

1 Two press release levers are inserted
in the left and right shaft edges of the
rubber roll.
2 First remove press release lever(A).
• To remove, push inwards and pull out the press
release lever, as shown in the figure.
Also remove that of the operating side in the
same way.
• Next, pull out press release lever(B) as shown in
the figure.
Also remove that of the operating side in the
same way.
3. INSTALLING THE UNIT
<Operating side>
Press release lever(B)
Press release lever(A)
Press release lever(B)
<Non-operating side>
Press release lever(A)
Press release lever(A)
Press release lever(B)
