Duplo DF-920 User Manual

12
Guide plate for deciding the paper folding position
For attaching/removing folding plate 2
For securing folding plate 2
For controlling folding plate 2
For inserting control cord 2
Functions together with the stacker belt to eject folded paper from the unit.
For supporting the stacker roller. The height of the roller can be adjusted.
For ejecting folded paper from the unit
No. Name Operation
!7
!8
!9
@0
@1
@2
@3
@4
Folding plate 2
Folding plate 2 handle
Folding plate 2 lock
lever
Control cord 2
No.2 connector
Stacker roller
Stacker support
Stacker belt

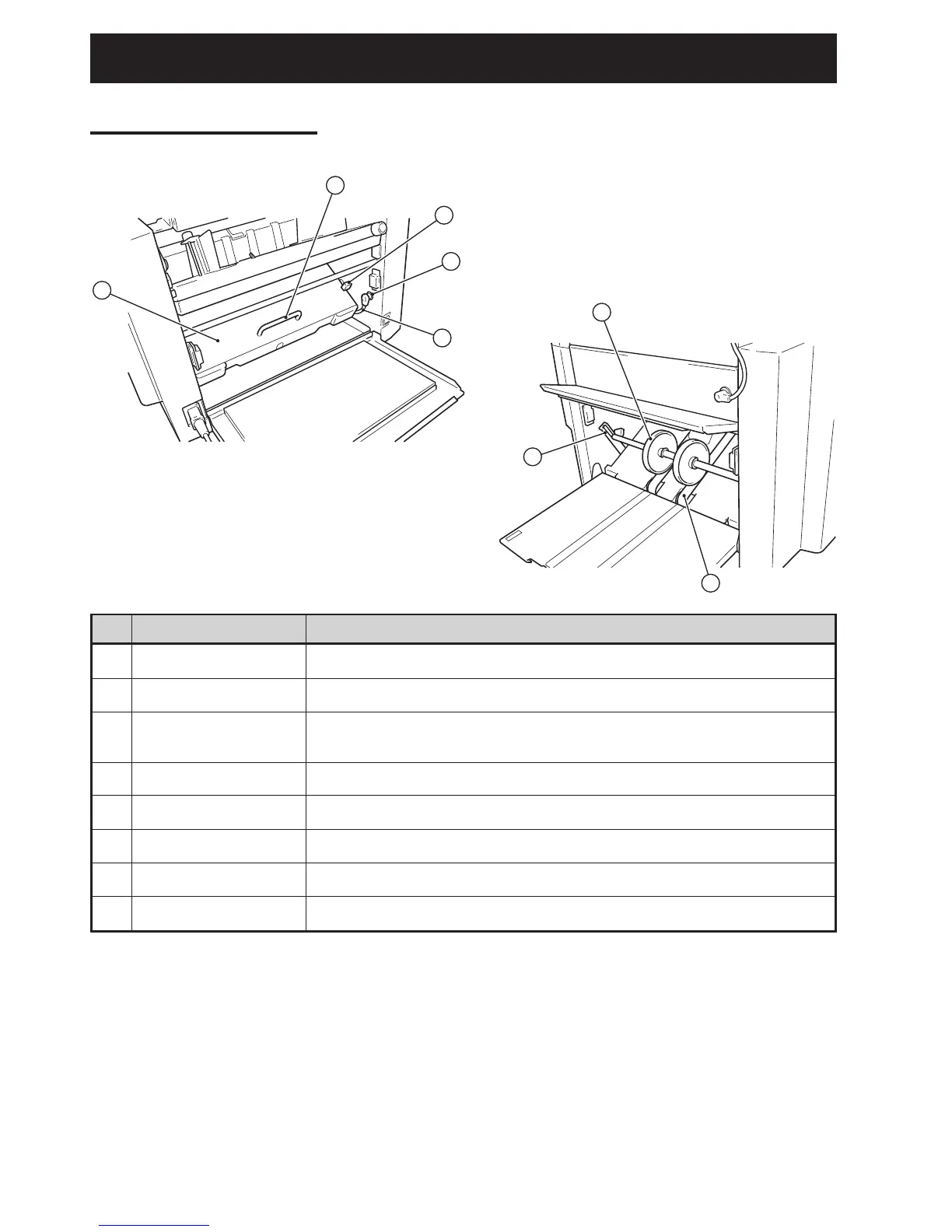

5. NAMES AND OPERATION OF PARTS
5-2. Internal Parts
<Inside side cover>
17
18
19
21
20
23
22
24
<Inside paper ejection section cover>
