Duplo DF-920 User Manual

52

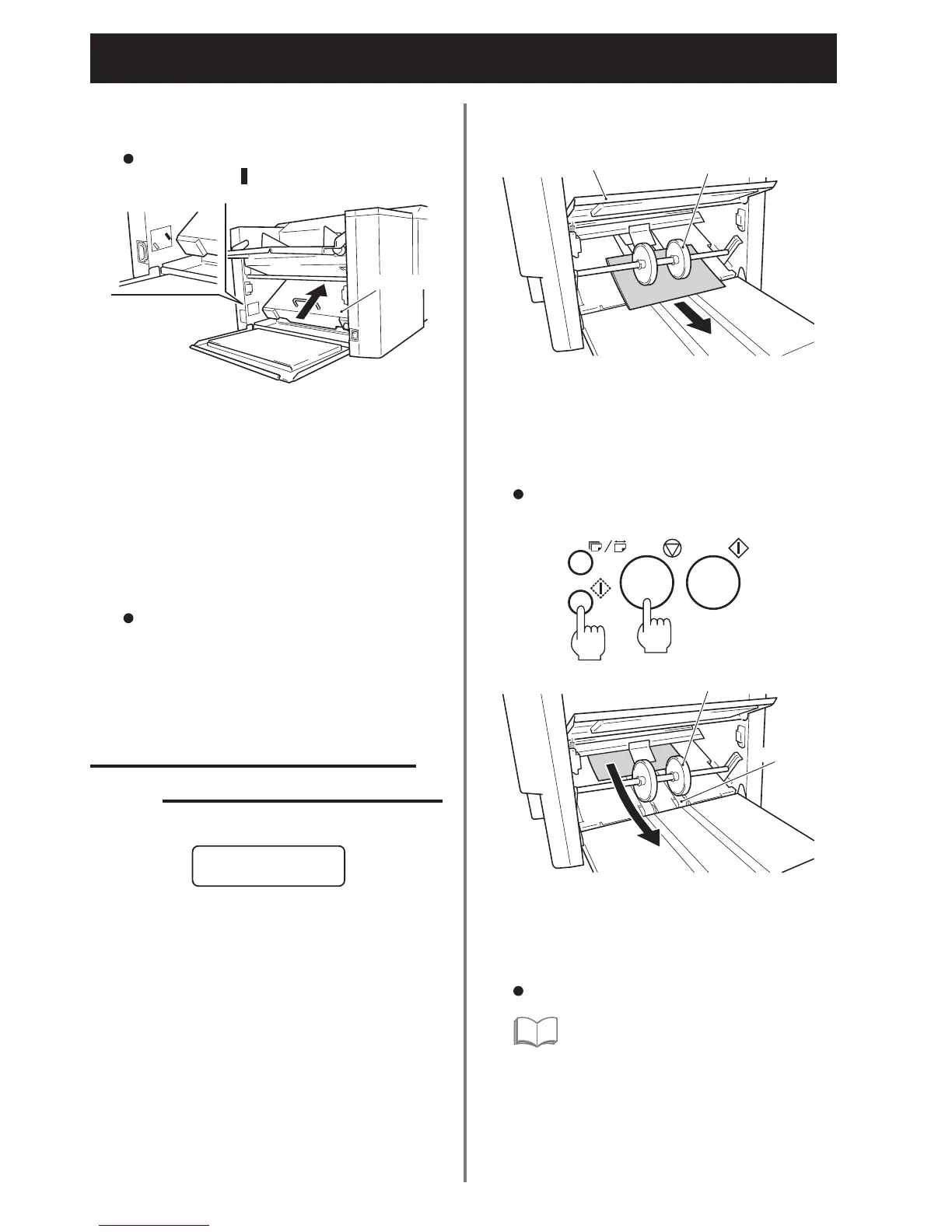

18. WHEN PAPER JAMMING OCCURS
Stacker roller
Stacker roller
1
2
Folding plate 2
Paper ejection section cover
Stacker belt
After completing the above, set folding
plate 2 back to the original position.
Set folding plate 2 in the reverse order of step 4.
Secure at the “1 (
)” mark.
6
Push the lock lever towards “LOCK”,
and insert control cord 2 into the No.2
connector.
7
Rotate the jam correction knob to
check that folding plate 2 is secured. If
the knob rotates smoothly, it means
that folding plate 2 is secured.
If not secured properly, the LCD will show “F.PLAT-2
SET ERR” when the power is turned on.
8
Close the top cover and side cover.
9
18-7. When Paper Jams at
Paper Ejection Section
The LCD shows “JAM EXIT”.
JAM EXIT
Open the paper ejection section cover,
and check that paper is jammed at the
paper ejection section.
1
If the paper has come to the front of the
stacker roller, pull out the paper.
2
If the paper has jammed deep inside
the stacker roller, run the folding roller
and stacker belt to eject the jammed
paper.
While pressing the stop key, press the test key. The
folding roller and stacker belt start running.
3
Close the paper ejection section cover,
and check the paper ejection state in
test folding.
If the paper is not ejected smoothly, adjust the position
or height of the stacker roller.
“16. STACKER ROLLER” (
☞
p.44)
4
SeeSee
