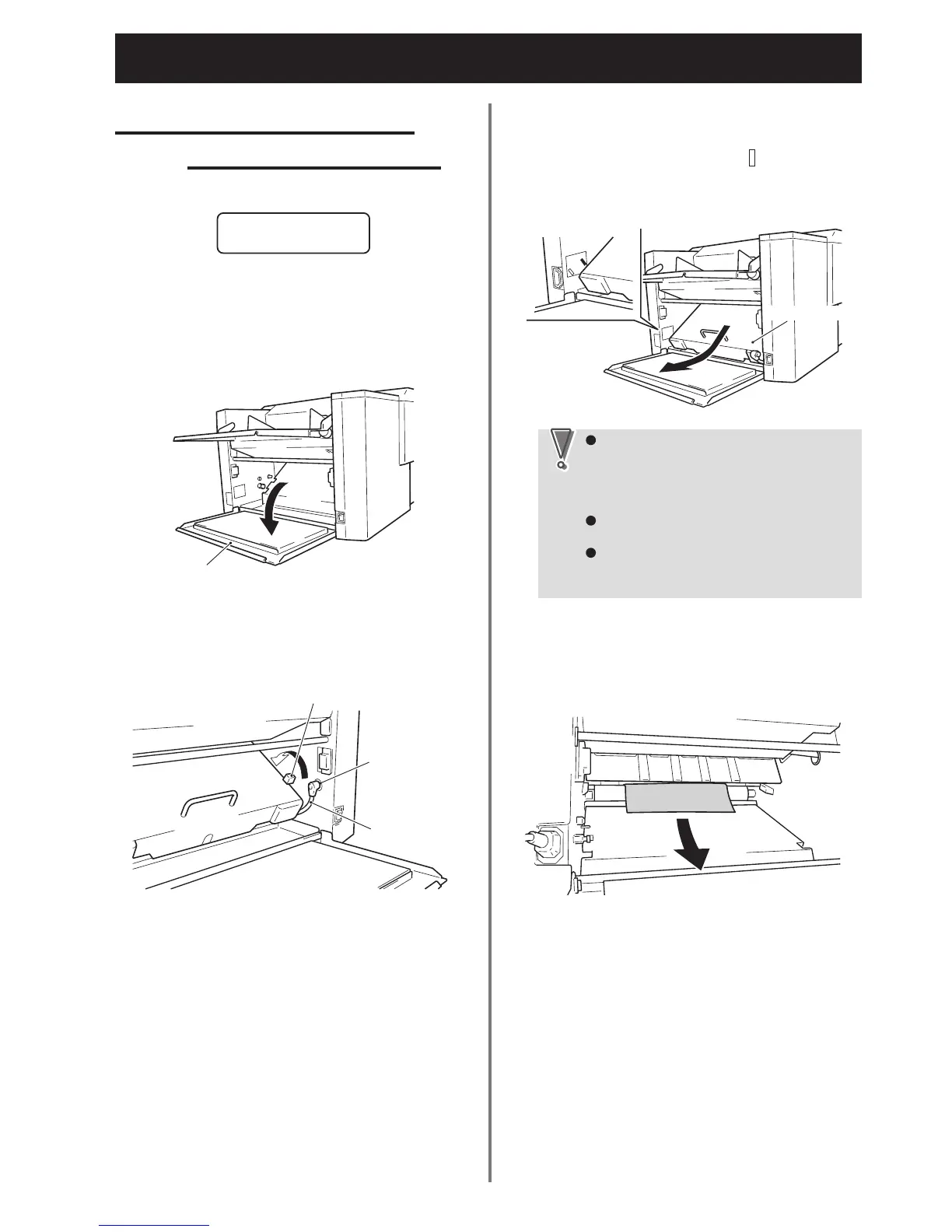

Folding plate 2
Disconnect control cord 2 of folding
plate 2 from the No.2 connector, and
release the lock lever.
3
Remove folding plate 2.
q While slightly lifting the handle, slide folding
plate 2 downwards to the “2 ( )” mark.
w While slightly lifting the handle, further slide
folding plate 2 downwards and remove.
4
To ensure safety, be sure to follow the
above procedure. Performing this work
incorrectly may result in folding plate 2
dropping, injuries, or damage of folding
plate 2.
Be sure to hold folding plate 2 holding
the handle with both hands.
Do not subject folding plate 2 to shock,
otherwise it may damage, folding
accuracy will drop.
NoteNote
Open the top cover, and while rotating
the jam correction knob, pull out the
jammed paper.
5
