6. CONTROL PANEL

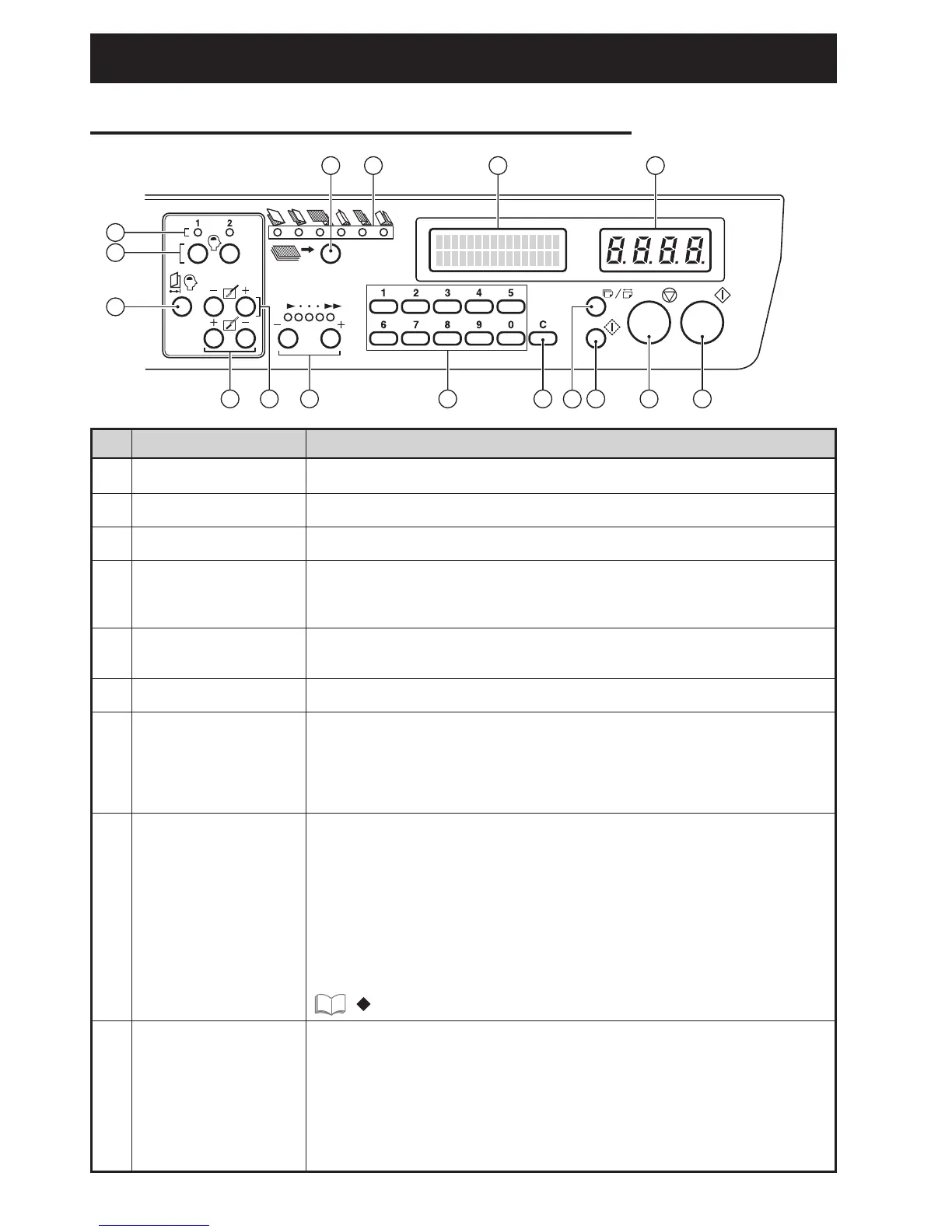

6-1. Names and Operation of Control Panel
Press to start paper folding.
Press to stop paper folding.
Press to test fold two sheets of paper.
Press to switch between the mode for entering the number of sheets to be
processed and that for entering the paper length.
When entering the paper length, register the value entered with this key.
Press to change or erase the number of sheets to be processed or paper length
entered.
Press to enter the number of sheets to be processed or paper length.
Press to select the processing speed from five levels.
The processing speed needs to be changed according to the size and thickness
of the paper used.
Pressing the “+” key increases the speed. Pressing the “–” key decreases the
speed.
Press to adjust the position (folding position) of the folding stopper of folding
plate 1.
Every time the “+” key on the right is pressed, the folding stopper moves in
direction A shown in the figure on the next page. Every time the “–” key on the
left is pressed, the folding stopper moves in direction B shown in the figure on
the next page.
The folding stopper moves by 0.005" every time the key is pressed. Pressing this
key continuously moves the folding stopper continuously within the range set.
If the paper is more than ±0.2" of standard paper size, take it to be non-standard
size paper instead of adjusting the folding position with this key.
“ Correction range” (
☞
p.27)
Press to adjust the position (folding position) of the folding stopper of folding
plate 2.
Every time the “+” key on the left is pressed, the folding stopper moves in
direction A shown in the figure on the next page. Every time the “–” key on the
right is pressed, the folding stopper moves in direction B shown in the figure on
the next page.
The other functions are the same as the i Folding plate 1 folding stopper
adjusting key.
No. Name Operation
q
w
e
r
t
y
u
i
o
Start key
Stop key
Test key
No. of sheets/Paper
length key
Clear key
Numerical keys (0 to 9)
Speed key
Folding plate 1 folding
stopper adjusting key
Folding plate 2 folding
stopper adjusting key
SeeSee
13
9
10
11
12
7 6 5
4
3 2 1
14 15 16
8
