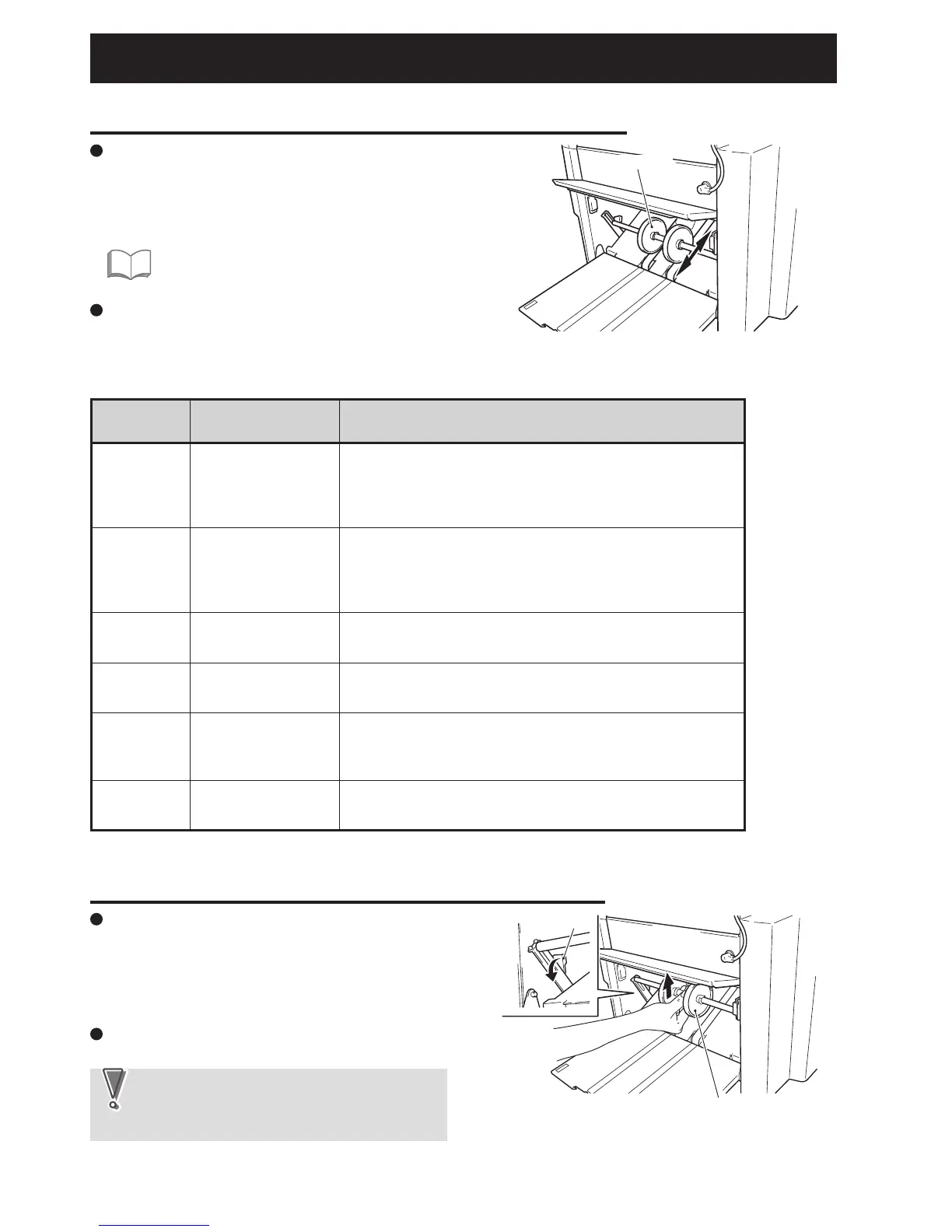

16. STACKER ROLLER
16-1. Changing the Stacker Roller Position
If paper ejection conditions are poor, there is
a need to change the position of the stacker
roller. Pressing a numerical key between 1
and 6 while pressing the stop key moves the
stacker roller.
Step 6 in “12-2. Operation Procedure”
(
☞
p.36)
Refer to the following table for the position
for setting the stacker roller according to the
folded paper length.
SeeSee
Stacker roller
Numerical
key setting
1
2
3
4
5
6
Folded paper
length
To 3.35"
3.36" to 4.13"
4.14" to 4.72"
4.73" to 5.31"
5.32" to 5.91"
From 5.92"
Approximate stacker roller set position
Applicable standard paper size and folding mode
LTR ........... Double fold
LGL ........... Double fold
STMT ........ Double fold, letter fold, accordion fold
INV ............ Double fold, letter fold, accordion fold
LGR........... Double fold
LTR ........... Letter fold, accordion fold
STMT ........ Irregular accordion fold, brochure fold
INV ............ Irregular accordion fold, brochure fold
STMT ........ Single fold
INV ............ Single fold
LGL ........... Letter fold, accordion fold
LTR ........... Brochure fold
LGR........... Letter fold, accordion fold, brochure fold
LGL ........... Brochure fold
LTR ........... Single fold, irregular accordion fold
LGR........... Single fold, irregular accordion fold
LGL ........... Single fold, irregular accordion fold
16-2. Changing the Stacker Roller Height
Some thick and stiff paper may not be
ejected smoothly because they may open
up after folding. If this happens, change the
height of the stacker roller and widen the
space for the paper to pass in ejection.
Lift the stacker roller and hold it with sub-
support.
After completing folding operations, be sure to
return the stacker roller to the standard position.
Leaving it in the raised state will result in poor
alignment of ejected paper.
NoteNote
Sub-support
Stacker roller
To Next Page
