Before Using This Machine
1

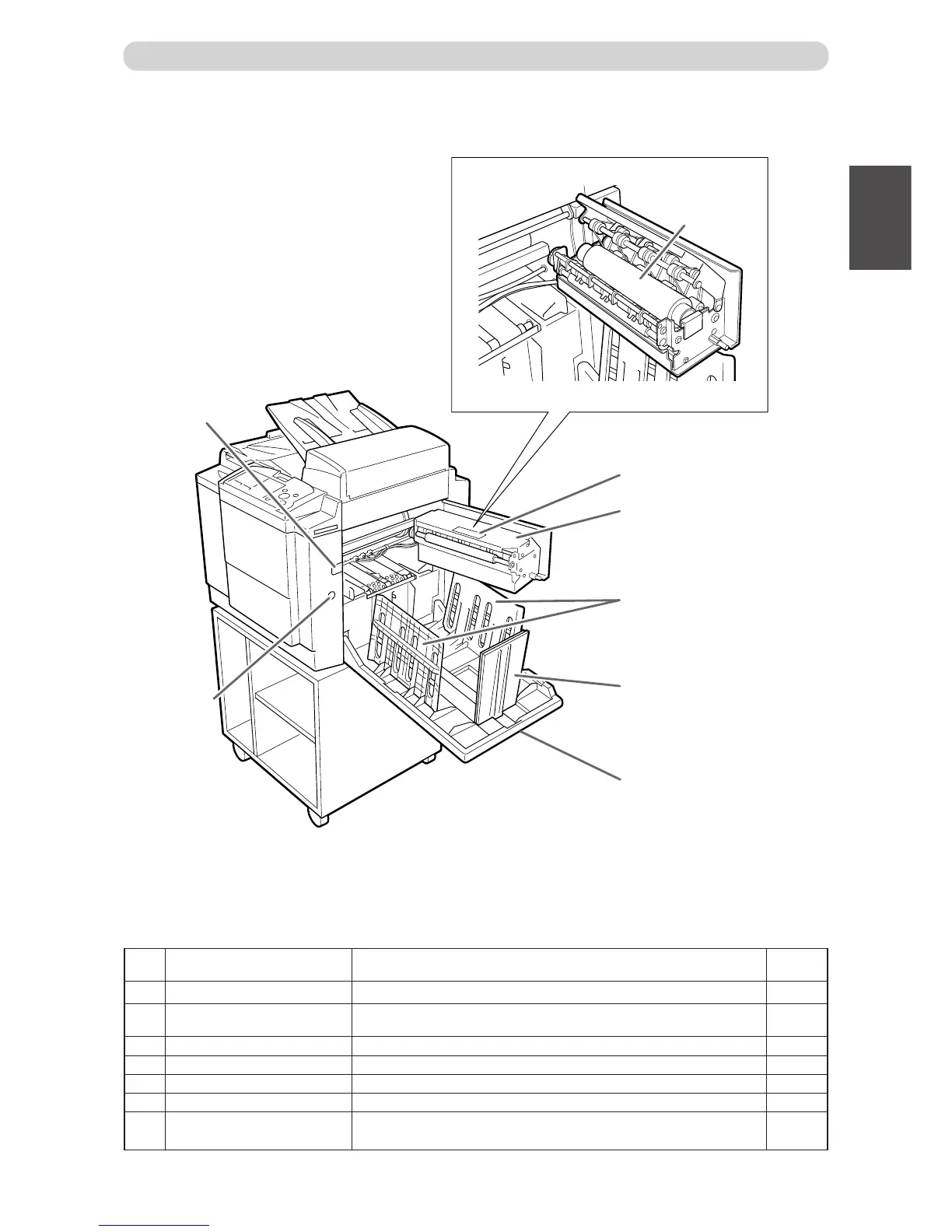

Part Names and Their Functions
No. Name Function
!5 Plate ejection box release lever Press to open the master ejection box.
!6 JOG switch Press and hold to rotate the drum for a set time. Use to remove
paper jams, etc..
!7 Print tray Holds the printed paper.
!8 Paper stopper Slide to match the size of printed paper.
!9 Paper stacker guides Slide to match the size of printed paper.
@0 Master ejection box Open to replace the master ejection core, etc..
@1 Plate ejection box lid release lever Press to open the top of the master ejection core box. Use when
replacing the master ejection core, etc..
Reference
page
—
—
43
44
43
78
78
Master ejection
core
!5
!6
!7
@0
!8
!9
@1
