Installing the UPS
NOTE 1 Do not make unauthorized changes to the UPS; otherwise, damage may occur to
your equipment and void your warranty.
NOTE 2 Do not connect the UPS power cord to utility until after installation is completed.
To install the UPS:
1. Remove the UPS front cover (see Figure 14).
To remove the cover, push down on the top of the cover and pull the cover toward you to unclip it from the
cabinet.
NOTE A ribbon cable connects the LCD control panel to the UPS. Do not pull on the cable
or disconnect it.
NOTE Leave
ribbon cable
connected.

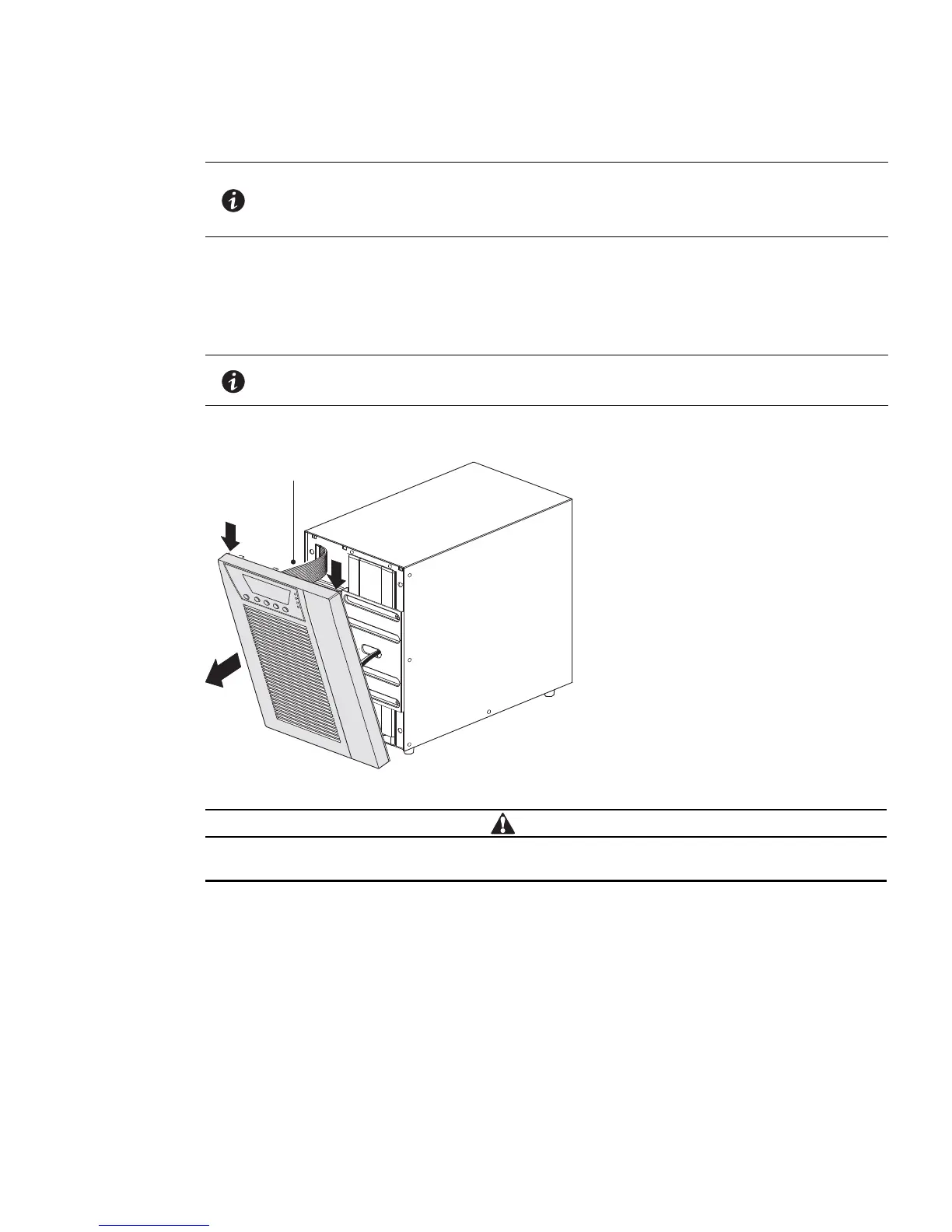

Figure 14. Removing the UPS Front Cover
A small amount of arcing may occur when connecting the internal batteries. This is normal and will
not harm personnel. Connect the cables quickly and firmly.
2. Connect the internal battery connector (see Figure 15).
Connect the white connectors together, connecting red to red, and black to black. Press the two parts
tigh
tly together to ensure a proper connection.
