2. Installation
2.3 Mounting
2.3.1.2 Screw mounting
Fixing brackets ZB4-101-GF1 that can be inserted on the rear of the easyE4 devices are
required for screw fixing.
These feet are available as an accessory – please refer to → Section " Accessory
devices", page 24.

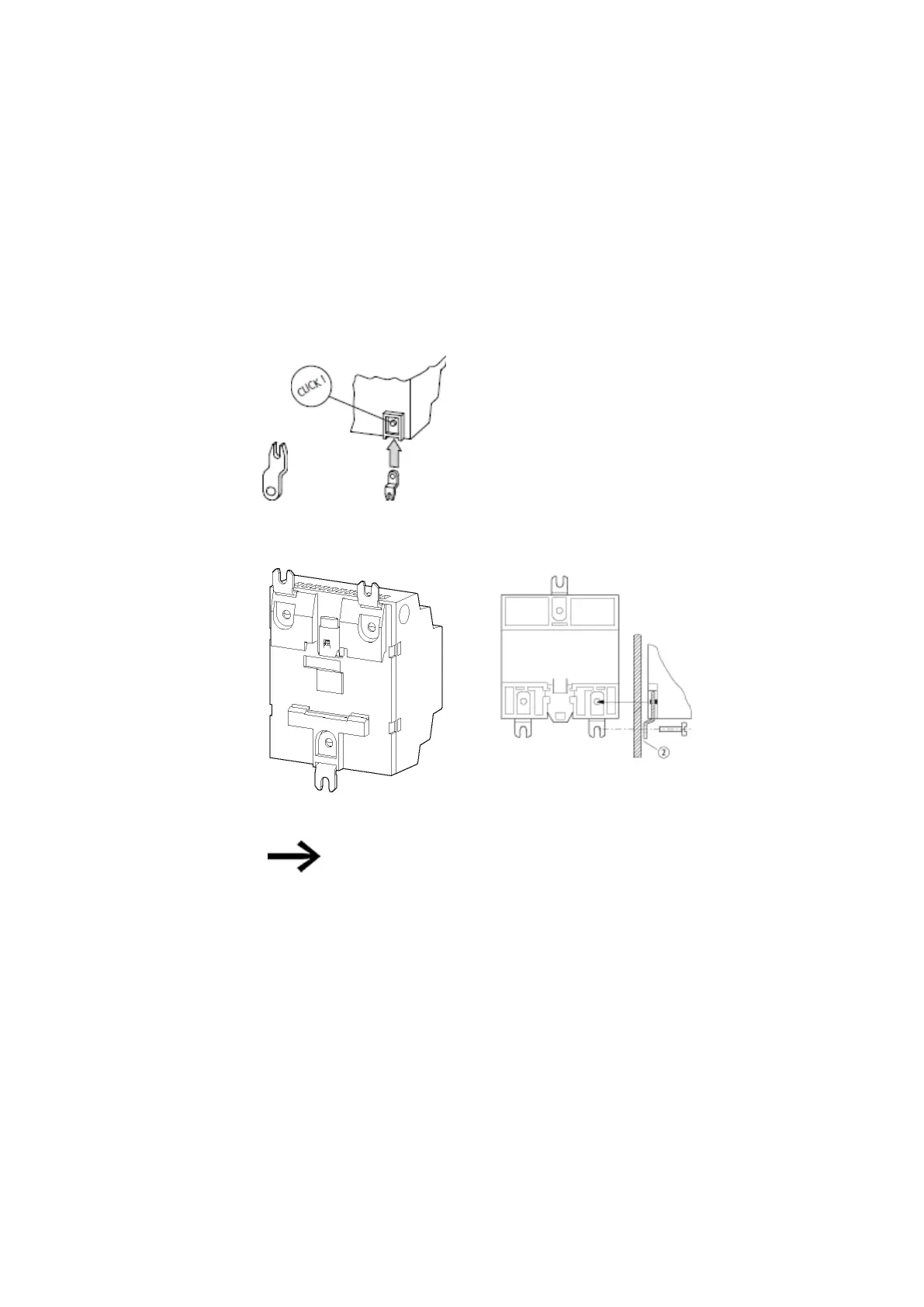

Figure 8: Inserting a fastening bracket.
Figure 9: Screw mounting configuration for a device
The base devices and the EASY-E4-UC-16RE1 and EASY-E4-
DC-16TE1(4SU) expansions require three feet each,
while the EASY-E4-UC-8RE1, EASY-E4-DC-8TE1, and EASY-E4-
DC-6AE1 expansions require two each.
