2. Installation
2.4 Connection terminals
2.4.7 Analog I/O expansion device
The EASY-E4-DC-6AE1 features four analog inputs and two analog outputs. You can use
easySoft 7 to set the operating mode for each analog input and analog output.
The following options are available:
Resolution, analog
Resolution, digital
value
0 – 10 V
12 bits
0 - 4095
4 – 20 mA
12 bits
820 - 4095
0 – 20 mA
12 bits
0 - 4095
For all analog inputs, you can configure noise suppression, averaging, and an update
rate in easySoft 7.
Project view
Figure 21: Device parameters tab

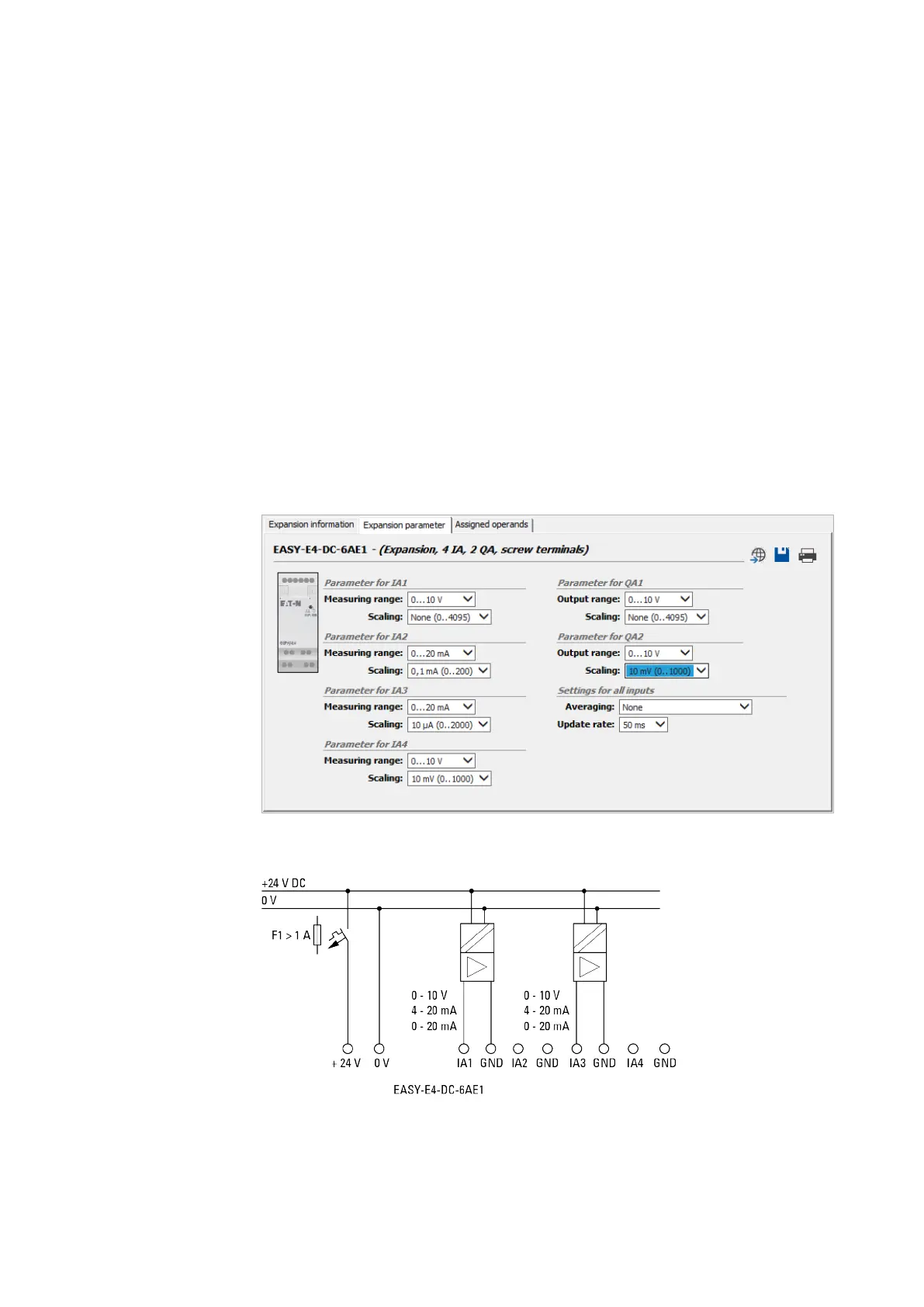

Figure 22: Connecting analog inputs EASY-E4-DC-6AE1
58
easyE4 11/18 MN050009 EN www.eaton.com
