2. Installation
2.4 Connection terminals
more than one driven output with an inductive load can be switched off, you must
provide these inductive loads with a suppressor circuit.

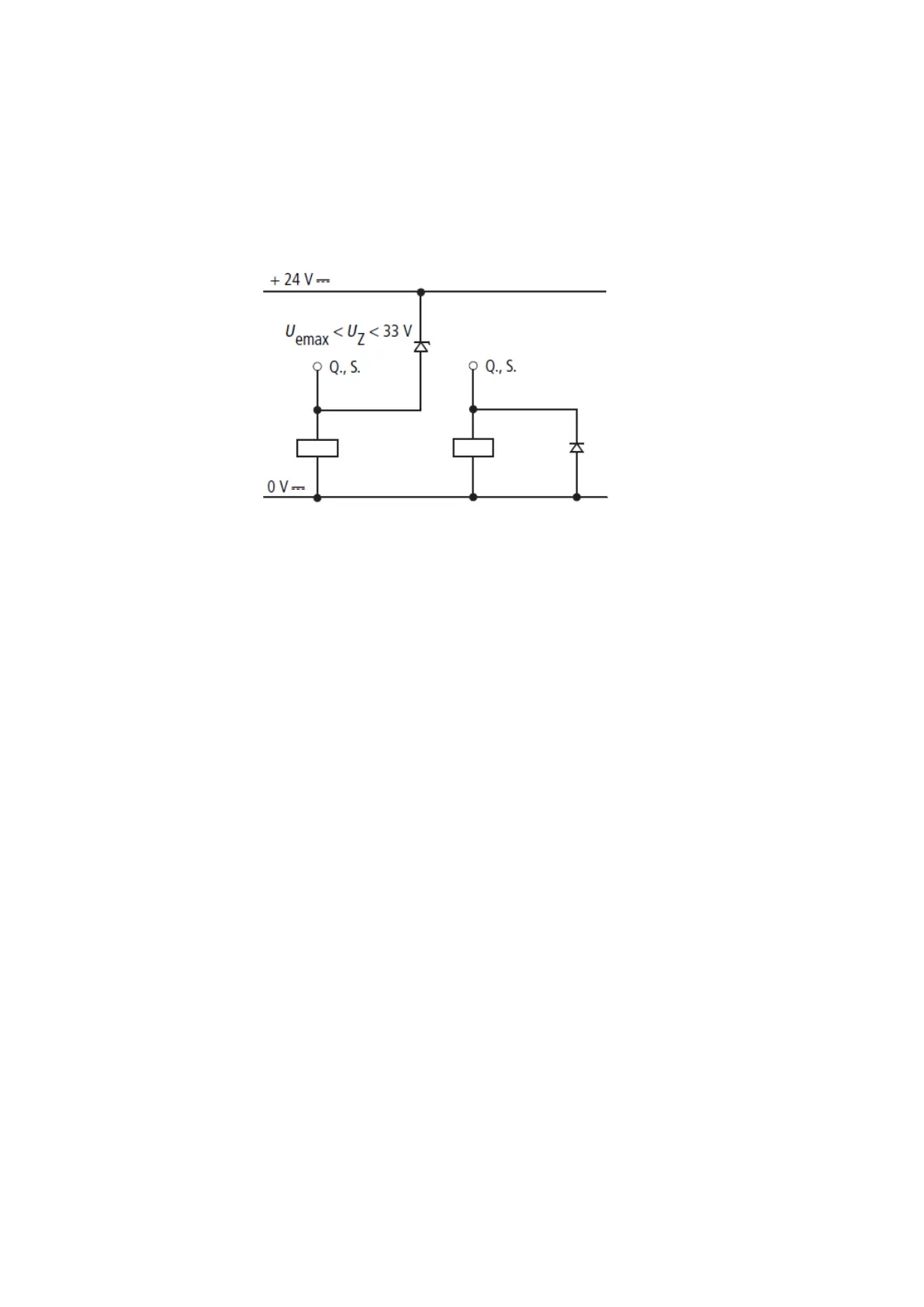

Figure 20: Inductive load with suppressor circuit
56
easyE4 11/18 MN050009 EN www.eaton.com
