Explosion-protected, light alloy Ex-d (e) control stations and
distributions, Series: GHG 64
Poti
14
13
22
21
14
13
22
21
14
13
24
23
12
11
22
21
14
13
22
21
14
13
22
21
14
13
24
23
12
11
22
21
Mushroom-head push button
with twist release
Mushroom-head push button with key release
14
13
22
21
14
13
22
21
14
13
24
23
12
11
22
21
Key switch
14
13
22
21
14
13
22
21
14
13
22
21

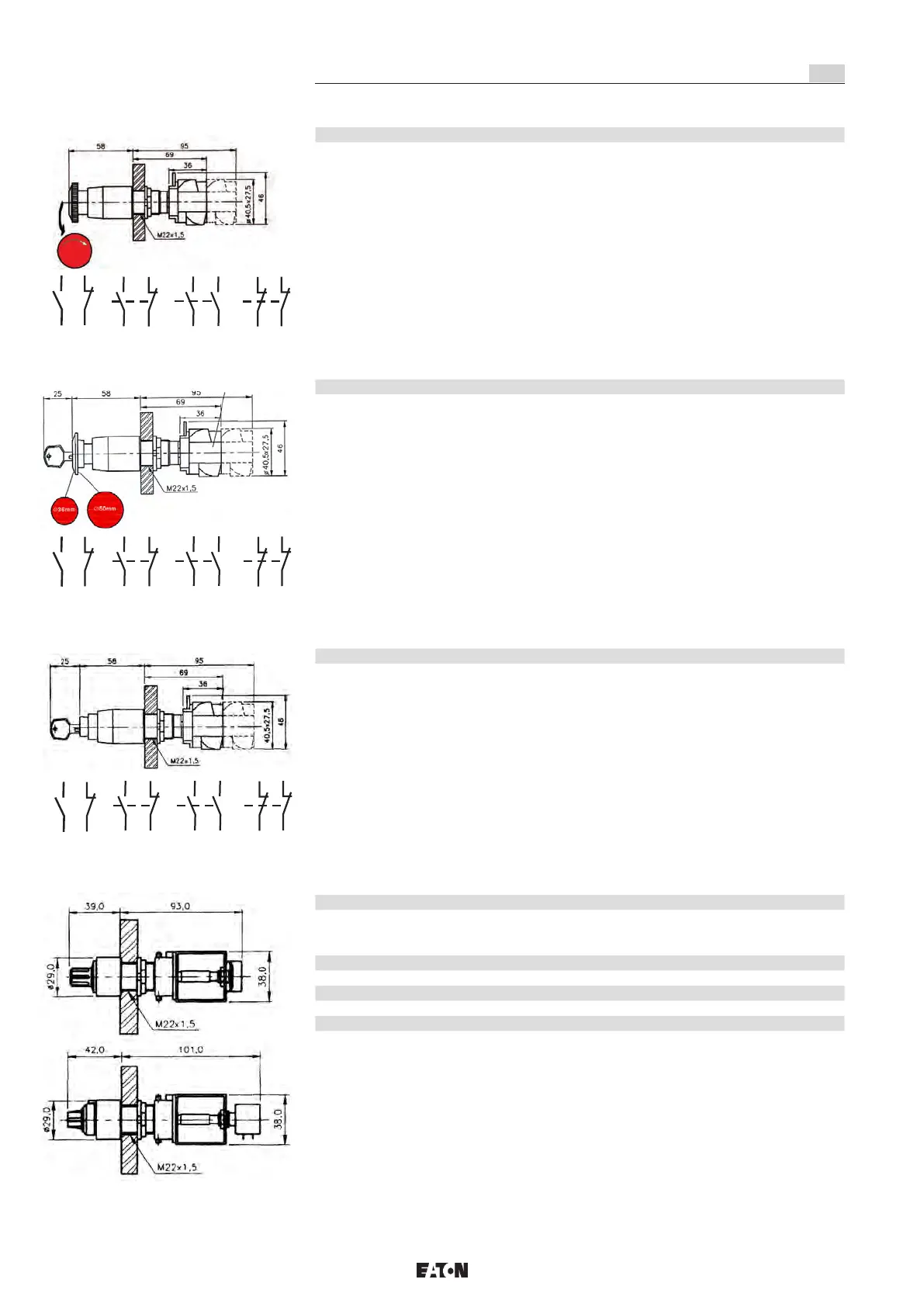

1.2.2.5 Mushroom-head push button with twist release
Degree of protection to IEC/EN 60529 IP 66
Weight 1 contact element 1 contact acc. 0.118 kg
1 contact element 2 contacts acc. 0.126 kg
2 contact elements 4 contacts acc. 0.154 kg
1.2.2.6 Mushroom-head push button with key releases
Degree of protection to IEC/EN 60529 IP 66
Weight
Pilz d= 36 mm 1 contact element 1 contact acc. 0.178 kg
Pilz d= 36 mm 1 contact element 2 contacts acc. 0.186 kg
Pilz d= 50 mm 2 contact elements 4 contacts acc. 0.214 kg
1.2.2.7 Key switch
Degree of protection to IEC/EN 60529 IP 66
Weight 1 contact element 1 contact acc. 0.172 kg
1 contact element 2 contacts acc. 0.178 kg
2 contact elements 4 contacts acc. 0.208 kg
1.2.1.4 Potentiometer
Degree of protection to IEC/EN 60529 IP 65
Rated voltage up to 250 V
Typw 1 (BPCO) Typw 2 (BPMV)
single turn wire multiturn
Rating 0.1 W 2 W
Rotating angle 315° 360°
Range 0 - 100 %
Terminal 2 x 2,5 mm²
Weight 0.138 kg 0.156 kg
