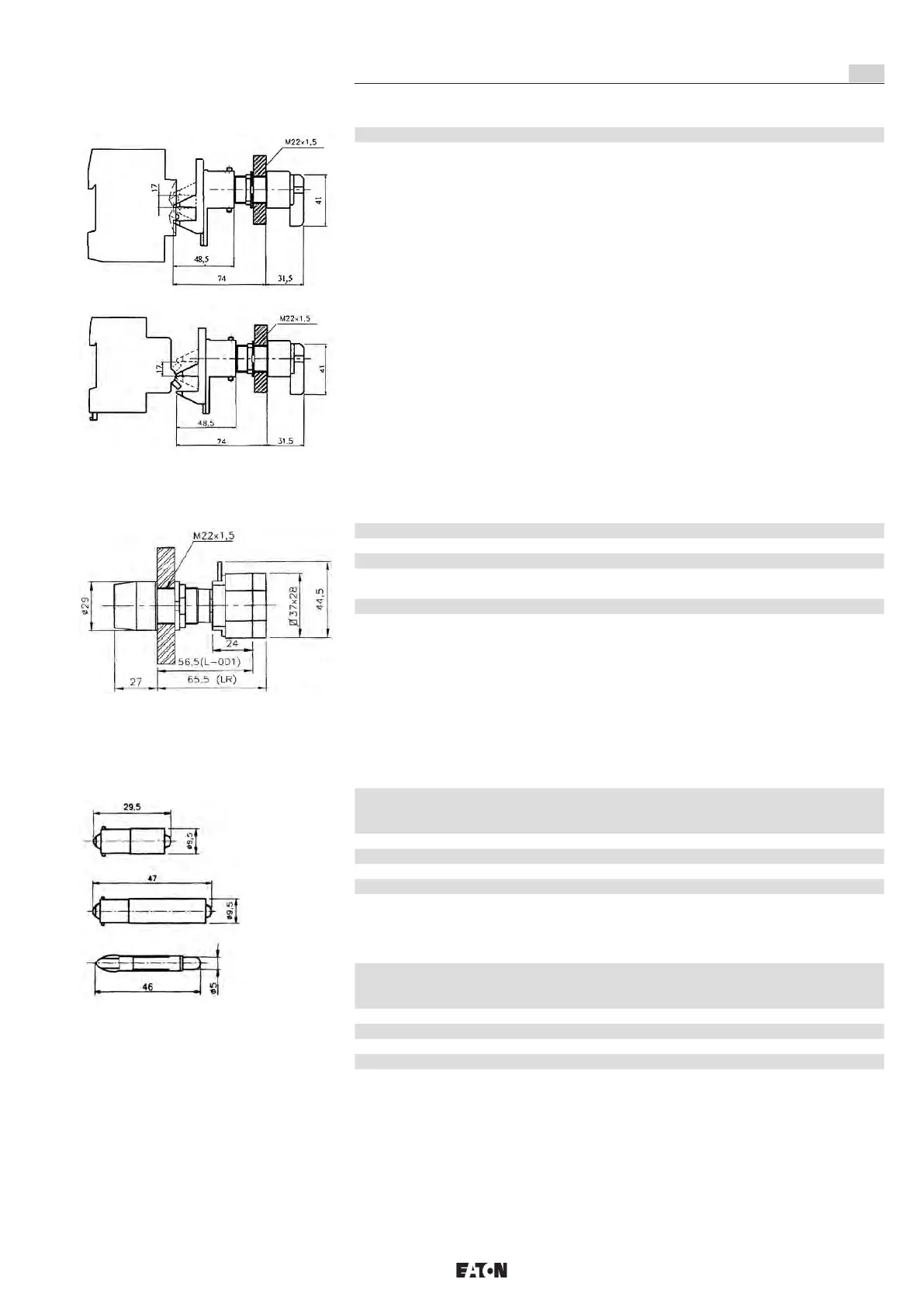

Eaton Ex-Lite N Operating Instructions

25
GB
Explosion-protected, light alloy Ex-d (e) control stations and
distributions, Series: GHG 64
1.2.6 Main current switch actuator unit
Degree of protection to IEC/EN 60529 IP 66
Weight 0.12 kg
1.2.7 Signal lamp
Degree of protection to IEC/EN 60529 IP 66
Rated voltage LED 12 V - 250 V AC/DC
Rated power approx. 2.6 W
Permissible ambient temperature -40° C up to +55° C (catalogue version)
(Special versions permit deviating temperatures.)
Terminals 2 x 2.5 mm²
Weight approx. 0.066 kg
1.2.8 LED BA 9S
Rated voltage 12 V AC / DC 24 V AC / DC
130 V AC / DC 220 V AC / DC
12 V to 30 V AC / DC
Rated current approx. 8 m A
Rating approx. 0.8 W
Permissible ambient temperature -30° C to +75° C
Beam angle 24°
Holder BA9S
1.2.9 LED "Teleslide"
Rated voltage 12 V AC / DC 24 V AC / DC
130 V AC / DC 220 V AC / DC
12 V to 30 V AC / DC
Rated current approx. 8 m A
Rating approx. 0.8 W
Permissible ambient temperature -30° C to +75° C
Beam angle 24°
Holder Teleslide
Signal lamp
LED
LED BA9S
"long"
LED BA9S
Standard
LED
Teleslide
Main current switch actuator unit
