3. Operation
3.1 Start-Up and Normal Operation
i
For the initial start-up, AC power must be present to detect any wiring errors. After inital start-up, the UPS can
start even if AC power is not present.
UPS personalization
i
If UPS personalization is desired, it is advised to enter the personalization mode at this time.
This mode may be entered using the buttons on the control panel or the Personal Solution-Pac Software (Windows)
included on the Solution-Pac CD-ROM provided by EATON.

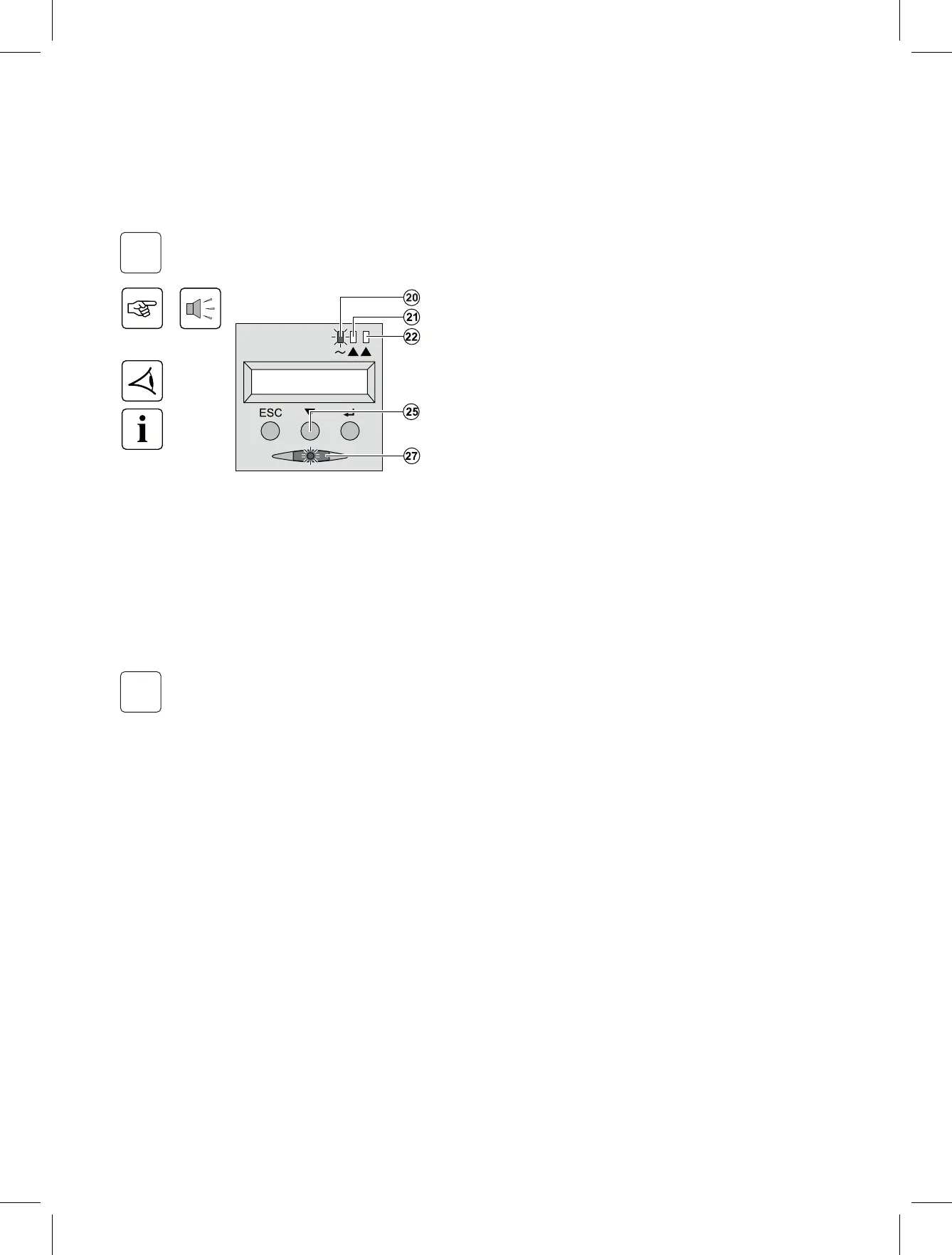

Press button (27) for approximately 1 second.
w The buzzer beeps once and all the LEDs go
ON simultaneously.
w The buzzer then beeps twice during the
self-test, then button (27) remains ON,
indicating power to the output receptacles.
The connected devices are protected by
the UPS.
w LED (20) is ON.
If LED (22) is ON, a fault has occurred (see
the “Troubleshooting” section).
w During normal operation, the scroll
button (25) may be used to read UPS
measurements (voltage on normal and
bypass AC inputs, operating mode, battery
capacity and UPS serial number).
