Eaton Matrix 2000 User Manual

Maintenance
Copyright © 2017 Eaton Corporation. All Rights Reserved.
IPN 997-00012-72C July 2017
17

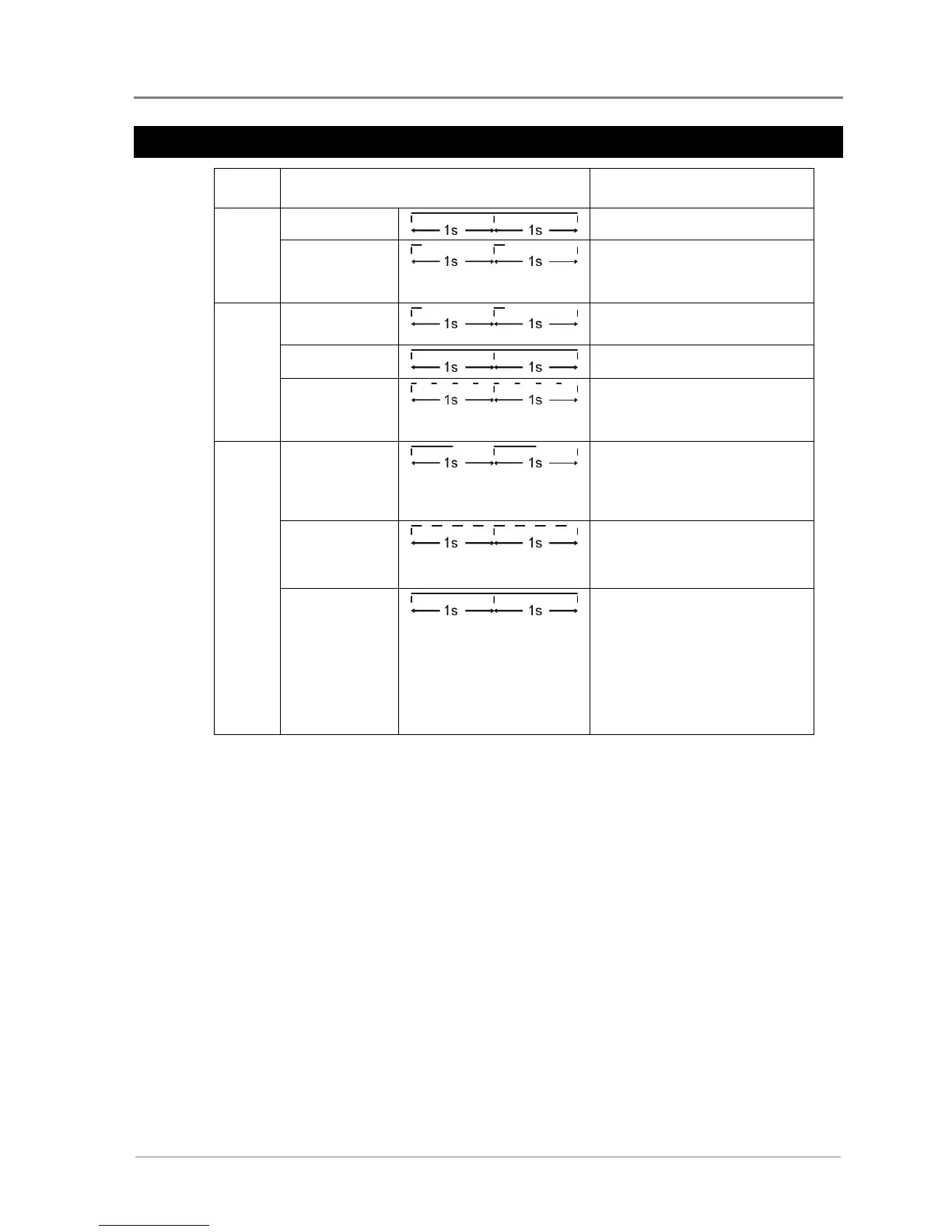

LED display status (Low to High Priority)
LED
LED Signal
Status
Green
Continuous
Normal operation.
Short Slow Flash
(1Hz)
Either:
1. Power On. Refer to note.
2. Shut down remotely.
Yellow
Short Slow Flash
(1Hz)
Power On. Details refer to note.
Continuous
Over Load (Load > 105%)
Short Fast Flash
(4Hz)
Either:
1. DC input abnormal.
2. AC input abnormal.
Red
Slow Flash (1Hz)
Either:
1. EEPROM Fault.
2. Inverter Fan Fault. Fan fails to
operate.
Fast Flash (4Hz)
Either:
1. Internal fault.
2. Temperature High.
Continuous
Either:
1. The dc input voltage polarity is
reversed.
2. Inverter output short circuit.
3. Abnormal output voltage.
4. Negative Power Protection.
5. Overload fault.
Notes:
Power On: In Power On mode, the green LED and the yellow LED flash together without any
alarm.
Overload and Overload Fault:
When an Overload Fault alarm occurs, the yellow LED and red LED turn on together. When an
Overload alarm occurs, only the yellow LED turns on.
Priority:
If more than one warning exists at the same time, then the LED will display the highest priority.
