Eaton Matrix 2000 User Manual

Matrix Standalone Inverter
2
Copyright © 2017 Eaton Corporation. All Rights Reserved.
IPN 997-00012-72C July 2017

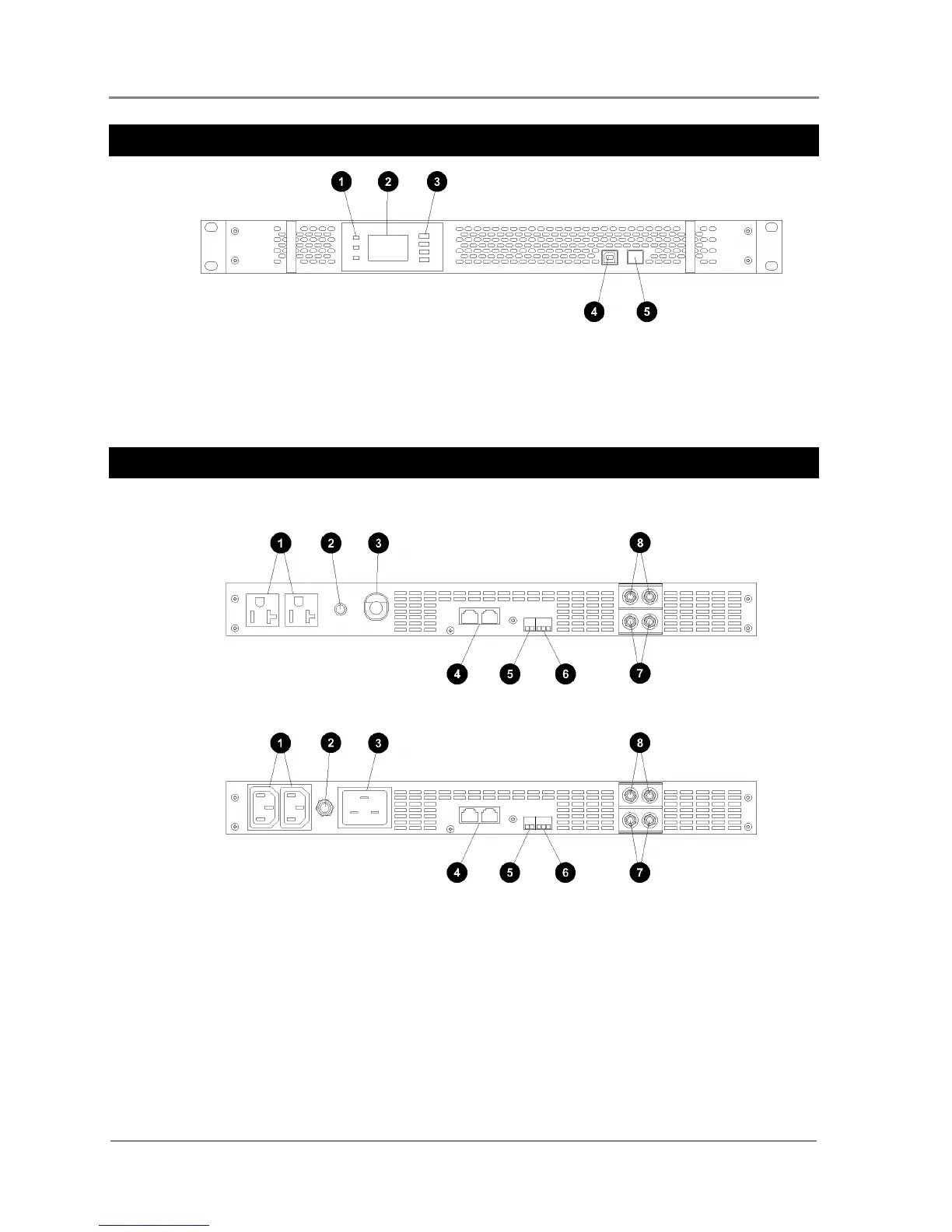

Front View

LEDs: Power (green), minor alarm (yellow), major
alarm (red). See Troubleshooting on page 16.

LCD screen. See Menu details on page 10.

Keypad

USB 1.1 connector (reserved for future use)

ON/OFF power switch
Rear Views
120V Model
230V Model

AC output connectors (see Specifications on page
20).

AC input circuit breaker. Push in to reset.

120V models: AC input cord, 230V models: AC
input connector (see Specifications on page 19).

Parallel signal port (reserved for future use).

Remote on/off connector/screw terminals (wire
size: 0.5 - 2.0mm
2
, 20 - 14 AWG). See details on
page 7.

Alarm relay output connector/screw terminals (wire
size: 0.5 - 2.0mm
2
, 20 - 14 AWG). See details on
page 7.

48V dc negative (-) input terminals. 1/4" studs, 5/8"
separation.

48V dc positive (+) input terminals. 1/4" studs, 5/8"
separation.
