elco Combi 24 User Manual

11
Product description

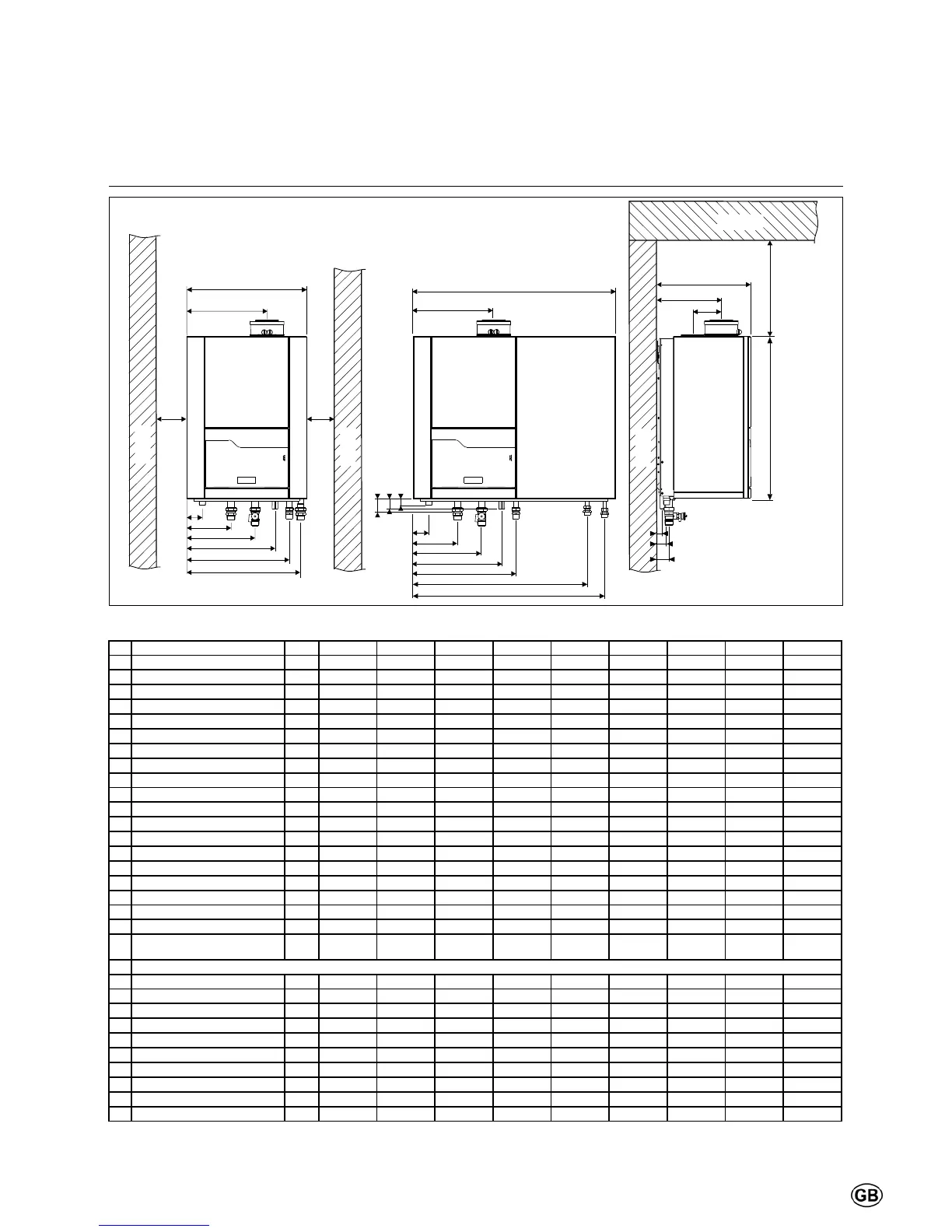

Dimensions of THISION S PLUS
Wall
C
E
F
A
V
U
T
Wall
B
N
P
PQR
B
Wall
D
H
J
K
150150
G
L
H
J
K
G
D
Ceiling
350
S PLUS S PLUS Combi
L
M
Type THISION S PLUS 13 19 24 34 35L 46 54 Combi 24 Combi 34
A Boiler height mm 680 680 680 680 680 680 680 680 680
B Boiler width mm 500 500 500 500 660 660 660 840 840
C Boiler depth mm 385 385 385 385 385 385 385 385 385
D Flue gas nozzle mm 335 335 335 335 495 495 495 335 335
E Air intake mm 120 120 120 120 120 120 120 120 120
F Flue gas nozzle mm 270 270 270 270 270 270 270 270 270
G Gas connection mm 65 65 65 65 65 65 65 65 65
H Boilerowconnection mm 185 185 185 185 185 185 185 185 185
J Boiler return connection mm 285 285 285 285 445 445 445 285 285
K Condensate connection mm 370 370 370 370 530 530 530 370 370
L Expansion vessel mm 430 430 430
M Cylinder return connection mm 475 475 475
N Warm water mm 725 725
P Cold water mm 795 795
Q Connector length of g mm 18 18 18 18 18 18 18 18 18
R Connector length of c mm 40 40 40 40 40 40 40 40 40
S Connector length of v, r, a, k and w mm 60 60 60 60 60 60 60 60 60
T Condensate connection c mm 25 25 25 25 25 25 25 25 25
U Gas connector g mm 40 40 40 40 40 40 40 40 40
V Boilerowandreturnvandr
Cold and warm water k and w
mm 50 50 50 50 50 50 50 50 50
Boiler connections
Flue gas nozzle mm 80 80 80 80 80 80 80 80 80
Air supply connector mm 125 125 125 125 125 125 125 125 125
g Gas connection 3/4"R 3/4"R 3/4"R 3/4"R 3/4”R 3/4"R 3/4"R 3/4"R 3/4"R
v Boilerowconnection mm 28 x 1"R 28 x 1"R 28 x 1"R 28 x 1"R 35 x 1 1/4"R 35 x 1 1/4"R 35 x 1 1/4"R 28 x 1"R 28 x 1"R
r Boiler return connection mm 28 x 1"R 28 x 1"R 28 x 1"R 28 x 1"R 35 x 1 1/4"R 35 x 1 1/4"R 35 x 1 1/4"R 28 x 1"R 28 x 1"R
c Condensate connection mm 24 24 24 24 24 24 24 24 24
a Expansion vessel mm 22 x 3/4"R 22 x 3/4"R 22 x 3/4"R 22 x 3/4"R* 22 x 3/4"R* 22 x 3/4"R* 22 x 3/4"R* 22 x 3/4"R
k Cold water mm 15 x 3/4”R 15 x 3/4”R
w Warm water mm 15 x 3/4”R 15 x 3/4”R
s Cylinder return connection mm 28 x 1"R 28 x 1"R 28 x 1"R 28 x 1”R* 28 x 1"R* 28 x 1"R* 28 x 1"R*
* Only with installed 3-way valve
