Product description
THISION S PLUS Combi
Product description
The THISION S PLUS Combi is a
condensing and modulating gas
boiler with a pre-mix burner, which is
attached to a wall. It is characterized by
the following features:
- A large modulation range that
guarantees a long burner service
life, while minimizing standby
losses, start-up emissions and
material wear-and-tear.
- Flue gas temperature below 80°C
- Flue gas temperature fuse
- Also suitable for operation
independent of room air
- Control panel with all operational
elements
- Microprocessor with a multi-function
display
- Automated ignition, with repetition
and ionization monitoring
- Water pressure monitoring
- Analog manometer
- Energy-saving pump
- Installed safety valve
- Stainless steel heat exchanger with
smooth tube condenser
- Very maintenance-friendly
- Weather-compensated control with
room unit/remote control QAA 55,
or with room unit/remote control
QAA 75/78 (accessory)
- Modern metal panelling, stove-
enamelled
Functional description
Thecontrolunitmodiestheheating
performance to the current heating
requirements of the heating system,
by changing the default values of the
Fan rotating speed. In this regard, the
boilerowtemperatureiscontinually
measured via a sensor. In case of a
deviation of the actual temperature
from the target temperature, the control
unit reacts immediately and adjusts the
RPM of the fan, and with that the boiler
performance via the gas armature. A
deviation can be due to:
- A changed default value of the
boiler temperature, via the LMS 14
heating control unit
- A change on the outdoor
temperature
- Request for warm water
- Changed heating curve
- Changedvolumeowintheheating
system (due to thermostat valves
and mixer)
By means of the integration of the
individual components in a system,
and within the control range of the
equipment, it is ensured that the boiler
performance always corresponds to the
actual heating requirements.
Delivery scope
- Modulating gas burner, with DHW
preparation in a circulation system
- Comfort DHW performance by
meansofanintegratedashtank
14 litres (Combi 24)
25 litres (Combi 34)
- DHW performance
13.4 l/min. (Combi 24)
16.6 l/min. (Combi 34)
at T 30 K, according to EN625
- Installed safety valve
- Outdoor sensor QAC 34
- Room unit/remote control QAA 55

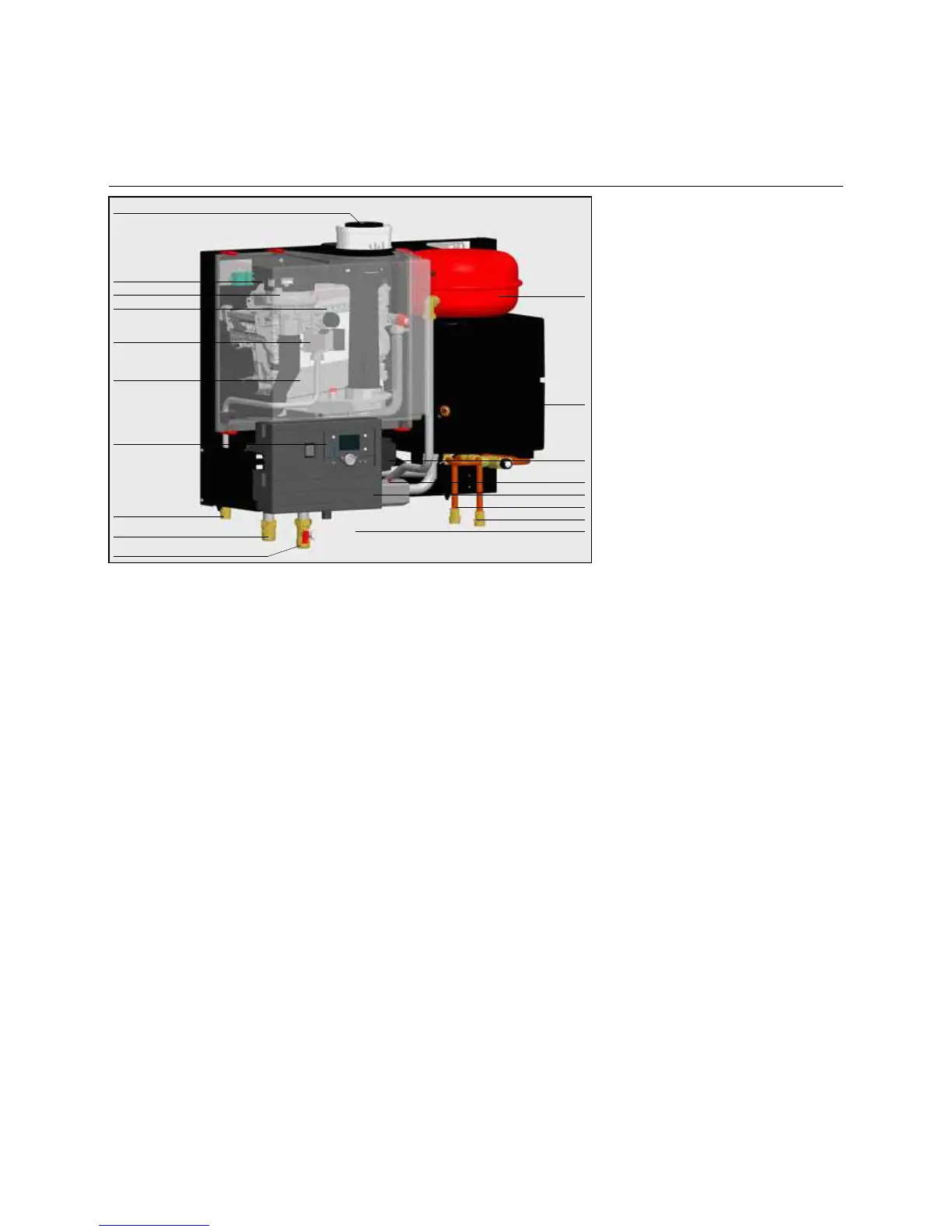

Legend:
1 Gas connection
2 Gas armature
3 Gas burner
4 Flue gas connection
5 Boilerowconnection
6 Boiler return connection
7 Fan 230 V
8 Heat exchanger
9 Control panel with heating manager
10 Boiler pump
11 Expansion vessel connection
(Combi 34)
12 Expansion vessel (Combi 24)
13 3-way valve
14 DHW tank
15 Cold water connection
16 Warm water connection
17 Analog manometer (not visible
here)
18 Flue gas non-return valve
Illustration: THISION S PLUS Combi 24
1
2
4
7
3
8
9
5
6
11
15
16
17
10
14
13
12
18
