Installation
Boiler transport
Boiler transport
The THISION S PLUS is a fully
equipped compact heating system,
which has been pre-set and tested at
the factory.
The dimensions of the packaging are:
- 13, 19, 24, 34:
590 x 990 x 470 mm (WxHxD)
- 35L, 46, 54:
750 x 990 x 470 mm (WxHxD)
- Combi 24 and 34:
930 x 990 x 470 mm (WxHxD)
This makes it possible to transport all
models in one piece through a normal
door. The boiler can be picked up
sideways or from the front with a forklift
truck for transport.

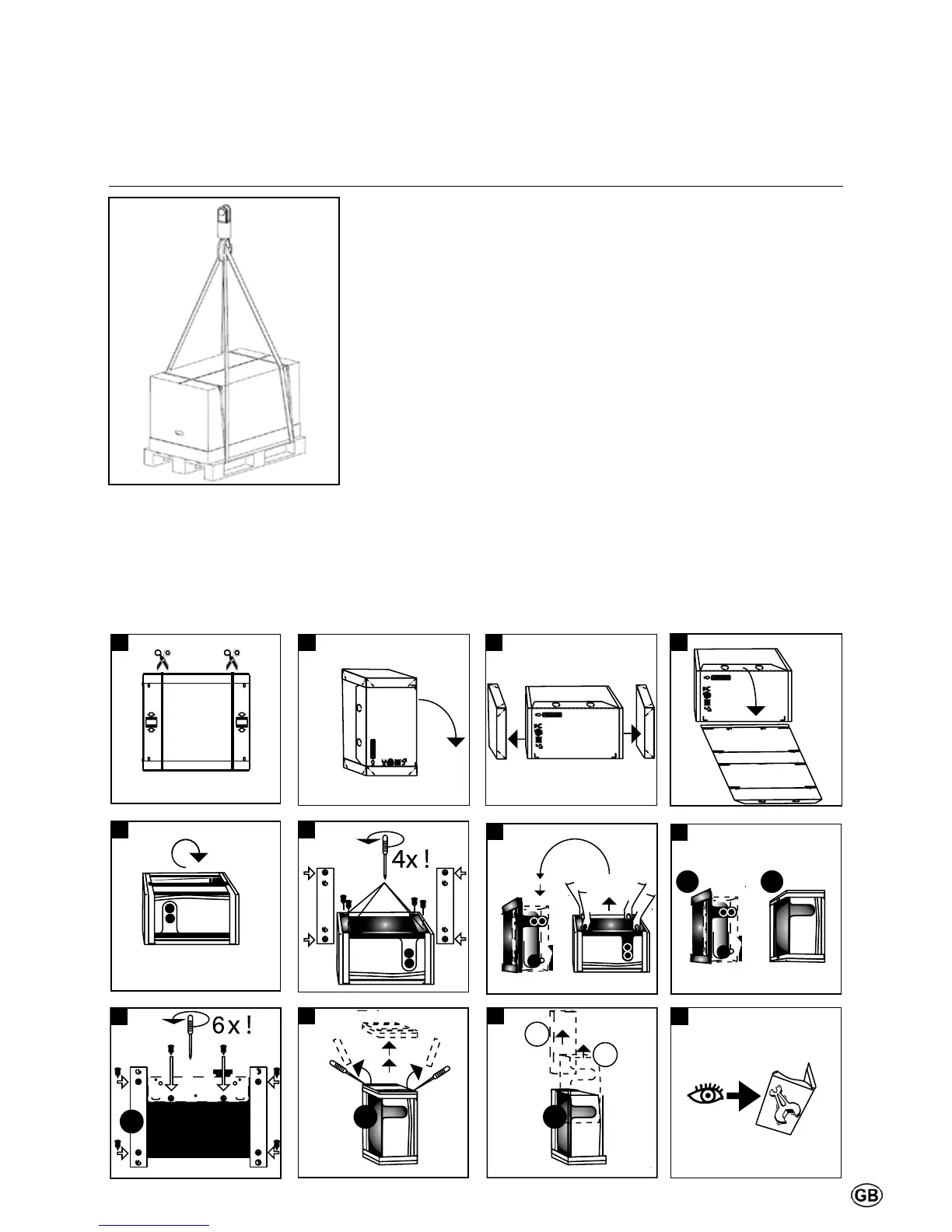

The THISION S PLUS can be
transported with a crane. However,
it must be ensured that the boiler is
attached in its packaging to a pallet.
Loading belts should be attached to the
pallet.
1 2 3
4
7
8
5 6
9
10 11
12
A
1
B
A
B B
2
Unpacking instructions are printed on
the cardboard box. Please follow the
proposed steps.
Disassembly of panelling
The panelling has been packed
separately from the boiler in the
packaging. The panelling of the
boiler should be set aside, before the
assembly and until the boiler is taken
into operation, so as to avoid damage.
Panelling should be attached and
secured with the supplied screw,
after assembly of the boiler, or after
maintenance works.
