Elenos ET5000 User Manual

33
open
collector
23 Bad audio Signaling output
The pin must be po-
wered externally.
“Closed to ground”
status → Active alarm
open
collector
24 /FLT (reversed pola-
rity)
Signaling output
The pin must be po-
wered externally.
“Open” Status → Acti-
ve alarm
The operation can be
affected by the set-
tings of the machine
open
collector
25 Remote Signaling output
The pin must be po-
wered externally.
“Closed to ground”
status → Remote
signal active

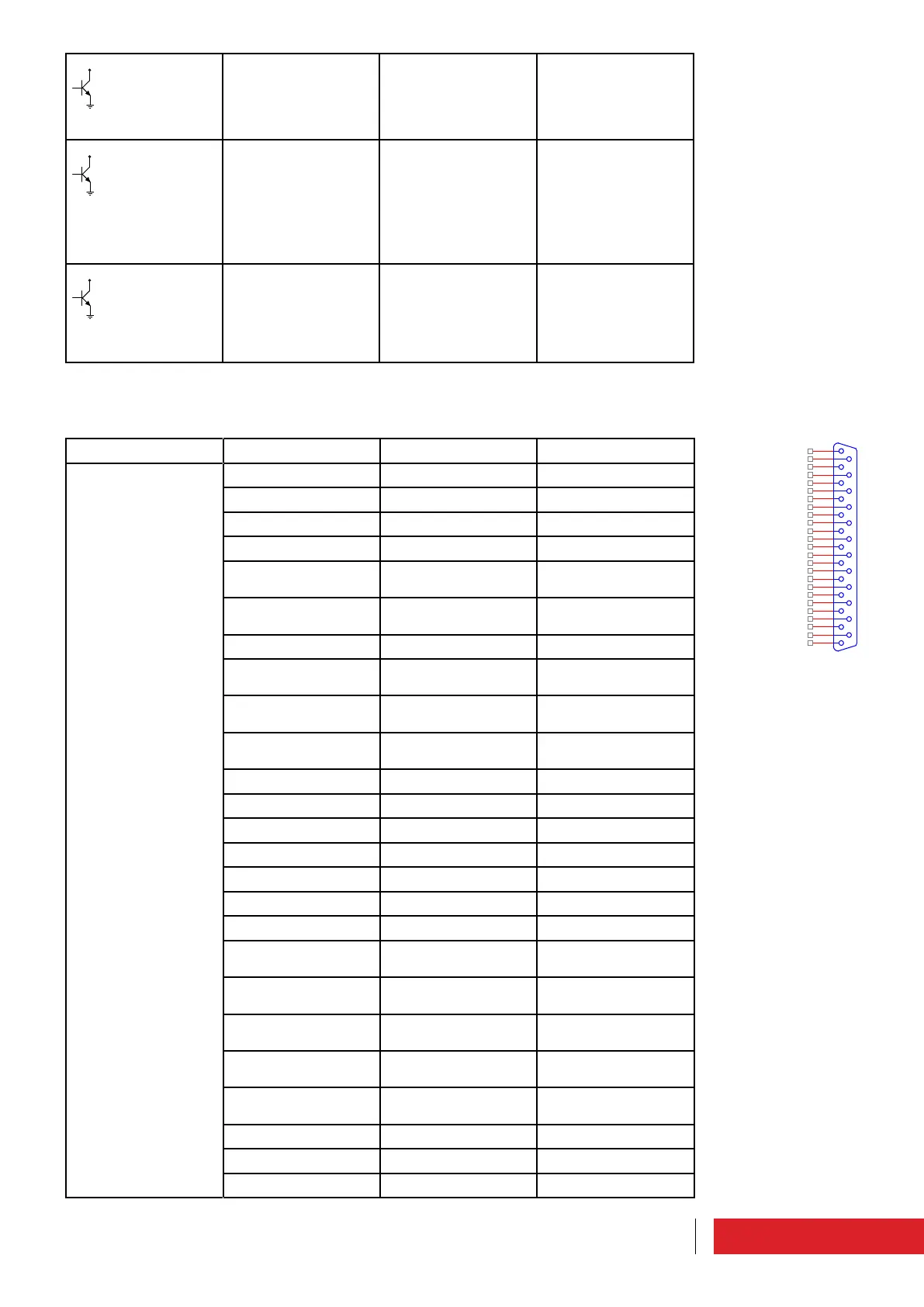

Connector Pin Meaning Notes
CN1 on TG2U2A899
board
1 Channel 1 Command pulse
2 Channel 3 Command pulse
3 Channel 5 Command pulse
4 Riserve Command pulse
5 Common ground Connected to the
frame
6 Common ground Connected to the
frame
7 - Not connected
8 Common ground Connected to the
frame
9 Common ground Connected to the
frame
10 Common ground Connected to the
frame
11 Channel 5 status Signaling output
12 Channel 3 status Signaling output
13 Channel 1 status Signaling output
14 Channel 2 Command pulse
15 Channel 4 Command pulse
16 Channel 6 Command pulse
17 - Not connected
18 Common ground Connected to the
frame
19 Common ground Connected to the
frame
20 Common ground Connected to the
frame
21 Common ground Connected to the
frame
22 Common ground Connected to the
frame
23 Channel 6 status Signaling output
24 Channel 4 status Signaling output
25 Channel 2 status Signaling output
13
25
12
24
11
23
10
22
9
21
8
20
7
19
6
18
5
17
4
16
3
15
2
14
1
Product description
2.5.1.3 PROFILES connector
