69Use instructions
3.1.2.1 TX control panel

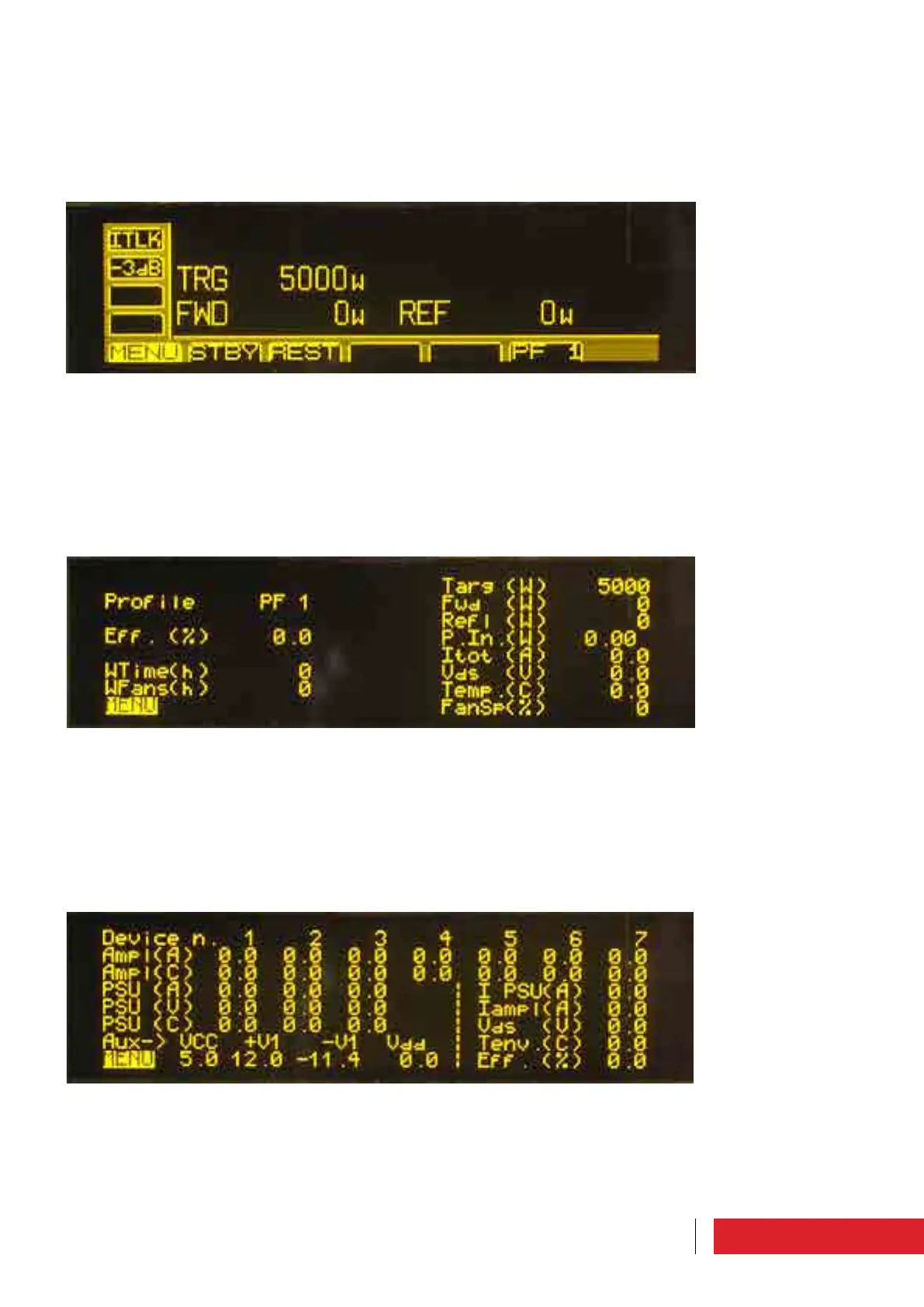

Main screen which appears automatically when turning on in LOCAL mode. It is used to
set and check the main operating parameters (target power, forward power, reflected
power, interlock led, reduction power led).
3.1.2.2 View TX parameters 1
Display only screen.
The parameters which can be monitored are as follows: number of active profile,
efficiency, transmitter working hours, fan working hours, direct power target, effective
direct power value, reflected power, driving power, current, voltage, maximum tempe-
rature and fan speed.
3.1.2.3 View TX parameters 2
Display only screen.
The parameters which can be monitored are as follows: current and temperature of the
amplifier modules, current, voltage and temperature of the power supplies, voltages of
auxiliary power supply, sum of the power supply currents, sum of the module currents,
voltage, ambient temperature and efficiency.
