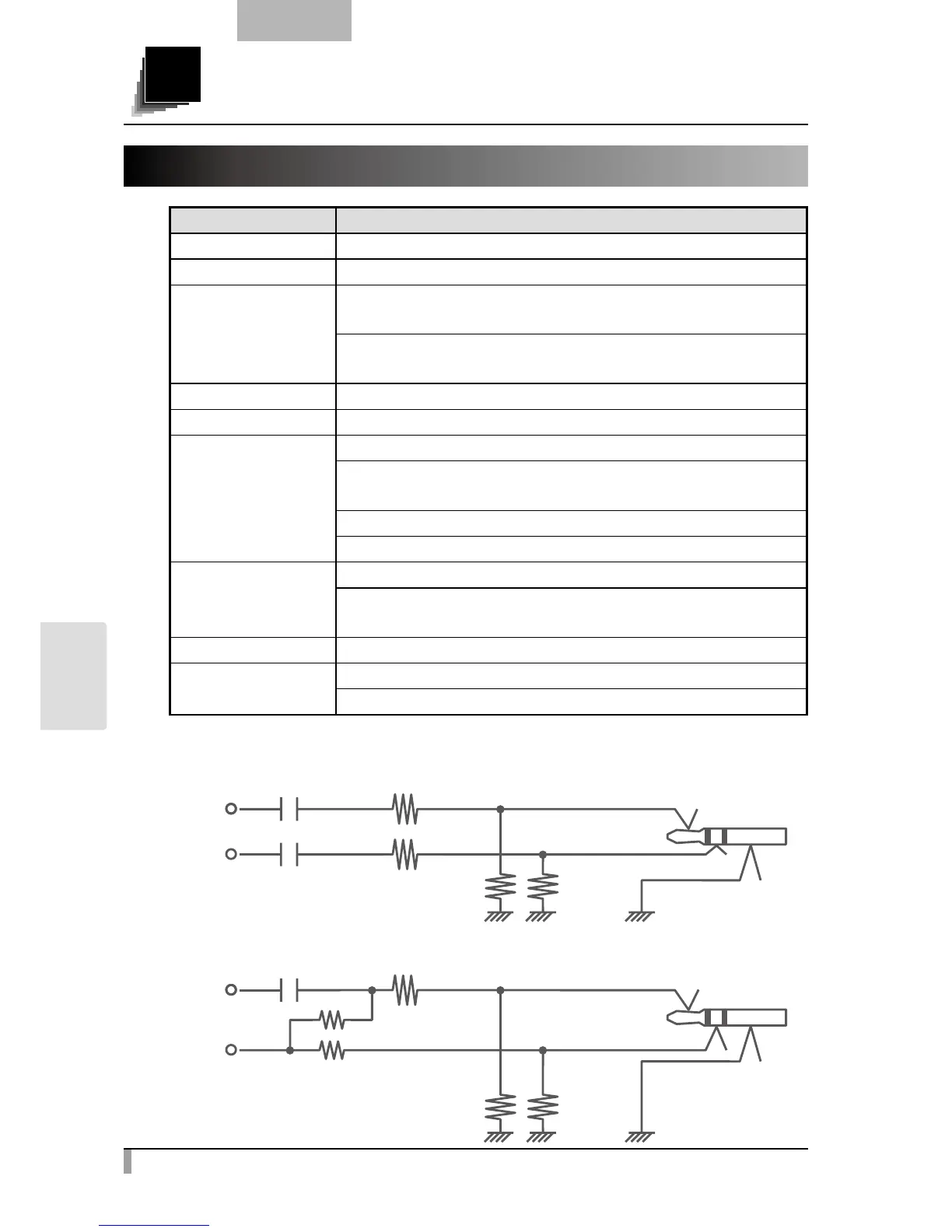

SPECIFICATIONS
5
5-1 General
Item Specifications
Power source 12VDC (AC adapter AC100 - 240V)
Power consumption 17.5W
Outside dimensions
W355 x D373.5 x H426.5mm (W14.0 x D14.7 x H16.8 in)
(When setup)
W195 x D294 x H469mm (W7.7 x D11.6 x H18.5 in)
(When folded)
Weight Approx. 3.2kg (7.1 lbs) (Main body only)
Input selection Main/External
Output terminal
RGB output Mini Dsub 15P connector, female x 1
Composite video output RCA pin jack/75
Ω
unbalanced x 1
(NTSC/PAL)
HDMI output terminal x 1
Line Out terminal
φ
3.5mm stereo minijack x 1
Input terminal
RGB input Mini Dsub 15P connector, female x 1
Mic In/Line Out terminal (shared)
φ
3.5mm stereo minijack x 1
Ext. control terminal
USB device (2.0 compliant) Mini-B receptacle x 1
Memory
Interface
SD card slot x 1
USB host (2.0 compliant) Type A receptacle x 1
※
Use pin plug for RCA pin in accordance with EIAJ RC-6703.
・
Line input
ICinput 1󱔣F 100Ω
100Ω
100KΩ 100KΩ
1󱔣F
L
R
・
External mike input
ICinput 1󱔣F 100Ω
2.3kΩ
2.2kΩ
100KΩ 100KΩ
2.5V
