iTrust Adapt UPS 20kVA User Manual
24
Chapter 3 Operation And Display Panel
Chapter 3 Operation And Display Pa n e l
This chapter introduces the functions and use of the components on the UPS operation and display panel, and
provides LCD display information, including the LCD screen types, detailed menu messages, prompt windows and
UPS alarm message list.
3.1 Introduction
The operation and display panel is located on the front door of the UPS. Through the operation and display panel,
you can conduct the UPS operation control and query all the UPS parameters, UPS and battery states, and alarm
message.
As shown in Figure 3-1, the operation and display panel provides LCD, menu buttons (F1 ~ F 4 、 H ELP ) 、 L E D
indicators (inverter indicator and fault indicator ), control buttons (FAULT CLEAR, ON, OFF, ALARM CLEAR, EPO).
LCD
Fault indicator
Menu buttons
Control buttons
Inverter indicator

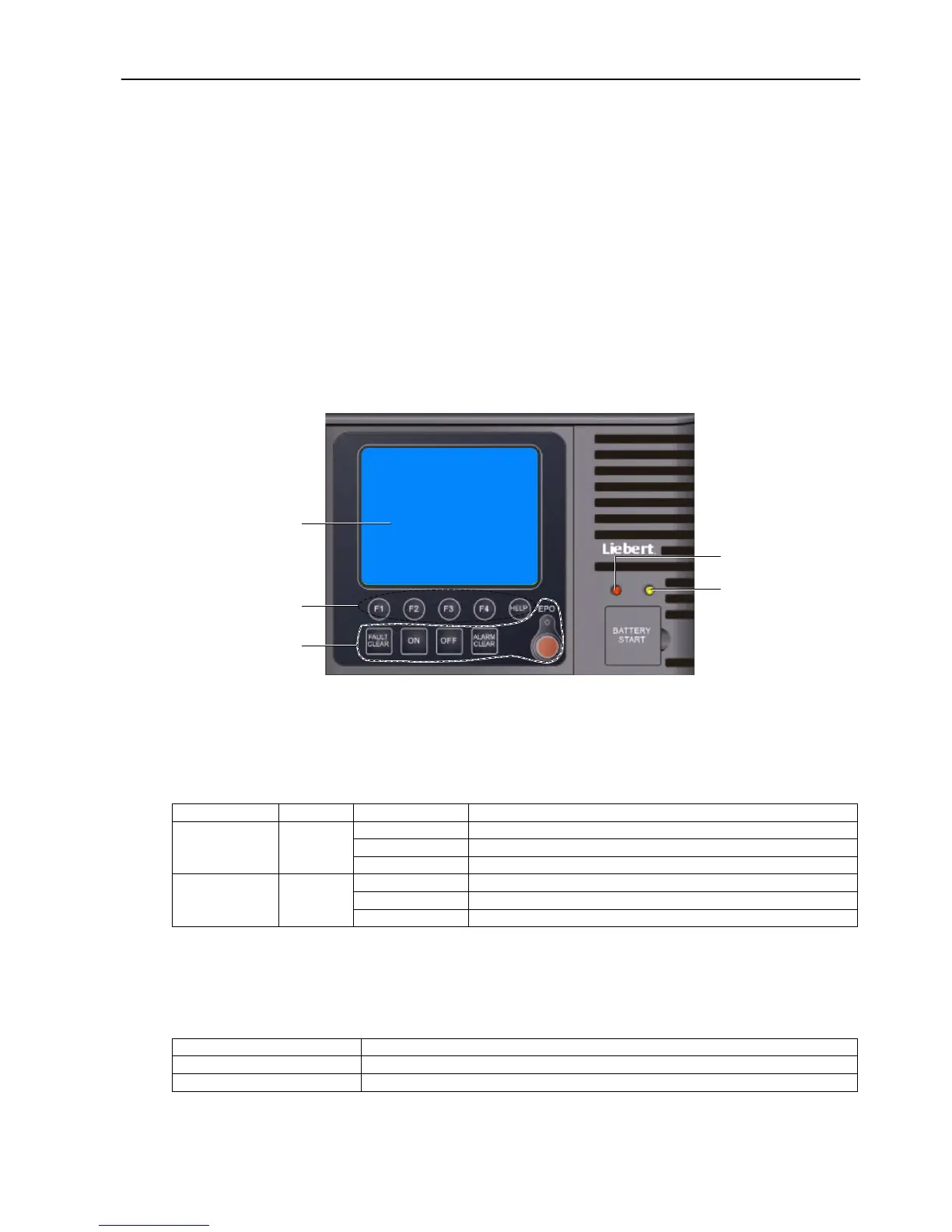

Figure 3-1 Operation and display panel
3.1.1 LED Indicators
The LED indicators are composed of inverter indicator and fault indicator. Table 3-1 gives the indicators descr i p ti on .
Table 3-1 Description of LED indicators
LED
Color
State
Meaning
Inverter indicator
Green
Steady green
Load power is supplied by the inverter
Blinking green
Inverter on, starting up, synchronizing, or standing by (ECO mode)
Off
Inverter not operating
Fault indicator
Red
Blinking red
General fault (such as no battery)
Steady red
Serious fault (such as inverter fault)
Off
No fault
3.1.2 Audible Alarm (Buzzer)
The UPS activity is accompanied with the following two different kinds of audible alarms shown in Table 3-2.
Table 3-2 Audible alarm description
Sound
Meaning
One beep every second
Sound is generated when the UPS alarm appears, such as AC input failure
Continuous beep
Sound is generated when the UPS fault appears, such as fuse or hardware failure
