Emerson AMS EZ1000 User Manual

Installation and commissioning
[20]

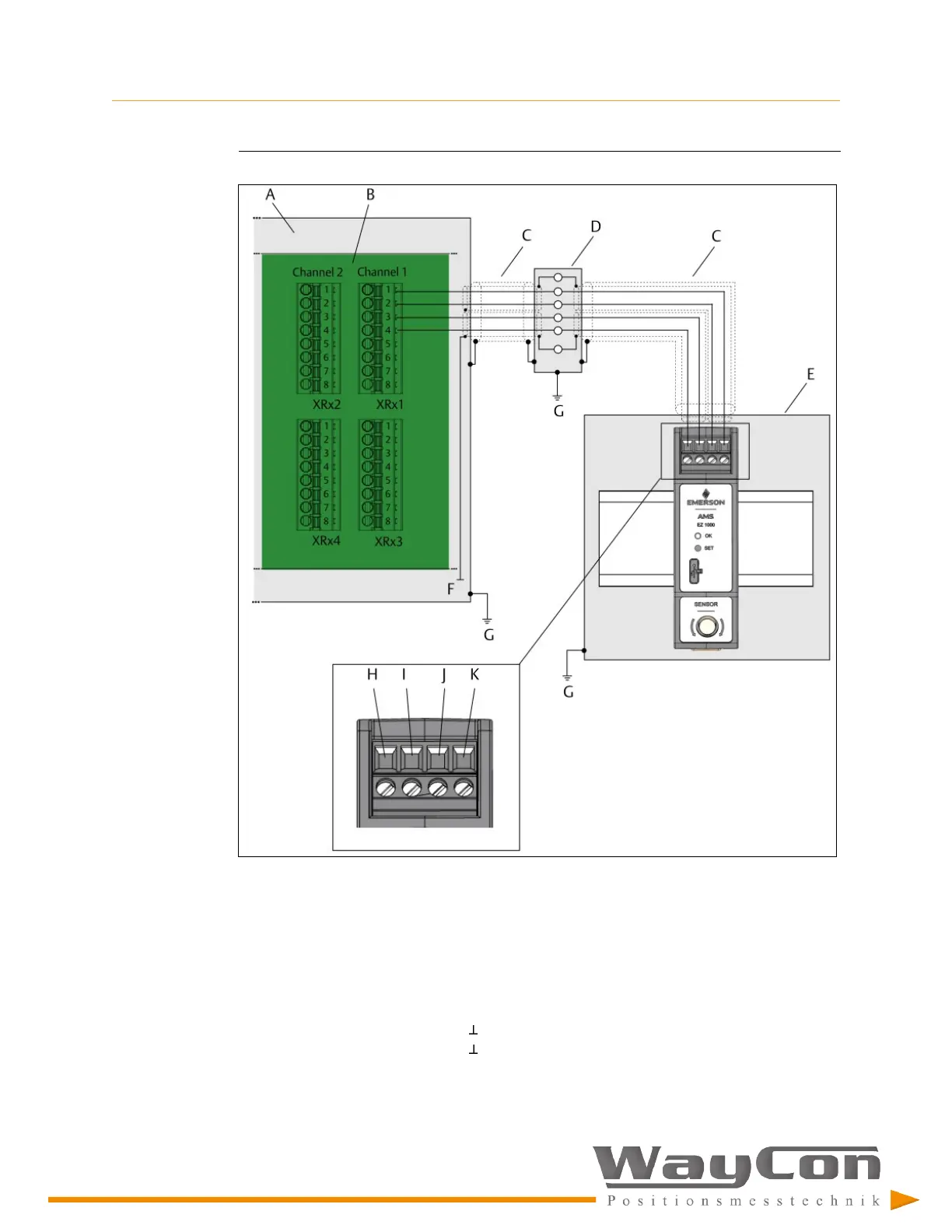

Figure 5-4: Connection example
A. Cabinet
B. Rear view of a slot of an AMS 6500 ATG backplane (x = slot number).
C. Double shielded and twisted pair cable, for example LiYCY-CY 2x2x0.25mm ²
D. Junction box
E. Field housing with EZ 1000
F. Shield earth
G. Protection earth
H. Screw terminal for power supply: -24 V
I. Screw terminal for power supply: (GND)
J. Screw terminal for output signal: (GND)
K. Screw terminal for output signal: Out
