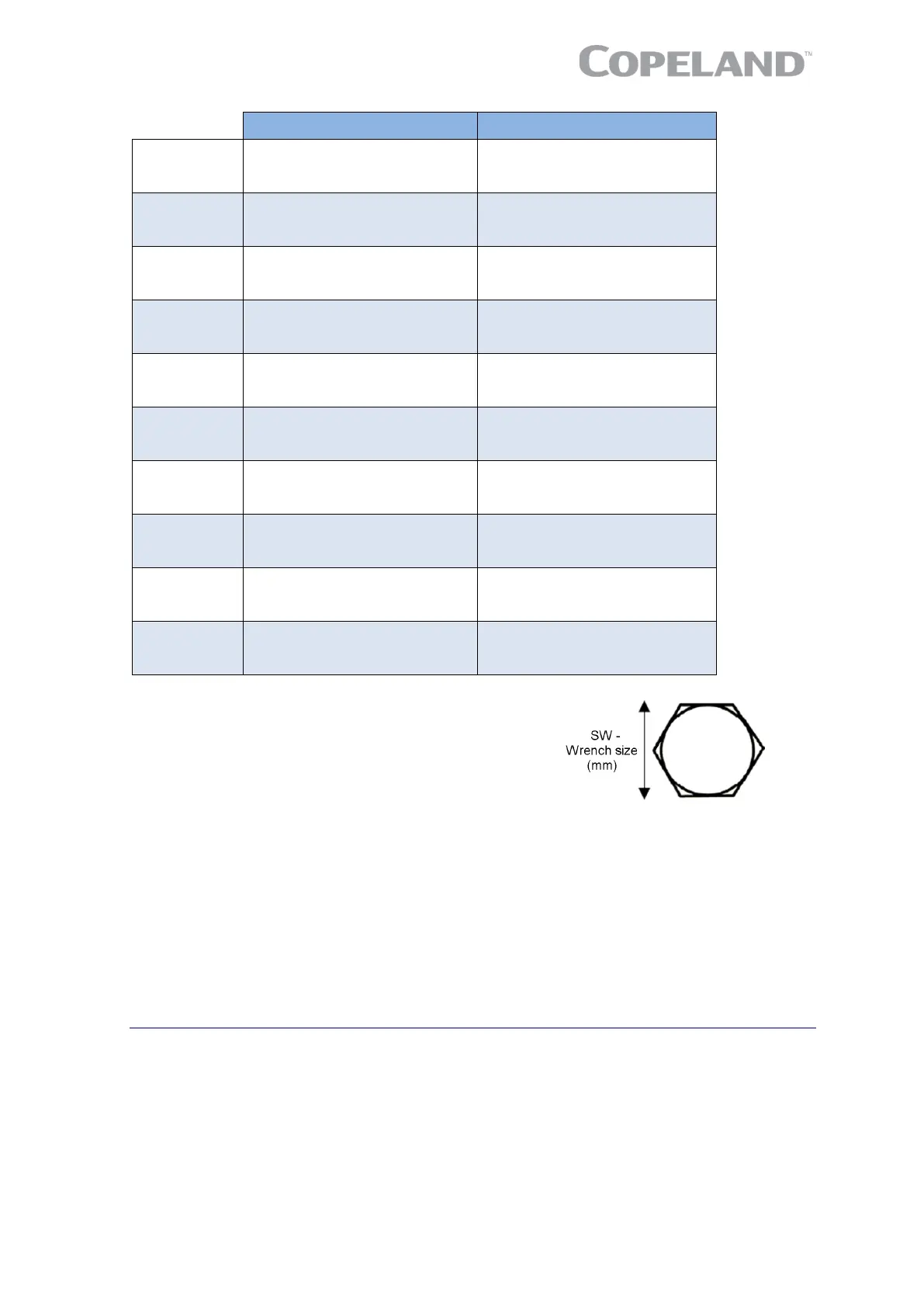

AGL_HA_ST_Discus_A2L_A1_EN_Rev00 37
2D* & 3D* 8D*
Magnetic
plug
26 - 32 Nm
87 - 149 Nm
Cylinder head
57 - 68 Nm
57 - 68 Nm
Bottom plate
57 - 68 Nm
57 - 68 Nm
Mounting foot
57 - 68 Nm
57 - 68 Nm
Stator cover
57 - 68 Nm
68 - 79 Nm
Housing cover
57 - 68 Nm
57 - 68 Nm
Mounting plate
for terminals
32 - 40 Nm
57 - 68 Nm
Terminal stud
5 - 6.5 Nm
5 - 6.5 Nm
Terminal stud
thermistors
3.4 - 4 Nm
3.4 - 4 Nm
connecting
2)
15 - 18 Nm
15 - 18 Nm
2)
In case of replacement of the piston con-rod assemblies, clean the Torx screws and apply Loctite 2701.
The ranges of torque values given in this specification are
assembly torque. Torque after joint relaxation must be within
15 % of the minimum assembly torque unless re-torque is
called for and must not be above 10 % of the maximum
assembly torque.
DISCLAIMER
1. The contents of this publication are presented for informational purposes only and are not to be
construed as warranties or guarantees, express or implied, regarding the products or services
described herein or their use or applicability.
2. Emerson Climate Technologies GmbH and/or its affiliates (collectively "Emerson"), as applicable,
reserve the right to modify the design or specifications of such products at any time without notice.
3. Emerson does not assume responsibility for the selection, use or maintenance of any product.
Responsibility for proper selection, use and maintenance of any Emerson product remains solely
with the purchaser or end user.
4. Emerson does not assume responsibility for possible typographic errors contained in this
publication.
