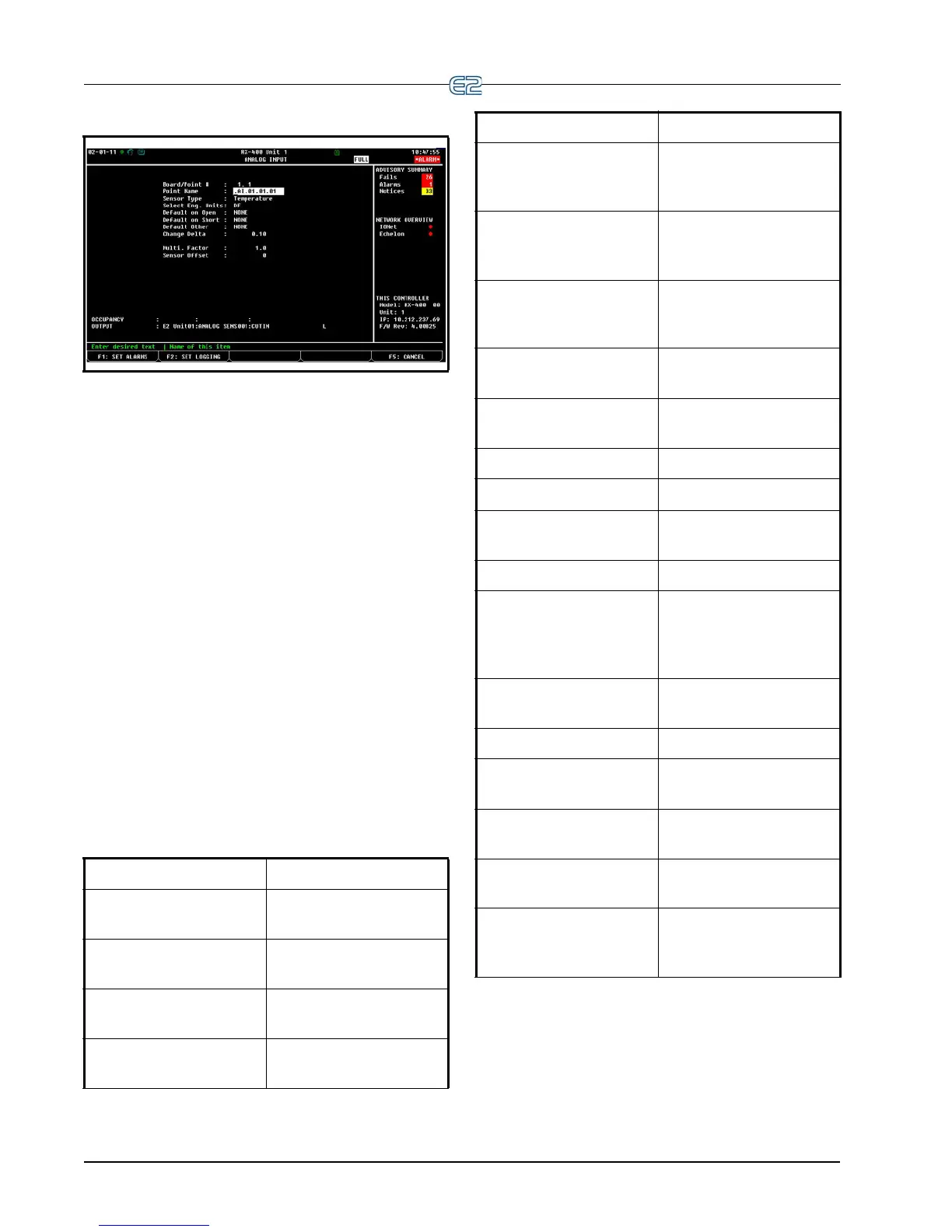

Figure 9-6 - Analog Input Screen
9-8 • E2 RX/BX/CX I&O Manual 026-1614 Rev 4 5-JAN-2013
Board/Point # The Board/Point number will auto-
matically be defined if you are configuring the point
from
the Input Status screen, and indicates the physi-
cal address of the board.
Point Name The Point Name is simply a name for
the point
that may be used as a reference.
Assigning a descriptive name to a point makes set-
ting up inputs for applications much easier. For
exam
ple, if you have an inside temperature sensor
located in Zone 1 of your building, you may name it
“ZONE 1 TEMP”. Then, when programming your
HVAC applications, you may easily define Zone 1’s
temperature sensor input by tying it to ZONE 1
TEMP. This keeps you from having to keep track of
which sensors are tied to which point numbers.
You are required to enter a point name in the Point
Name field. The default name is “:{BOARD
NAME}:{UNIT NUMBER}:{BOARD NUM-
BER}:{POINT NUMBER}.”
Sensor Type The analog input may come from a
num
ber of different sensor types.
Sensor Type Description
Temperature Emerson Retail Solutions
S
tandard Temp Sensor
5V-100 PSI 5VDC 100 PSI transducer
(0
.5-4.5VDC output)
5V-200 PSI 5VDC 200 PSI transducer
(0
.5-4.5VDC output)
5V-500 PSI 5VDC 500 PSI transducer
(0
.5-4.5VDC output)
Table 9-2
- Sensor Input Types
12V-100 PSI 12VDC 100 PSI trans-
ducer (1-6VDC output)
(Discont
inued)
12V-200 PSI 12VDC 200 PSI trans-
ducer (1-6VDC output)
(Discont
inued)
12V-500 PSI 12VDC 500 PSI trans-
ducer (1-6VDC output)
(Discont
inued)
Refrig. Leak Refrigerant Leak Detector
(not IRLD
S)
Refrig. Level Refrigerant Liquid Level
Prob
e
Liquid Level Liquid Level Float Sensor
Light Level Light Level Sensor
Linear General purpose linear
o
utput sensor
Humidity Relative Humidity sensor
Pulse Accum. Kilowatt value from KW
transducer pulse accumu-
lation readings (see Units
Per Pulse on page 9-9)
KW Transducer Kilowatt transducer using
4-20m
a/0-5V signal
Dewpoint Dewpoint probe
LM235 Temp Linear voltage output
temperature sensor
PT2 Temp Danfoss PT2 temperature
sensor
CDK Temp CDK 2097MC tempera-
ture sensor
20K Pot Adjust Standard temperature sen-
sor with offset adjust-
ment (potentiometer)
Sensor Type Description
T
able 9-2 - Sensor Input Types
