10-6 • E2 RX/BX/CX I&O Manual 026-1614 Rev 4 5-JAN-2013
10.7.3 The Actions Menu

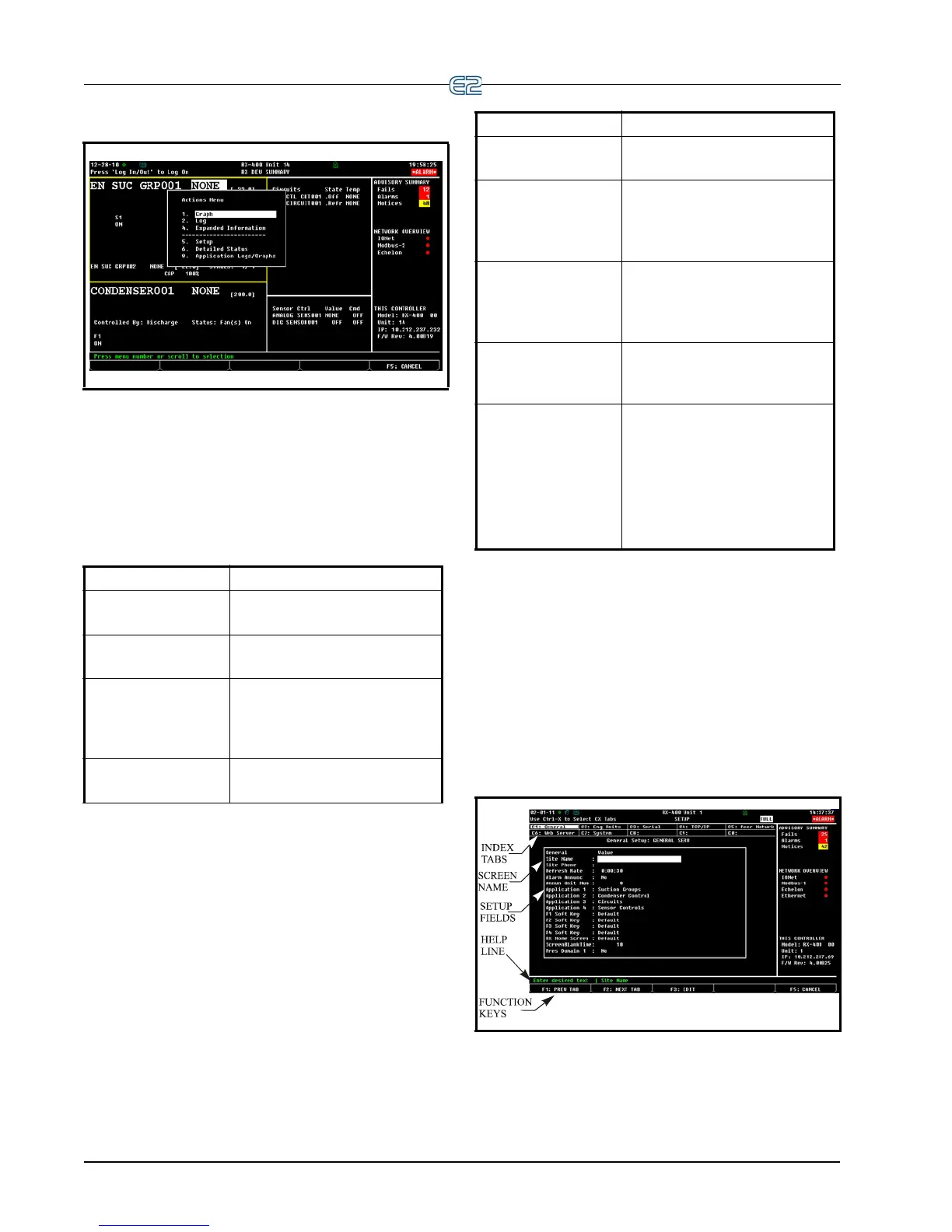

Figure 10-10 - The Actions Menu
The Actions Menu is available from any status screen
by pressing Enter
, and may be used to do just about
any task in the E2 system software. This screen lists a
number of options that can be used to affect a selected
field, an entire application, or the E2 in general.
Table 10-3
- Actions Menu Options and Descriptions
Actions Menu Item Description
Graph Opens graph view for the selected
valu
e.
Log Opens the Log screen of the
s
elected value.
Override Opens the Override Update win-
dow where the selected input or
output can be overridden
to a
user-defined value or state.
Expanded Information Displays detailed information
about the selected
value.
Setup Opens the setup screen for the
selected value.
Detailed Status Special status screen that shows
detai
led setpoints and input/out-
put information with complete
s
ummary of inputs, outputs.
Manual Defrost For circuits only.
Opens the Cir-
cuit Bypass screen to force a man-
ual or emergency defrost, or wash
m
ode.
Application Com-
mands
Allows Service Start/End for Irri-
gation and Pulse Accumulation
appl
ications.
Applications Logs/
Gr
aphs
• Opens various log and
graph screens for Anti-
sweat and Pulse Accumu-
lation applications.
• Opens the Circuit Report
scr
een for standard circuits
only.
One of the more important features of
the Actions
Menu is the Setup screen
 (Setup). The actual setup
screen will vary, depending on where the cursor is placed
in the Main Status (Home) screen before
 is pressed.
This is the easiest way to edit an existing application.
For more information on usage
of the Setup screen and
how to implement its functions, see Section 12.11.1.2,
Setup Screens.
10.7.4 The Setup Screens
Figure 10-11 - Typical Setup Screen
Setup screens are the interface used to change settings
and setpoints, and define inputs and outputs in the E2.
Figure 10-11 shows a typical Setup screen and its primary
Actions Menu Item Description
Table 10-3 - Actions Menu Options and Descriptions
