Model D and DT Sensors Instruction Manual 27
Wiring continued
Power supply wiring to the
integral booster amplifier
Provide 85-250 VAC power to terminals L2 and L1 as shown in the
diagram below.
This unit is provided with an external terminal for supplementary
bonding connections. This terminal is for use where local codes or
authorities permit or require such connections.

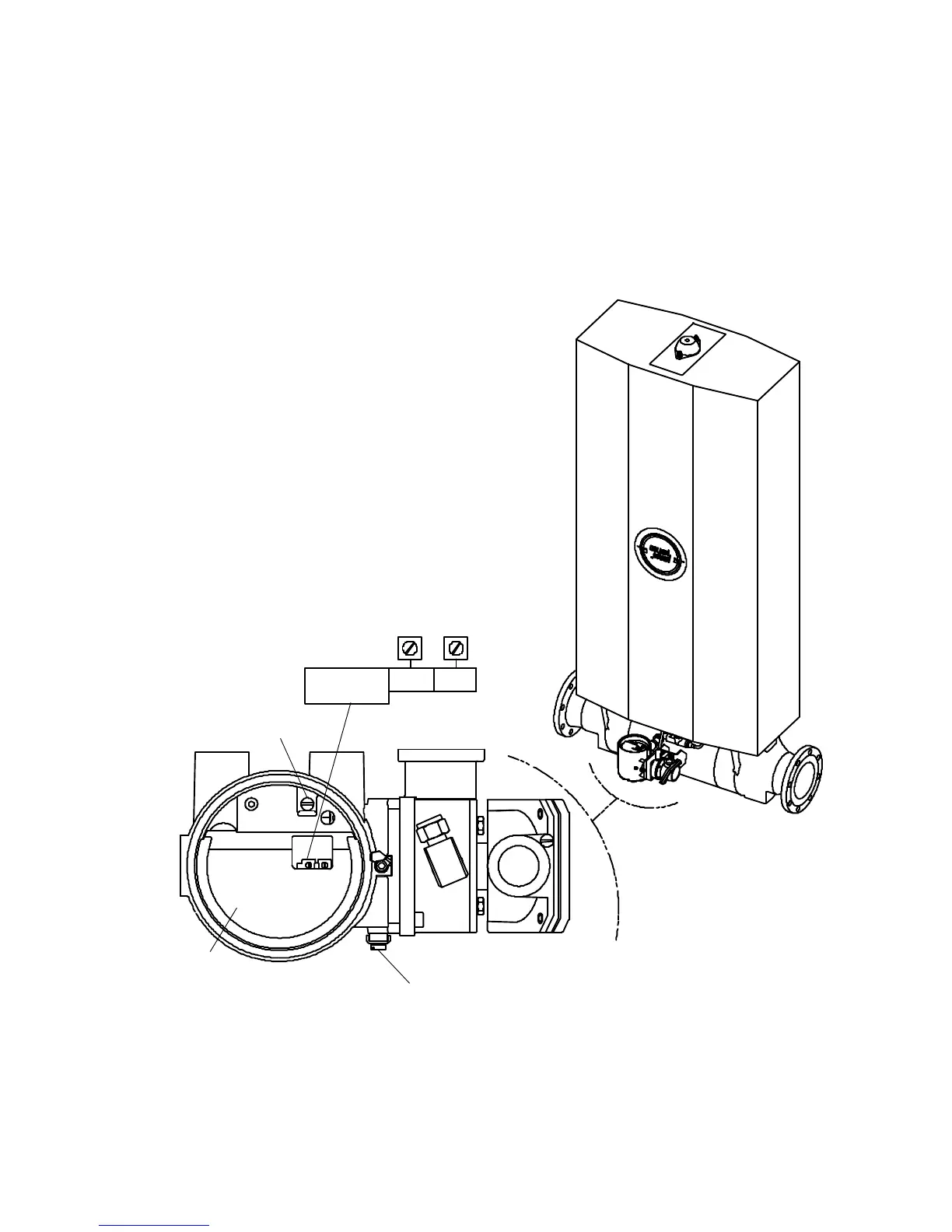

Integral booster amplifier power-supply wiring
85-250 VAC
50/60 Hz
N/L2 L/L1
Power supply
ground
Wiring
compartment
Supplementary bonding connection
