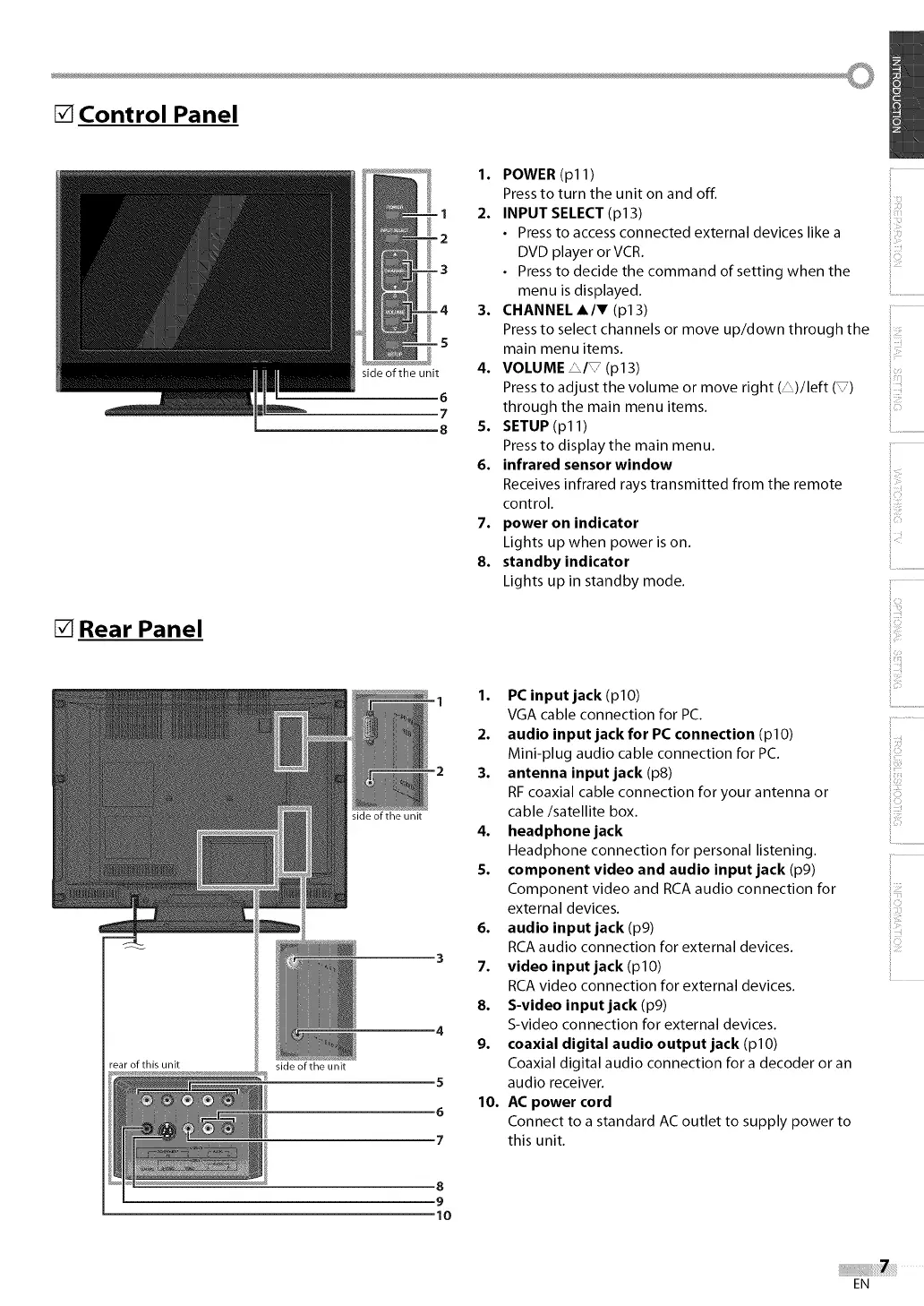

[] Control Panel
[] Rear Panel
rear of this unit
side of the unit
1
2
3
4
5
side of the unit
6
7
,8
-2
sideof the unit
,5
,6
7
1. POWER (p11)
Press to turn the unit on and off.
2. INPUT SELECT (p13)
• Press to access connected external devices like a
DVD player orVCR.
• Press to decide the command of setting when the
menu is displayed.
3. CHANNEL A/V (p13)
Press to select channels or move up/down through the
main menu items.
4. VOLUME _/_ (p13)
Press to adjust the volume or move right (_)/left (_)
through the main menu items.
5. SETUP (p11)
Press to display the main menu.
6. infrared sensor window
Receives infrared rays transmitted from the remote
control.
7. power on indicator
Lights up when power is on.
8. standby indicator
Lights up in standby mode.
1. PC input jack (plO)
VGA cable connection for PC.
2. audio input jack for PC connection (plO)
Mini-plug audio cable connection for PC.
3. antenna input jack(p8)
RF coaxial cable connection for your antenna or
cable/satellite box.
4. headphone jack
Headphone connection for personal listening.
5. component video and audio input jack (pg)
Component video and RCA audio connection for
external devices.
6. audio input jack(pg)
RCA audio connection for external devices.
7. video input jack (plO)
RCA video connection for external devices.
8. S-video input jack(pg)
S-video connection for external devices.
9. coaxial digital audio output jack (plO)
Coaxial digital audio connection for a decoder or an
audio receiver.
10. AC power cord
Connect to a standard AC outlet to supply power to
this unit.
ii:_?i
ii{ii/_
iiii'!:i
............................
i.............
i :z!
iii!iii
,8
9
10
