Section
7
-
Drum
Sound
Programming
SQ-R
Musician's
Manual
Output
Bus/VelCurv
Output
Bank
Output
Bus

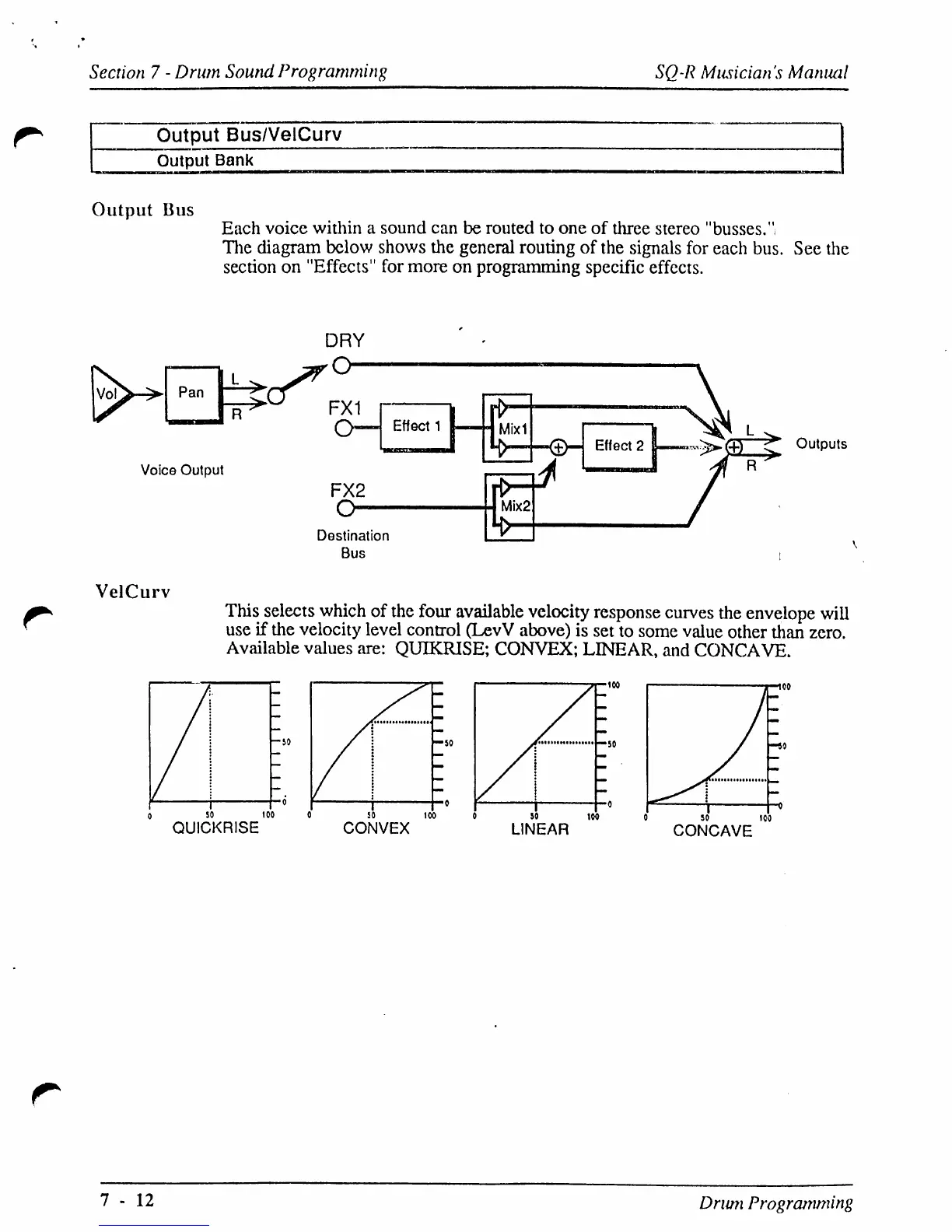

Each
voice
within
a
sound
can
be
routed
to
one
of
three
stereo
"busses.''
The
diagram
below
shows
the
general
routing
of
the
signals
for
each
bus.
See
the
section
on
"Effects"
for
more
on
programming
specific
effects.
Voice
Output
Destination
Bus
Outputs
VelCurv
This
selects
which
of
the
four
available
velocity
response
curves
the
envelope
will
use
if
the
velocity
level
control
(LevV
above)
is
set
to
some
value
other
than
zero.
Available
values
are:
QUIKRISE;
CONVEX;
LINEAR,
and
CONCAVE.
-so
0
SO
100
QUICKRISE
SO
100
CONVEX
50
100
LINEAR
CONCAVE
7
-
12
Drum
Programming
119
