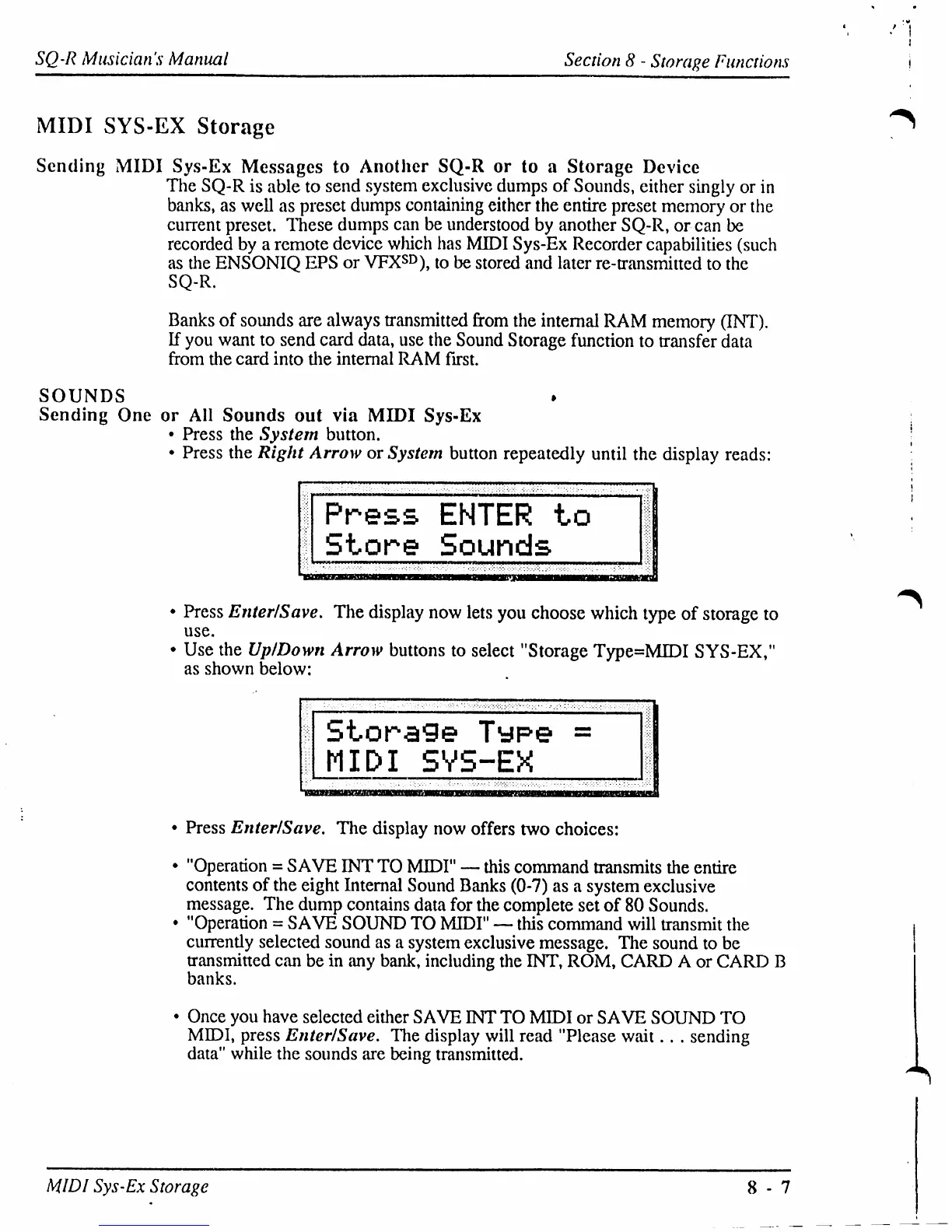

ENSONIQ SQ-R User Manual

SQ-R Musician's Manual
Section 8 - Storage Functions
MIDI SYS-EX Storage
Sending MIDI Sys-Ex Messages to Another SQ-R or to a Storage Device
The SQ-R is able to send system exclusive dumps of Sounds, either singly or in
banks, as well as preset dumps containing either the entire preset memory or the
current preset. These dumps can be understood by another SQ-R, or can be
recorded by a remote device which has MIDI Sys-Ex Recorder capabilities (such
as the ENSONIQ EPS or VFXSD), to be stored and later re-transmitted to the
SQ-R.
Banks of sounds are always transmitted from the internal RAM memory (INT).
If you want to send card data, use the Sound Storage function to transfer data
from the card into the internal RAM first.
SOUNDS
Sending One or All Sounds out via MIDI Sys-Ex
• Press the System button.
• Press the Right Arrow or System button repeatedly until the display reads:
Press ENTER to
Store Sounds
Press Enter/Save. The display now lets you choose which type of storage to
use.
Use the Up/Down Arrow buttons to select "Storage Type=MIDI SYS-EX,"
as shown below:
Stora9e Type =
MIDI 5VS-EX
Press Enter/Save. The display now offers two choices:
"Operation = SAVE INT TO MIDI" — this command transmits the entire
contents of the eight Internal Sound Banks (0-7) as a system exclusive
message. The dump contains data for the complete set of 80 Sounds.
"Operation = SAVE SOUND TO MIDI" —- this command will transmit the
currently selected sound as a system exclusive message. The sound to be
transmitted can be in any bank, including the INT, ROM, CARD A or CARD B
banks.
Once you have selected either SAVE INT TO MIDI or SAVE SOUND TO
MIDI, press Enter/Save. The display will read "Please wait. . . sending
data" while the sounds are being transmitted.
MIDI Sys-Ex Storage
8 - 7
